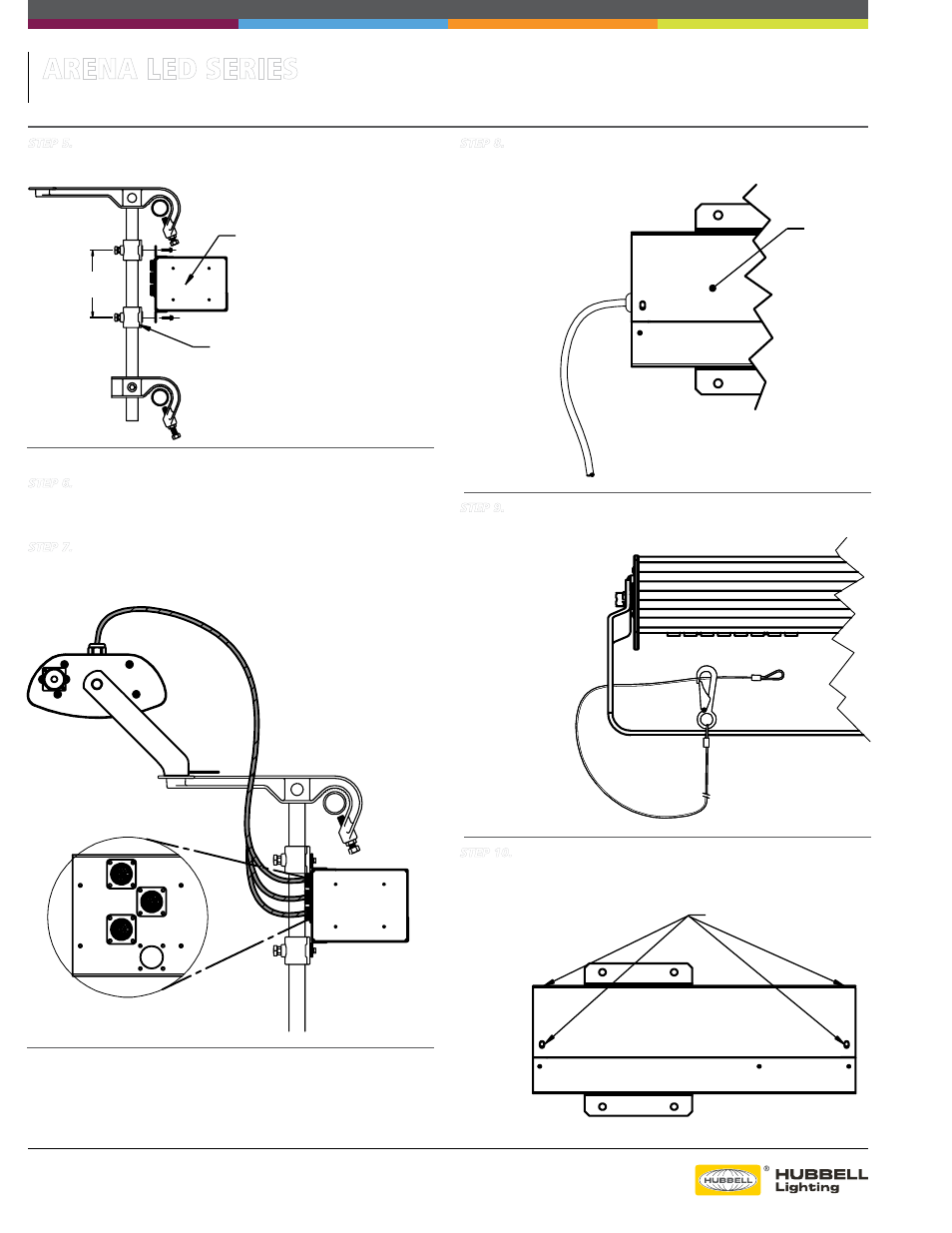

STEP 5.

Position driver box over (2) sets of cast brackets as shown vertical

hole spacing is 7.5” from hole center to center.

STEP 6.

Attach driver housing to cast driver brackets using

⁄

-20 hex bolt,

split washer and flat washer into tapped holes of cast bracket.

STEP 7.

Connect (3) power cables from fixture to the connectors on
back of the driver box.

STEP 8.

Connect to power source either by direct connect or supplied plug.

STEP 9.

Install safety cable to positive catwalk structure.

Remove all slack if possible.

STEP 10.

Drivers are accessible by removing (4) screws,
(2) on top and (2) on front.

DRIVER

HOUSING

CAST

DRIVER

BRACKET

7.5”

FIG. 5

FIG. 6

DRIVER

HOUSING

FIG. 7

FIG. 8

FIG. 9

SCREWS

ARENA LED SERIES

INSTALLATION INSTRUCTIONS
