Page 11

Rev. 1.14
- 11 -
SRP-770II
3-2 Interface Cable Connection

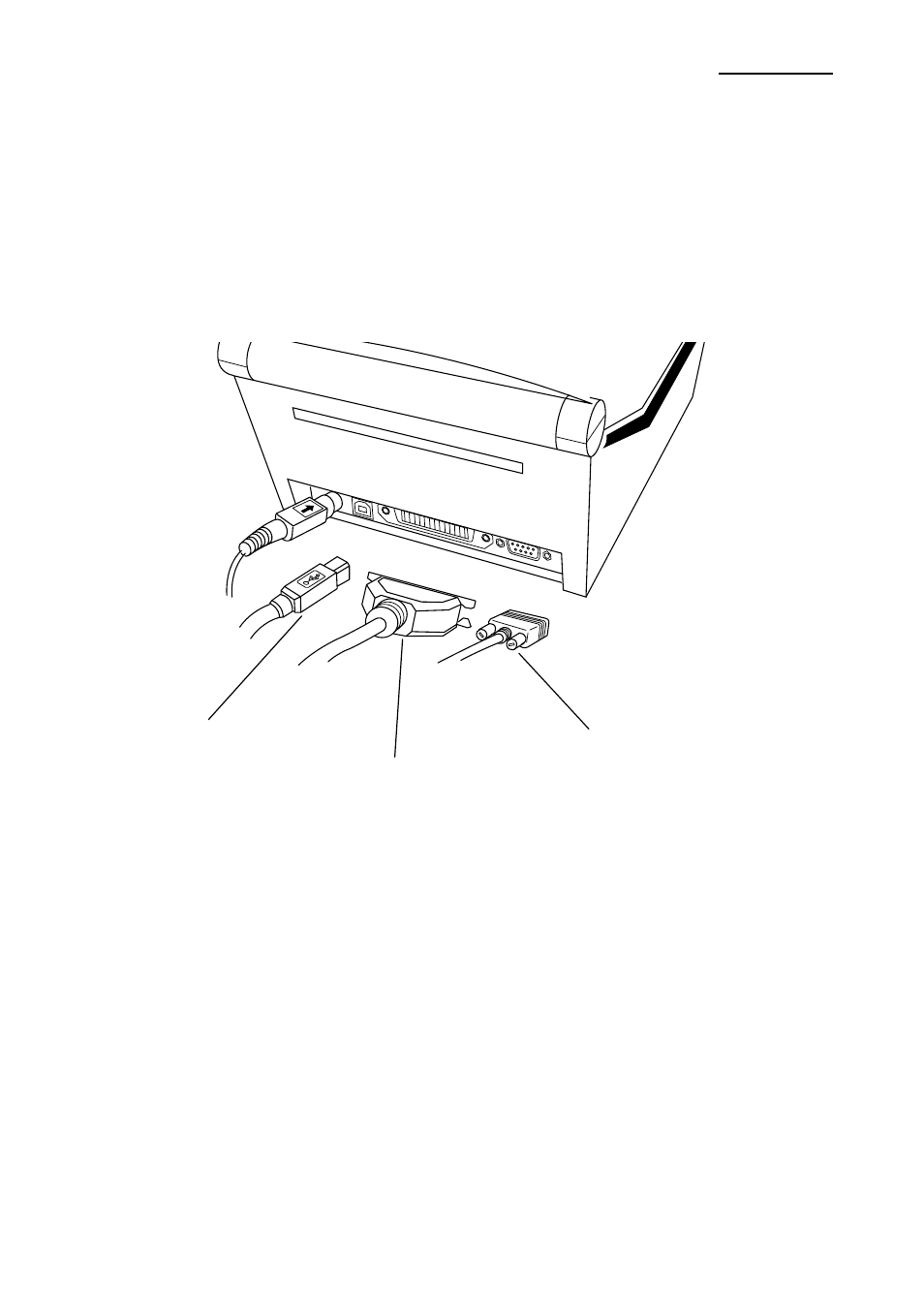

Connect the interface cable as shown below.
This printer supports the following communications interface standards.
-
RS-232C
(Serial)
-
IEEE1284
(Parallel)
-
USB
1) Turn off the power switch.
2) Connect the interface cable to the printer interface connector.
- For a Serial cable, secure by tightening the screws on both sides.
- For a Parallel cable, secure by fastening the clips on both sides.
USB Cable
RS-232 (Serial) Cable
IEEE1284 (Parallel) Cable
