P:\INSTALLATION INST\Power Supplies\INST-634RF-230V Model.vsd Rev G 04-13
REGULATED POWER SUPPLY
INSTALLATION INSTRUCTIONS
MODEL 634RF
(230V Model)
801 Avenida Acaso, Camarillo, Ca. 93012
(805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]
POWER SUPPLY SPECIFICATIONS
Input Voltage: 230 VAC @ 60hz
Input Current: 1.2 amps Max.
Output Voltage: 12/24VDC (Regulated)
Output Current: 4 amps
Ripple Voltage: 0.05 Volts Max.
Battery Charger Max. Current: 0.35 amps
Maximum recommended battery size: 7ah
Recommended Battery: SDC Model RB12V7
(Replace batteries every 3 years)
Suitable Uses:
Electric Lock Power Supply
Access Control Power Supply
TEST UNIT ANNUALLY

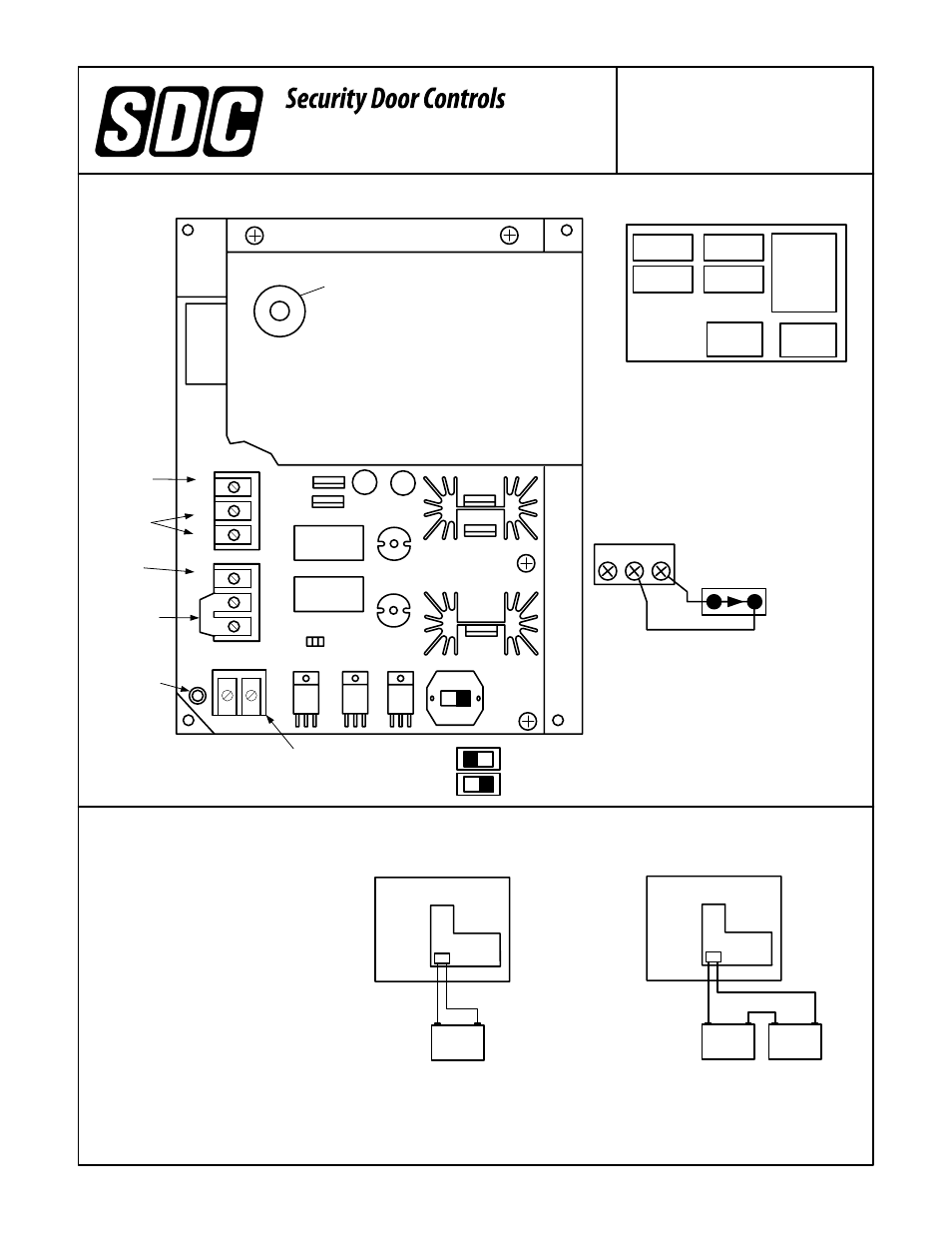

COMPONENT LOCATIONS
CONTROL
MODULE
CONTROL
MODULE
POWER
SUPPLY
BOARD
CONTROL
MODULE
CONTROL
MODULE
STANDARD BOX
BATTERY 1
7ah
BATTERY 2
7ah
MAIN SYSTEM ON-OFF
Min. Switch or
Contact Ratings
100mA @ 30VDC
+
_
C
Master ON/OFF
Switch (N/C)
+
_
SWITCH SET
FOR
24VDC
12VDC
+
_
12VDC
+
_
24 Volt
Mode
Battery
Connections
12VDC
+
_
+
_
SWITCH SET
FOR
12VDC 12 Volt
Mode
Battery
Connections
MODEL 634RF
(230V MODEL)
AC INPUT
CIRCUIT
BREAKER
AC INPUT
GRN = GROUND
WHT = NEUTRAL
BLK = HOT
BATTERY INPUT
TERMINALS
2A
+
2A
+
2A
+
MAIN
+
_
C
CLASS 2
OUTPUTS
4 AMP
OUTPUT
AUXILIARY
RELAY
CONNECTION
+ BATTERY -
SYSTEM
STATUS
LED
LED STATUS LEGEND
YEL = SYSTEM OK
RED = NO AC INPUT
GRN = NO DC OUTPUT
VOLTAGE
SELECT
24V 12V
VOLTAGE SELECTION NOTE:
POWER MUST BE TURNED OFF
BEFORE CHANGING VOLTAGE.
12V POSITION
24V POSITION
MANUAL
RESET
NOT
USED
