NoZone® Ozone Scrubber — USER GUIDE
Version 1.0a, May 2012 (408) 733-7337, [email protected] 5
III. USING YOUR NOZONE® OZONE SCRUBBER
A. Theory of Operation
The NoZone Ozone Scrubber is designed to destroy ambient ozone levels at a flow
rate of 70 SCFM. Ambient air containing ozone enters the instrument and is destroyed
with proprietary media. Internal fans propel the air through the unit. Ozone-free air is
expelled out the opposite side. The scrubber should be used in conjunction with an
enclosure available from SciGene:
• NoZone WS Enclosure (cat. #1090-13-0)
• NoZone TL Enclosure (cat. #1090-11-0)
• NoZone GP Enclosure (cat. #1090-12-0)
See Section XIII Compatible Enclosures for details.

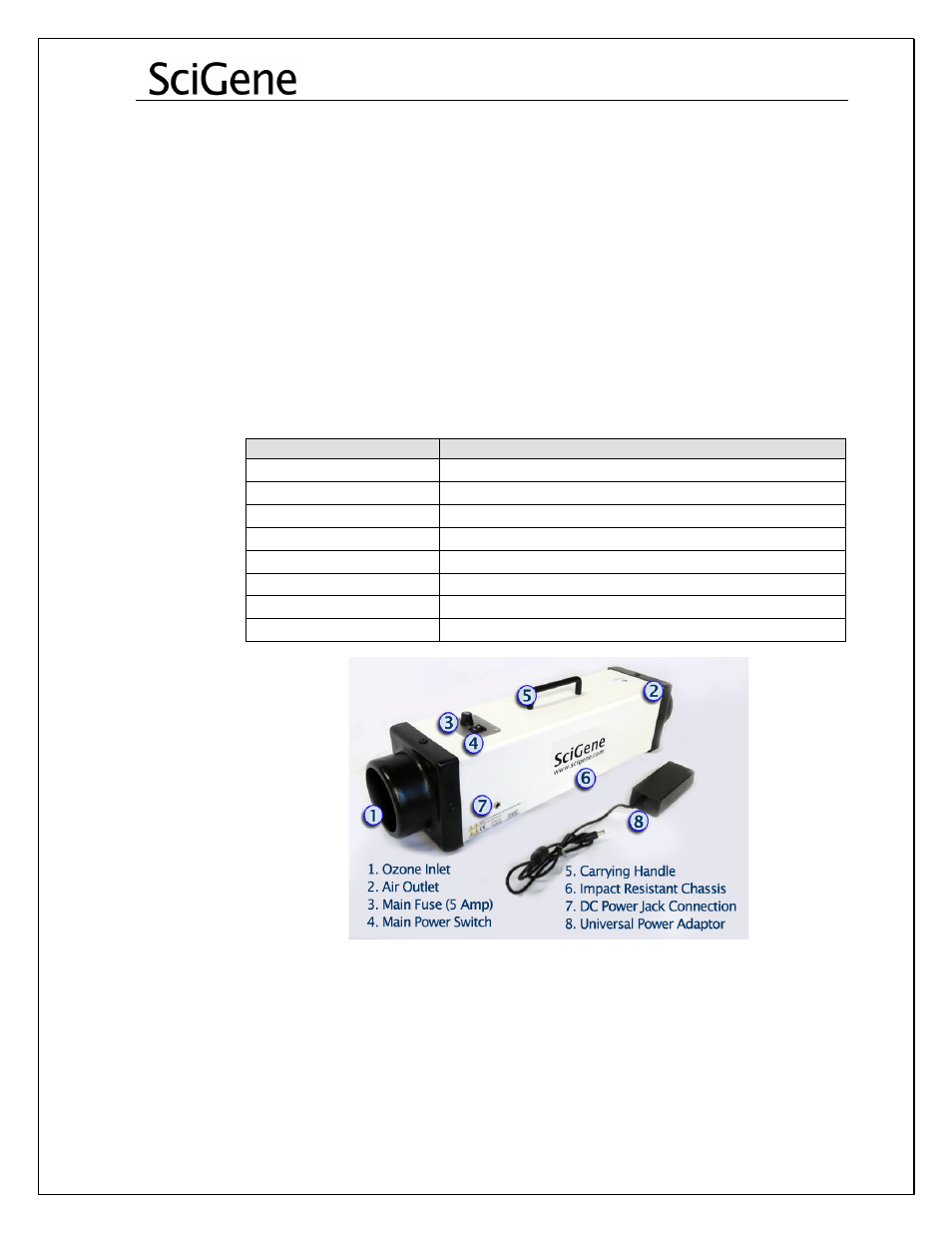

B. Components
Name Function
Ozone Inlet Air flow entry, needs to be kept free from dust and moisture
Air Outlet Air flow exit for ozone-free air, connects to enclosure ducting
Main Fuse Electrical fuse for the instrument, can be replaced by the user
Main Power Switch Turns the instrument ON/OFF
Carrying Handle Convenient grip for carrying the instrument
Impact Resistant Chassis Protective cover, not to be removed by the user
DC Power Jack Connection Connects to power cord
Universal Power Adaptor Connects to US, UK or Euro-style plug
C. Operation
Plug the unit into the DC power adaptor provided and into a grounded electrical
source of sufficient voltage. Connect the DC power adaptor to the side of the
scrubber. Push the main power switch to the ON position. Air will be drawn into the
ozone inlet and expelled at the air outlet. The user should be able to feel air flowing
from the unit.
