Schwank patioSchwank 1100 - Manual (Page 10)

Page 10
SP-M110-CX-05B
1100 Manual
R.D.: March 2006
R.L.: 5B
KH

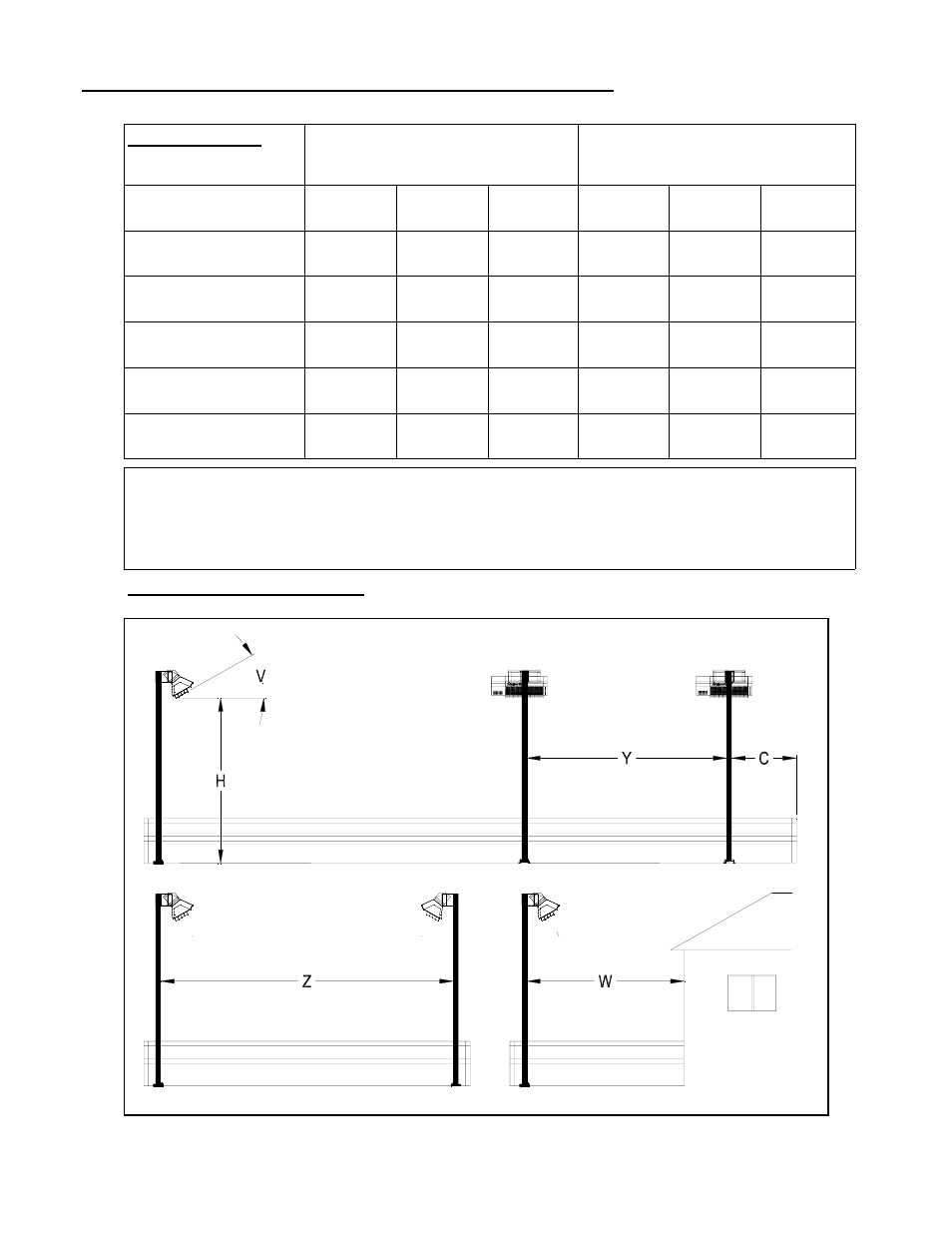

8.5 SUGGESTED MOUNTING DISTANCES FOR COMFORT**
Table 4: Mounting
Parameters ***
MODEL 1110 MODEL 1115
V—Mounting angle Horizontal 15 0 30 0 Horizontal 15 0 30 0
H—Mounting height
to patio floor
11’ 0” 10’ 0” 10’ 0” 12’ 0” 12’ 6” 12’ 6”
C—Side distance to
patio edge
5’ 0” 4’ 6” 4’ 6” 6’ 6” 6’ 0” 6’ 0”
Y—Side distance
between heaters
10’ 0” 9’ 0” 9’ 0” 13’ 0” 12’ 0” 12’ 0”
W—Distance to wall
in front
6’ 0” 8’ 0” 10’ 0” 8’ 0” 10’ 0” 12’ 0”
Z—Distance to heater
in front
16’ 0” 18’ 0” 20’ 0” 18’ 0” 20’ 0” 24’ 0”
*** Note: These mounting distances are suggested, and are subject to on site conditions.
If in doubt, please contact Schwank or your Schwank distributor.
** Note: For mounting parameters for models 1120 & 1130 contact Schwank.
Diagram 5: Mounting Distances
