InfraSave IEP-1520 Manual
Heat Lamp Replacement : … continued

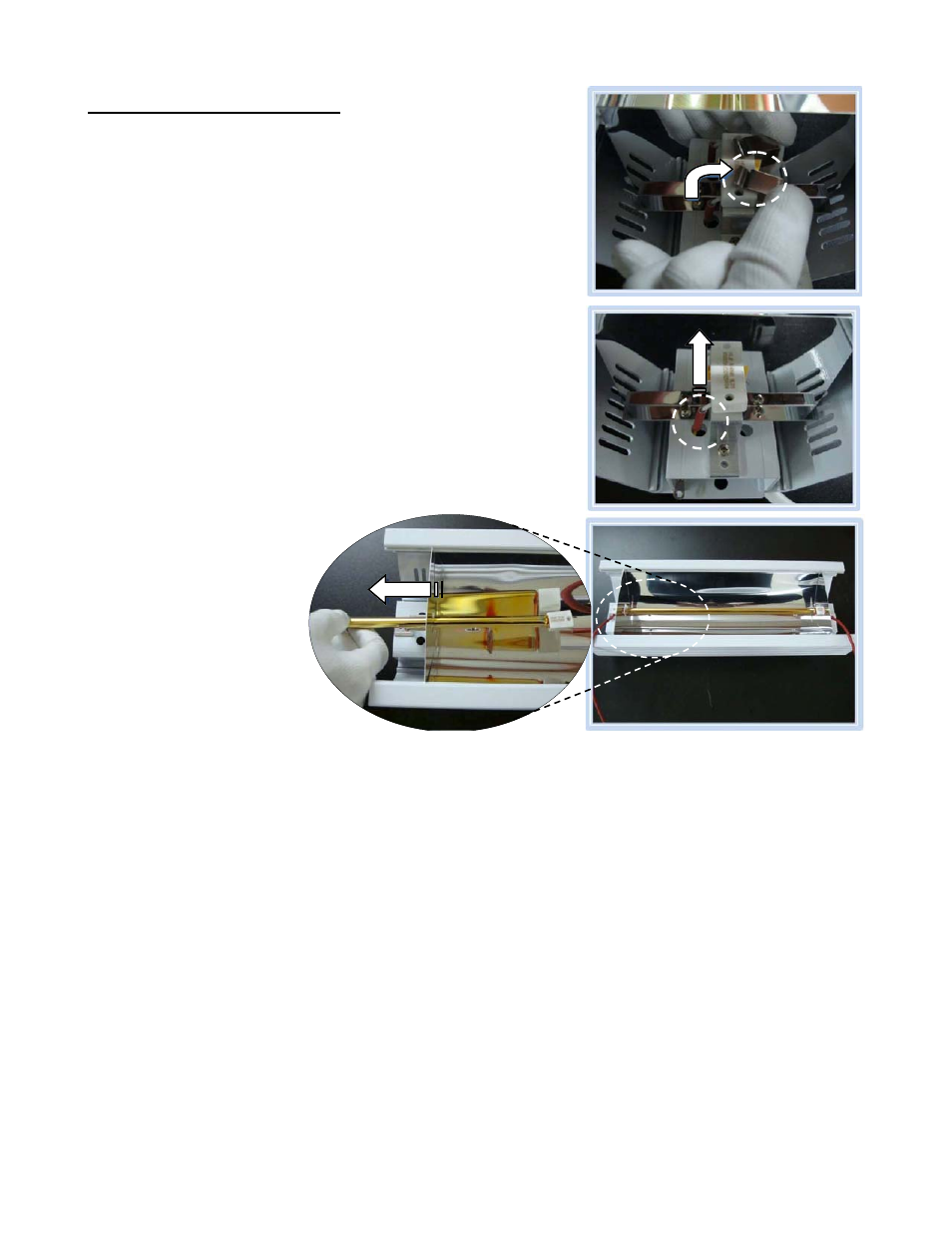

Step 8
Turn heater face up.
Each end of the lamp has a rectangular retainer block.
Remove the stainless steel clips that secure the retainer
blocks at each end of the lamp.
Step 9
Pull the lamp wires up and out from the heater body at
each end of the lamp.
Step 10
Slide the lamp out through
the reflector end plate.
Properly and safely dis-
pose of lamp.
Step 11
The Heat Lamp is fragile - handle with care!
Wear gloves. Do not touch lamp with bare fingers! Oils from your skin will damage the lamp.
Install the new replacement lamp and reassemble heater in reverse order of steps above.
