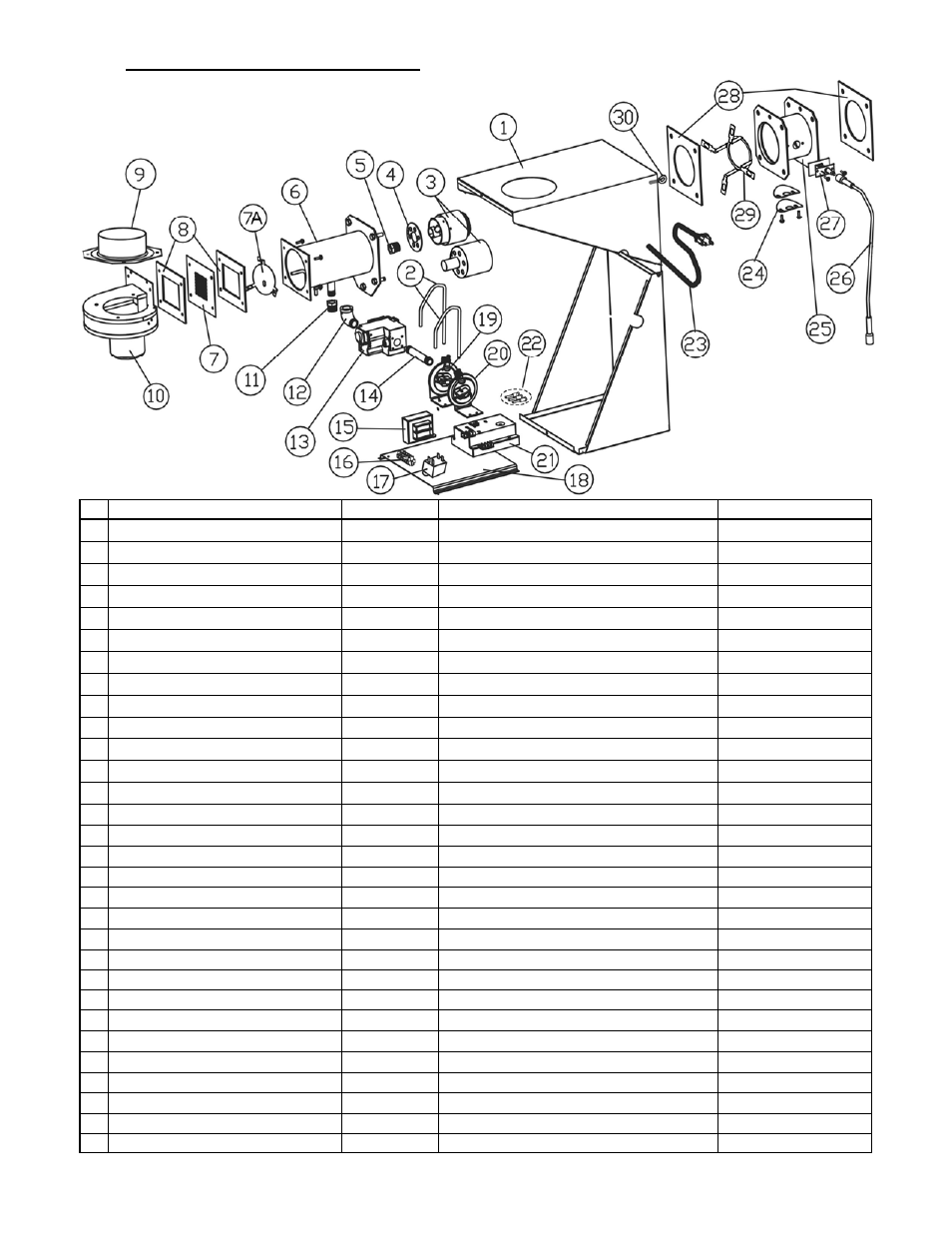

29. REPLACEMENT PARTS LIST: Model & Serial Numbers Required
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
1 BURNER HOUSING JS-0582-XX
Burner housing coated orange - Schwank
JJ-0582-XX
Burner housing coated grey - InfraSave
2 PRESSURE SWITCH TUBING JS-0572-SE
Tubing set 2 x 20" PVC SE
3 BURNER CUP JS-0510-LP-45
Burner Cup 45 -100
45 NG & LP
JS-0510-LP
Burner Cup 60 -101
60-100
JS-0512-UL
Burner Cup - Cast Aluminum - No Hole
175-200 LP; 200 NG
JS-0512-XX
Burner Cup large
110-175 NG; 110-155 LP
4 BURNER CUP AIR RESTRICTOR RING JS-0596-AA
Burner Cup air restr ring 9/32"
45LP, NG
JS-0596-XX
Burner Cup air rest ring 0.375
60LP, 60-175 NG
JS-0597-XX
Burner Cup air rest ring 0.500
80-155 LP
JS-0597-XY
Burner Cup air rest ring 175-S LP
175-S LP
JS-0597-YE
Burner Cup air rest ring 200-S LP
200-S LP
JS-0597-YY
Burner Cup air rest ring 200-S NG
200-S NG
5 MAIN BURNER ORIFICE JS-0748-DM
Gas orifice low intensity HR 48 DMS
45 LP
JS-0730-DM
Gas orifice low intensity HR 30 DMS
45 NG
JS-0742-DM
Gas orifice low intensity HR 42 DMS
60 LP
JS-0725-DM
Gas orifice low intensity HR 25 DMS
60 NG
JS-0736-DM
Gas orifice low intensity HR 36 DMS
80 LP
JS-0718-DM
Gas orifice low intensity HR 18 DMS
80 NG
JS-0731-DM
Gas orifice low intensity HR 31 DMS
100, 110 LP
JS-0752-MM
Gas orifice low intensity HR 5.2 mm
100, 110 NG
JS-0729-DM
Gas orifice low intensity HR 29 DMS
130 LP
JS-0758-MM
Gas orifice low intensity HR 5.8 mm
130 NG
JS-0714-IN
Gas orifice low intensity HR 9/64 inch
150/155 LP
JS-0725-IN
Gas orifice low intensity HR 1/4 inch
150/155 NG
JS-0724-DM
Gas orifice low intensity HR 24 DMS
175 LP
JS-0767-MM
Gas orifice low intensity HR 6.7 mm
175 NG
JS-0719-DM
Gas orifice low intensity HR 19 DMS
200 LP
JS-0750-IN
Gas orifice low intensity HR 5/16 inch
200 NG
6 BURNER CHAMBER JS-0504-XX Burner Chamber Alll
STS-JZ / IQ Burner
