ECO-X 36-52 / IL-X 150-200 Manual
IM100116
RD: MAY 2009
RL: 05A - BA
SUSPENDED
AT 30°
Max.
Stack
Height:
‘H’ = T - C
MOUNTING CLEARANCE TO COMBUSTIBLES
SUSPENDED HORIZONTALLY: Measured from outer surface of heater
MODEL
BELOW
< C >
Inches [cm]
SIDES
< S >
Inches [cm]
TOP
< A >
Inches [cm]
ENDS
< E >
Inches [cm]
ecoSchwank-X 36 - IL-X 150
ecoSchwank-X 52 - IL-X 200 121" [307]
121" [307]
55” [140]
55” [140] 52" [132]
52" [132] 39" [99]
39" [99]

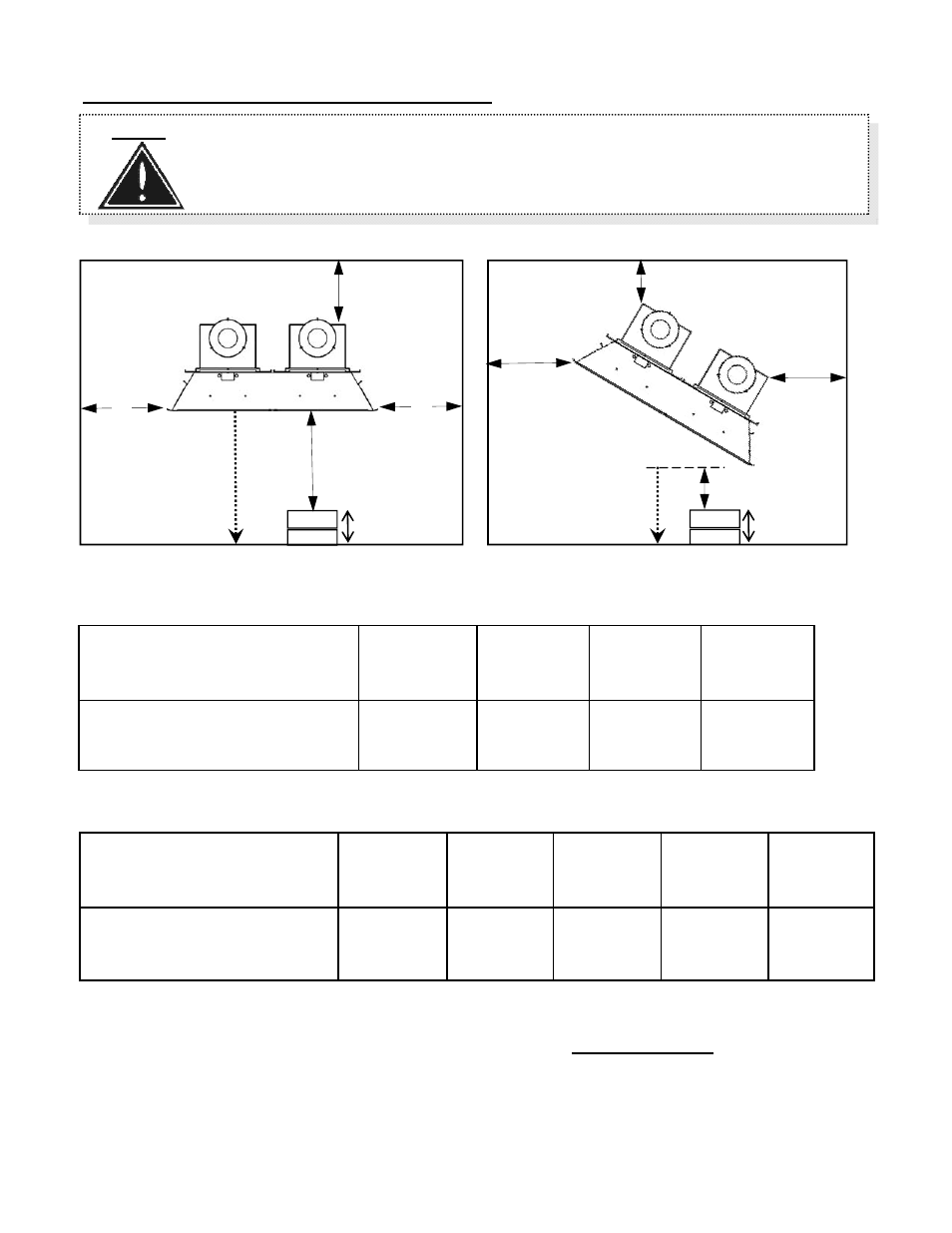

FIGURE 1: MINIMUM DISTANCES TO COMBUSTIBLES - refer to Table 1 for values
SUSPENDED AT AN ANGLE OF 30° *: Measured from outer surface of heater
NOTE: FOR AREAS USED TO STORE COMBUSTIBLE MATERIAL A ‘PEEL & STICK’ SIGN
IS SUPPLIED:
USE INDELIBLE MARKER TO RECORD VALUES ‘H’, ‘S’, ‘F’, & ‘B’.
POST THE SIGN ADJACENT TO THE HEATER THERMOSTAT OR IN A PROMINENT
LOCATION. See next page for details.
C
SUSPENDED
HORIZONTALLY
C
A
F
B
TABLE 1: MINIMUM CLEARANCE TO COMBUSTIBLES
BELOW
< C >
Inches [cm]
FRONT
< F >
Inches [cm]
BACK
< B >
Inches [cm]
TOP
< A >
Inches [cm]
ENDS
< E >
Inches [cm]
121" [307]
121" [307] 84" [213]
84" [213]
55” [140]
55” [140] 52" [132]
52" [132] 39" [99]
39" [99]
MODEL
ecoSchwank-X 36 - IL-X 150
ecoSchwank-X 52 - IL-X 200
* NOTE
: Suspended between horizontal and 30°: Use the largest clearance from each column
~ See additional notes on previous & next pages ~
A
Site distance
to floor = T
Site distance
to floor = T
Max.
Stack
Height:
‘H’ = T - C
S S
