SUSPENDED HORIZONTALLY: (long axis level)
TABLE 2: SUGGESTED LAYOUT / MOUNTING DISTANCES FOR COMFORT*
MODEL
TYPICAL
ABOVE
FLOOR
< X >
TYPICAL
BETWEEN
HEATERS
< Y >
TYPICAL
BETWEEN
ROWS
< Z >
ecoSchwank-X 36 - IL-X 150
ecoSchwank-X 52 - IL-X 200
28’ (850 cm)
30' (915 cm)
45' (1375 cm)
50' (1525 cm)
85' (2600 cm)
90' (2750 cm)

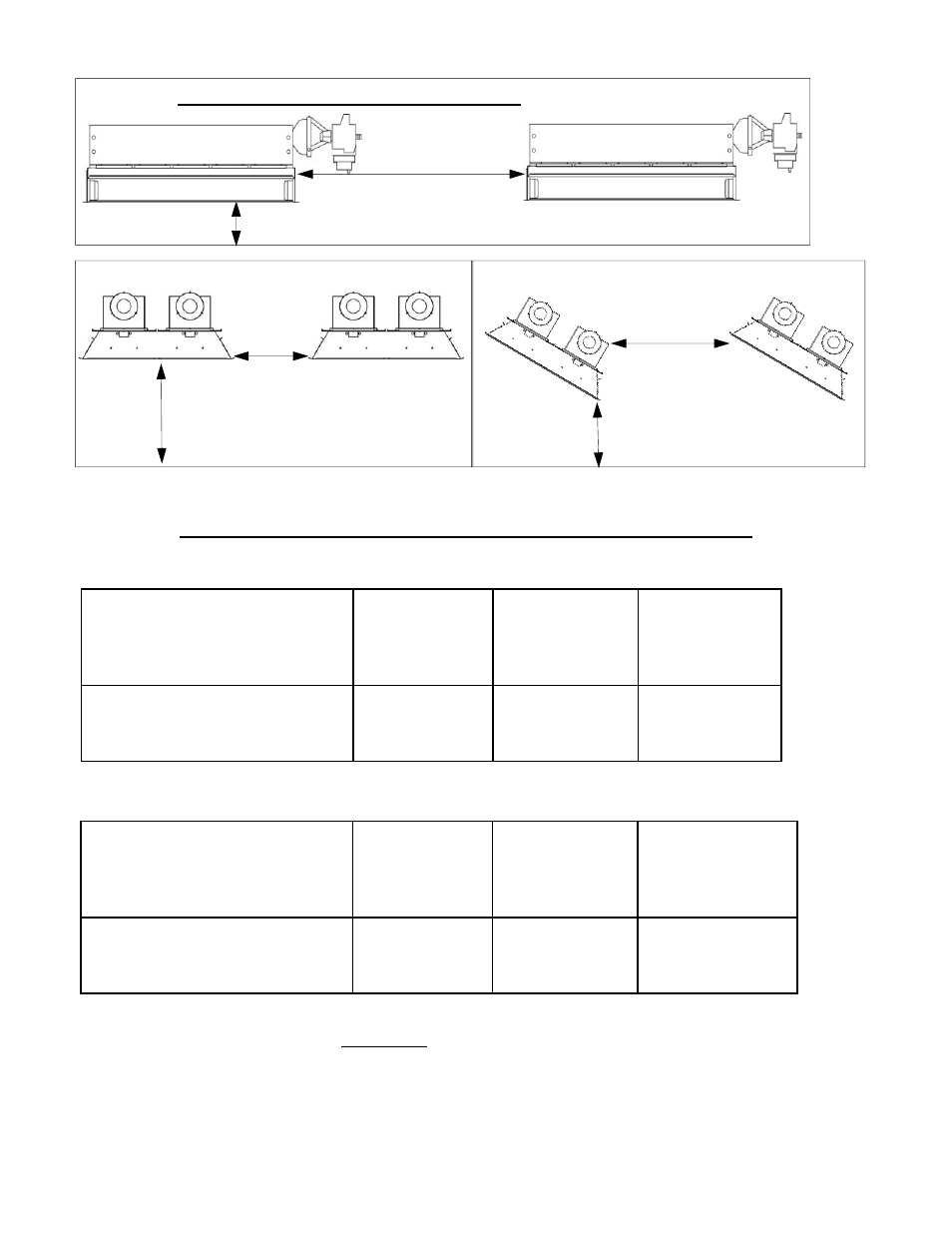

FIGURE 3: SUGGESTED LAYOUT FOR COMFORT
* The Mounting distances are suggested, and may vary depending on insulation/heat loss val-
ues, air movement/change, and other site conditions and comfort requirements. If in doubt,
please contact Schwank Design Services.
For ‘spot’ heating, the distance above the floor can be reduced by 4 to 6 feet (61 to 132 cm)
depending upon site conditions.
Y
X
X
Z
SUSPENDED AT AN ANGLE 30° ON SHORT AXIS: (long axis level)
Long axis always level
X
Z
Short axis may
rotate up to 30°
MODEL
TYPICAL
ABOVE
FLOOR
< X >
TYPICAL
BETWEEN
HEATERS
< Y >
TYPICAL
BETWEEN
ROWS
< Z >
ecoSchwank-X 36 - IL-X 150
ecoSchwank-X 52 - IL-X 200
26’ (800 cm)
28' (850 cm)
45' (1375 cm)
50' (1525 cm)
100' (3050 cm)
100' (3050 cm)
