Schwank supraSchwank User Manual
Page 20
supra/primo Manual
IM091112
RD: APR 2013
RL: 13B
20

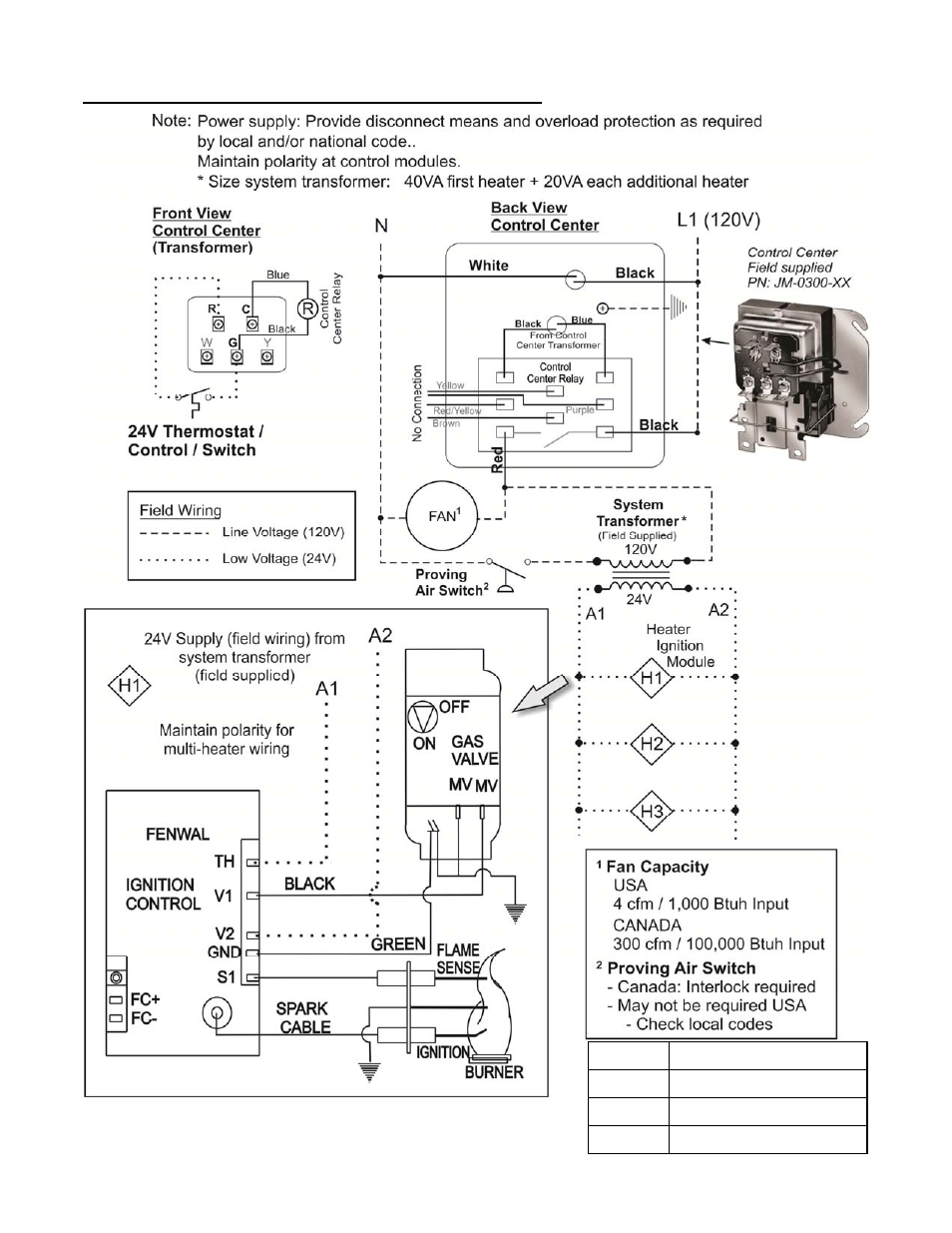

15. FENWAL 35-60 -
WIRING DIAGRAM - 24V CONTROL (Honeywell Control previous page)
TH
Thermostat / 24V Supply In-
put
GND System
Ground
V1 Valve
Power
V2
24V Supply Neutral
NC Alarm
S1
Remote Flame Sensor
Fenwal Control Terminal Designation
LED
Error Mode
Steady on Internal Control Failure
2 flashes Flame with No Call for heat
3 flashes Ignition Lockout
