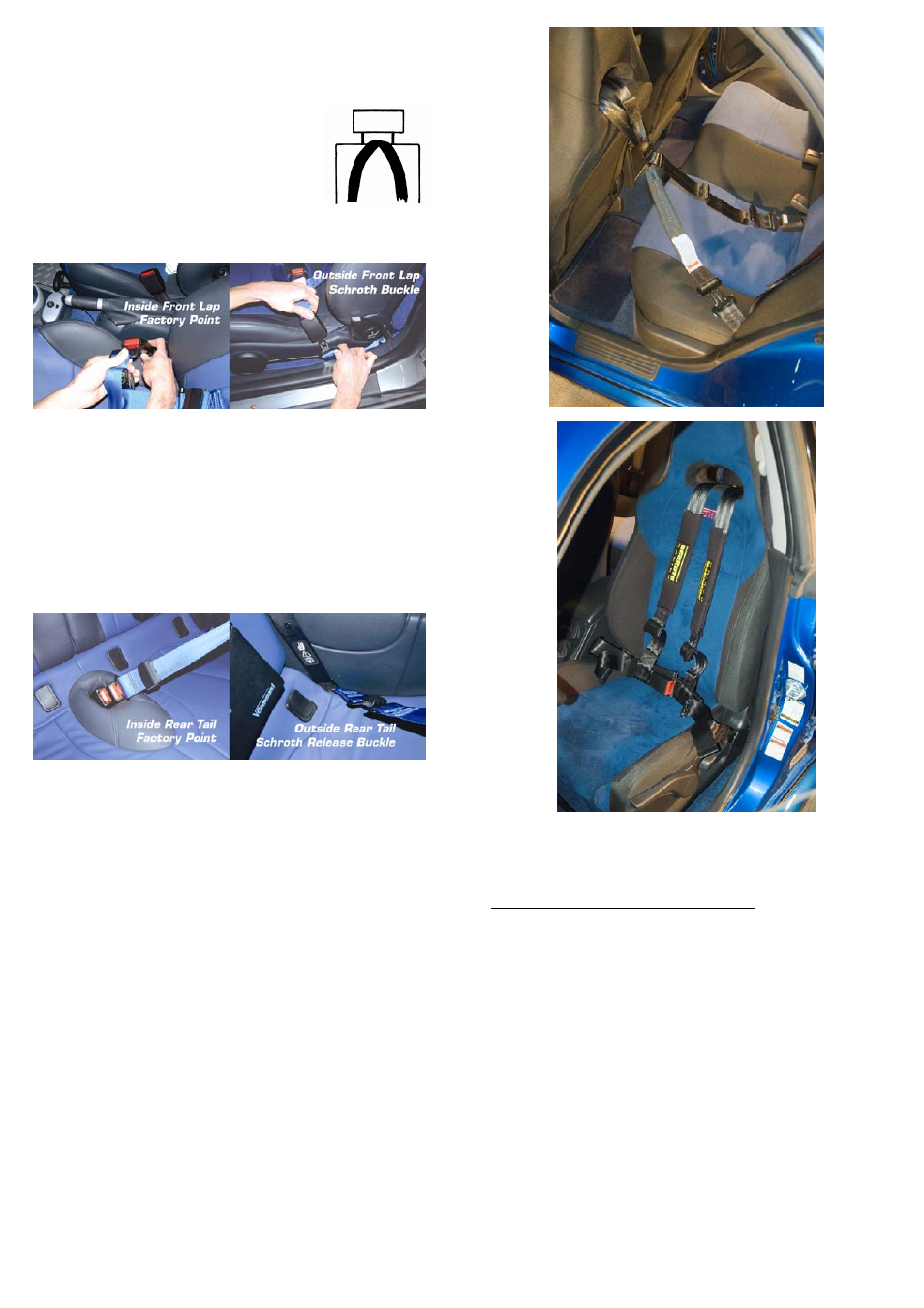

The following pictures show the correct

installation and use of SCHROTH asm

harnessbelts:

2 Routing of the shoulder belts

It is important to be sure to route the
SCHROTH shoulder belts between the two
posts of the headrest as pictured to the right.

i. 3

QuickFit

– Clip-In/Clip-Out

attachment points

ii. Front Inside Lap Belt Mount Points

iii. Clip the SCHROTH Lap Belt harness end

with the STi male latch into the factory
female receptacle as pictured above left.

iv.

v. Front Outside Lap Belt Mounting Points

vi. Plug in the SCHROTH female receptacle

on the outer end of the lap belt to the male
end of the connecting strap that you bolted
to the factory mounting point as pictured
above right.

vii. Inside Rear Tail Strap Mount Points

viii. Clip the SCHROTH Tail Strap end with the

STi male latch into the factory female
receptacle as pictured above left.

ix.

x. Outside Rear Tail Strap Mount Points

Plug the outside (far right or far left) tail strap with the of the
SCHROTH belt with SCHROTH male buckle into the
SCHROTH “separation buckle” that you bolted into chassis.

Adjustment of the seating position

Choose your most comfortable seating position for safe driving.
Driving and Safety Instructors recommend:

"Select your seating position in the vehicle so that you can fully
grip the upper edge of the steering wheel with your elbow still
slightly bent and without moving your upper body from the
seatback. With the clutch (automatic transmission-brake) fully
depressed your knee should still be slightly bent."

Remember: A "laid back" seating position might look 'cool', but
does not contribute in any way to better or safer handling of
your vehicle! No racing or rally driver is "laid back" in his
vehicle!
