5
Use of improper attachment points will impair system
performance.
Weak tail strap anchor points will not withstand the forces in an
accident and increase the risk of personal injury.
Never attach the tail strap to anchorages intended for the tether
straps of child seats that are found on the filler panels behind the
rear seats of some passenger cars or the luggage area of some
hatchbacks or station wagons. These anchor points are not strong
enough to withstand the forces of an accident and are not
intended for adult belts.
Harness belt systems may only be installed at suitable anchor
points for seat belt systems as originally installed by the vehicle
manufacturer.
For suitable anchor points for make, model and model year of
your vehicle, see Certified Vehicle List (Vehicle Reference List). If
in doubt, ask your dealer to show you where these anchor points
are located.

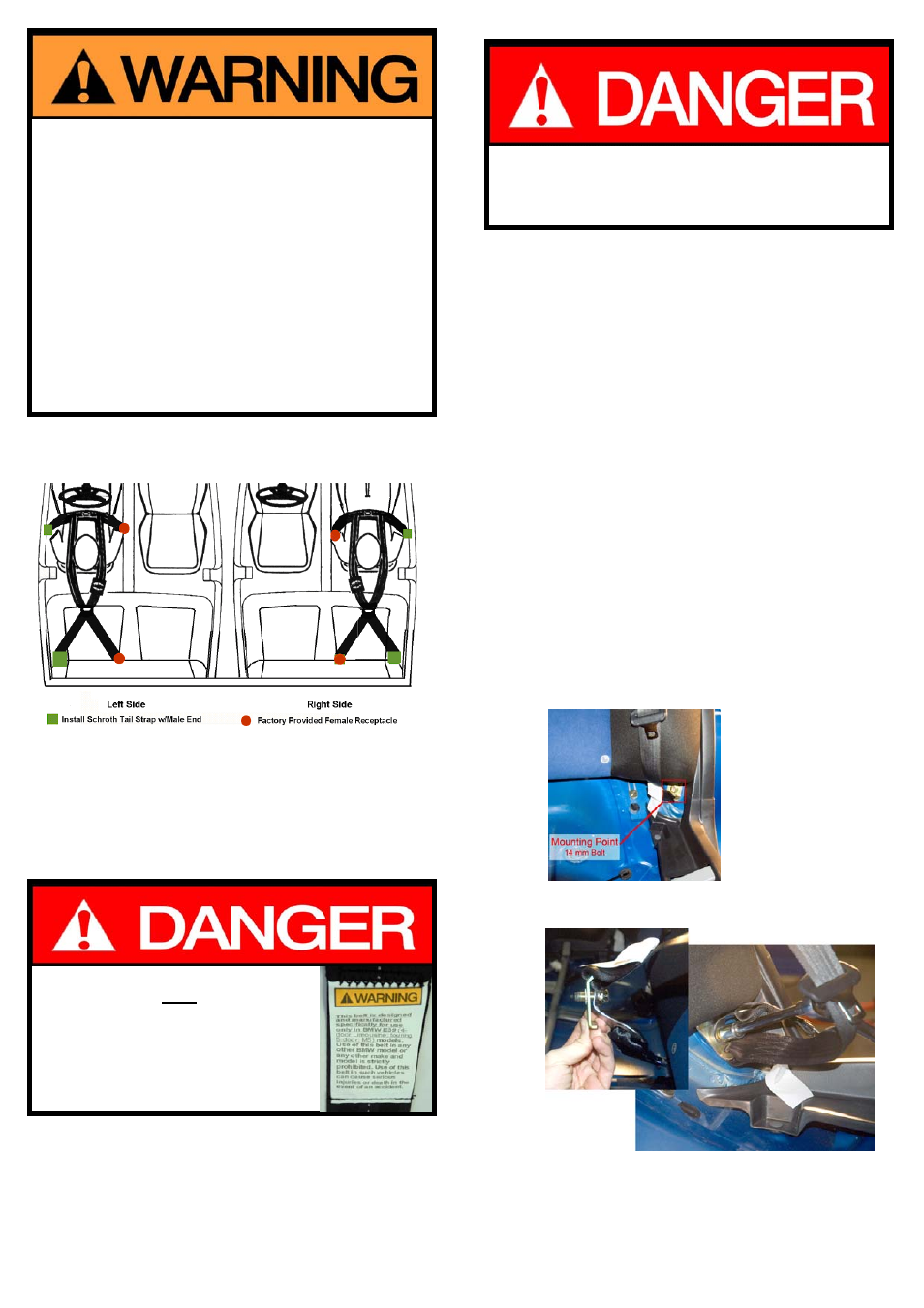

These figures show the general location and suitability of seat
belt anchor points installed as standard equipment in specific
Subaru STi model passenger cars.
Diagram applies to the SUBARU STI approved models
▀ Green squares represent points where SCHROTH provided
male connecting tail straps are to be installed at factory
mounting points along with factory provided harnessbelts.
● Red Circles represent points where the SCHROTH
Subaru STi QuickFit ® belts are designed to plug into
Subaru STi factory provided seatbelt female receptacles.
THIS SCHROTH Subaru STi QuickFit
®
HARNESSBELT IS ONLY DESIGNED FOR
Subaru STi I MODELS AS INDICATED ON
THE SEWN IN LABEL ON THE
HARNESSBELT TAILSTRAP. USE IN ANY
OTHER MODEL OR IN ANY OTHER AUTO OF
A DIFFERENT MANUFACTURER COULD
RESULT IN THE FAILURE OF THE HARNESS
SYSTEM AND SERIOUS INJURY.
Never drill or tap or make a new attachment point in the body or
chassis in order to mount a SCHROTH harness at that location.
Such attachment points are inadequate, may be improperly
located and can seriously impair the function and effectiveness
of the system.
Please compare the mounting locations on your car with the
illustration on page 6 and verify the “Model Tag” as pictured
above (sewn into the tail strap) matches the model of your
vehicle.
Original equipment belts with swivel attachments must never
be bent, modified, impeded or restricted in their range of
motion.
2 Anchorage bolts & SCHROTH Rallye Bolt on bracket
Where additional SCHROTH connecting tails are to be
installed (referenced by the Green Boxes on the diagrams on
page 6), the SCHROTH connector will be bolted to the a
factory mounting point along with the factory belt using the
factory provided bolts. You should be able to tighten each bolt
a minimum of nine (9) full 360 degree turns. Tighten all
anchorage bolts to a torque of 30 ft.lbs. (40 Nm)
3 Installation of the outside tail strap connection
The rear outboard tail strap mounting points are located under
the rear bench seat. Where the factory belt is mounted.
Using a 12mm wrench or socket, back out the two
bolts located on the front of the rear bench seat.
Pull the rear seat bottom cushion up and forward to
remove it from the car.
Find the Bolt Pictured below – it is the bolt used to fix
the factory rear passenger belt to the vehicle.
Remove with 14mm socket or wrench.
Bend supplied bracket as pictured bellow and reinstall
piggybacked on top of the factory bracket using the
factory bolt.
Torque the bolt to 30 ft.lbs.
