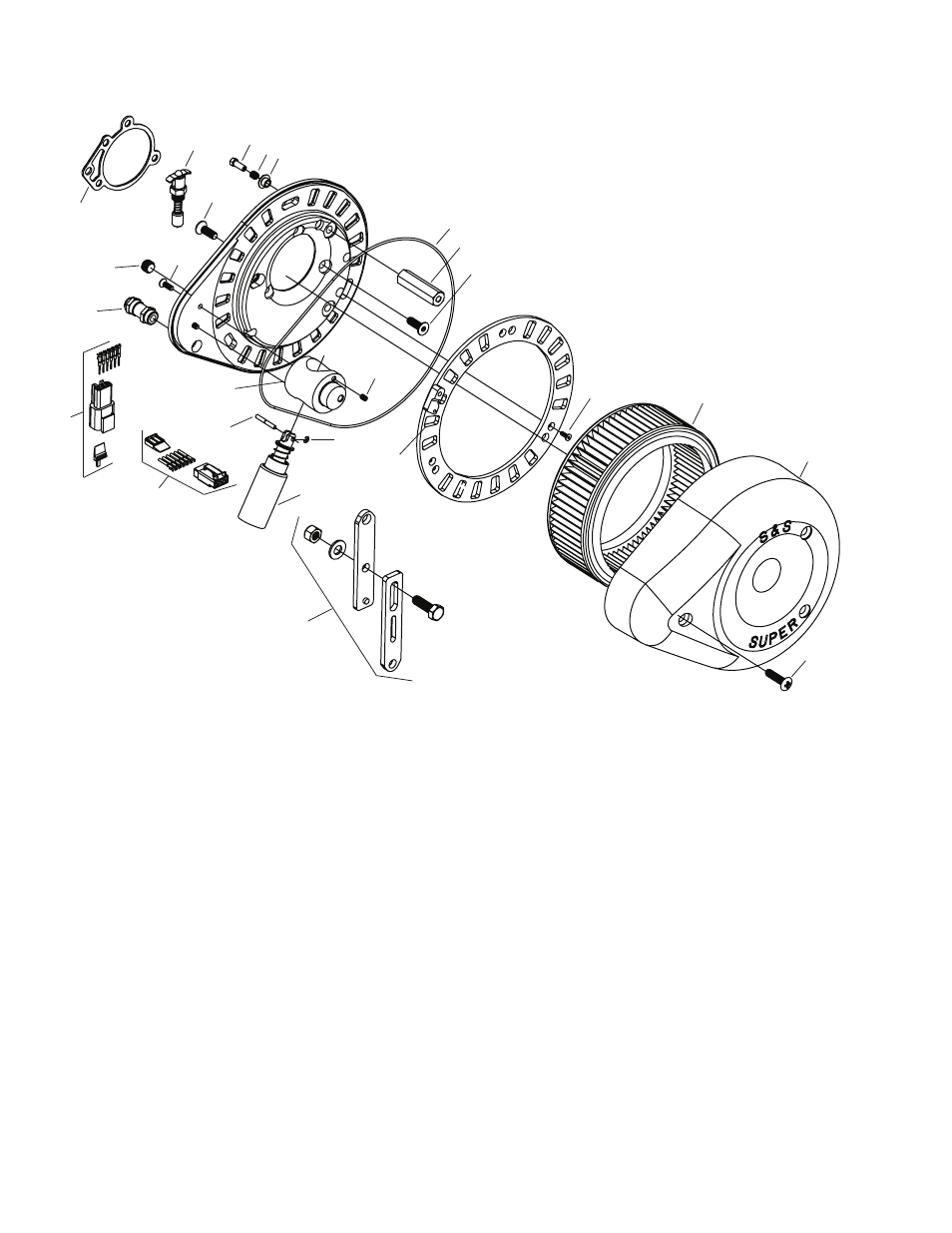

REPLACEMENT PARTS FOR S&S® SEALED AIR CLEANER
1. Cover, air cleaner teardrop, chrome . . . . . . . . . . . . . . . . . . . . . . . . . 17-0378
2. Filter, air, sealed air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-1451
3. Valve assembly, backplate, sealed air cleaner . . . . . . . . . . . . . .106-2627
4. Screw, phil/oval head ¼-20 x 1
(10 pack) . . . . . . . . . . . . . . . . . . . . . . 50-0094
5. O-ring, 7.613” x 7.753” x .070” Viton . . . . . . . . . . . . . . . . . . . . . . . .106-2317
6. Pin, guide, stainless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-2641
7. Spring, 5.2 lb/in .24” OD x .208” ID x .25 stainless
(12 pack) . .106-2633
8. Washer, flat with .18” step .192” x.500” x .030” (3 pack) . . . . . .106-2628
9. Screw, FHSC, ¼-20 x ¾” zinc (10 pack) . . . . . . . . . . . . . . . . . . . . . . .106-2318
10. Screw, FHSC 5-40 x 3/8” stainless (10 pack) . . . . . . . . . . . . . . . . . . . .106-2636
11. Screw, SHS set cup point, 8-32 x ¼” stainless (10 pack) . . . . .106-2631
12. Housing, solenoid, aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-2634
13. Retaining ring, external E-type 3/32 shaft stainless
(10 pack) . .106-2739
14. Solenoid assembly, pull dual coil 12v . . . . . . . . . . . . . . . . . . . . . .106-1452
15. Pin, dowel, grooved .094” x 1” stainless
(5 pack) . . . . . . . . . . . . .106-2642
16. Connector, kit, style DTM, 3-position male . . . . . . . . . . . . . . . . .106-2595
17. Connector, kit, style DTM, 3-position female . . . . . . . . . . . . . . .106-2742
18. Screw, FHSC, 8-32 x 1/2”, stainless
(10 pack) . . . . . . . . . . . . . . . . . .106-3456
19. Plug, SH pipe, 1/8-27, NPT, zinc (10 pack) . . . . . . . . . . . . . . . . . . . . . . 50-1015
20. Enrichment device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2084
21. Gasket, backplate
(10 pack) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-2328
22. Cord grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-2748
23. Stand-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/A
24. Bracket kit, carb to manifold
V100, V111, V113, V117 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-2053
V96, V124 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106-3082
