S&S Cycle T124V Engine VFI for 1995 1/2-1998 Chassis User Manual
Page 4
MODIFICATION OF CRANk POSITION SENSOR CONNECTOR
Parts Needed:
• 106-0115 Service Kit, Two Position, Deutsch® DTM
Procedure:
1- Cut the wire for the crank position sensor connector (round 3 position connector) off the motorcycle harness near the connector.
2- Strip the wire shielding off to expose two internal wires.
3- Crimp on terminals and populate the 2 – way connector using the following position assignment:
• 1: Signal, BE
• 2: Signal Return, BK
Calibration Files
1- This set-up requires the use of 99-2001 calibrations with MAP synchronization.
Because every industry has a leader

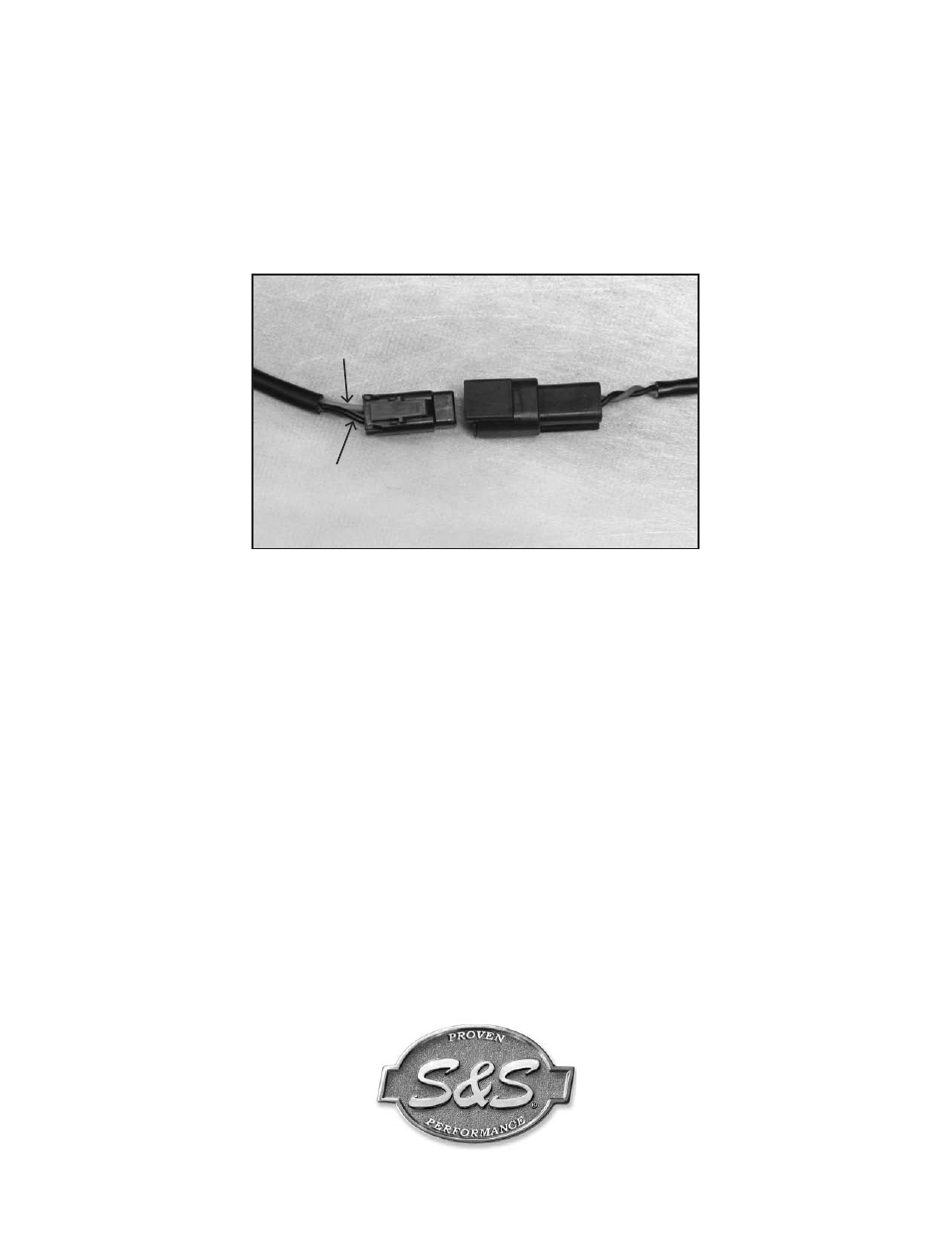

Picture 4
Position 1
Position 2
