S&S Cycle Exhaust System, PN106-5013 For 2008 – Up Polaris Ranger RZR and RZRs User Manual
Page 4
4

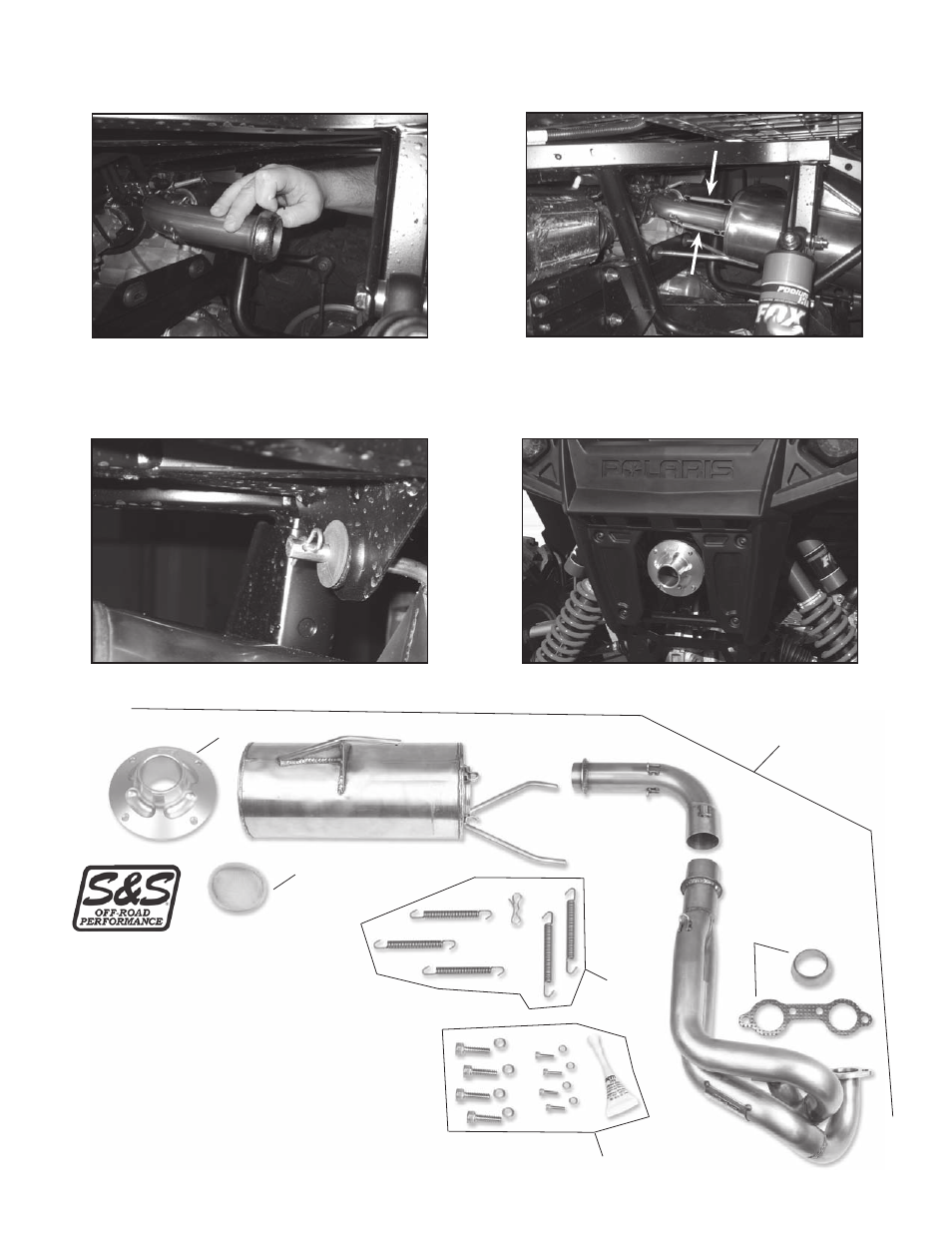

5- Install supplied exhaust donut gasket on end of mid pipe. See Picture 8. Slide muffler mounting arms into grommets making sure donut
gasket aligns with muffler and install the remaining three springs connecting the mid pipe to the muffler. See Picture 9.
6- Install the bow tie safety clip in the muffler top mount. This clip will keep the muffler from falling in the event all three muffler springs were to fail.
See Picture 10.
Picture 8
Picture 9
Picture 10
Picture 11 - Installed Exhaust
1- Exhaust System, Complete, 2008-Up,
Polaris Ranger RZR 800 ..................................................106-5013
2- Cover, Rear, End Cap, Muffler, Packaged, Billet,
Aluminum, Polaris Ranger RZR 800 ...............................106-5032
3- Screen, Spark Arrestor, Polaris Ranger RZR 800 .............106-5031
4- Spring, Kit, Exhaust, Polaris Ranger RZR 800 .................106-5020
5- Hardware Kit, Exhaust, Polaris Ranger RZR 800 .............106-5021
6- Gasket Kit, Exhaust, Polaris Ranger RZR 800 ..................106-5019
6
2
3
5
4
1
REPLACEMENT PARTS FOR
POLARIS® RANGER RZR® 800 ExHAUST
