Robustel GoRugged M1000 MP Quick Guide
RT_QG_M1000 MP_v.1.0.0
24.01.2014
3 / 5

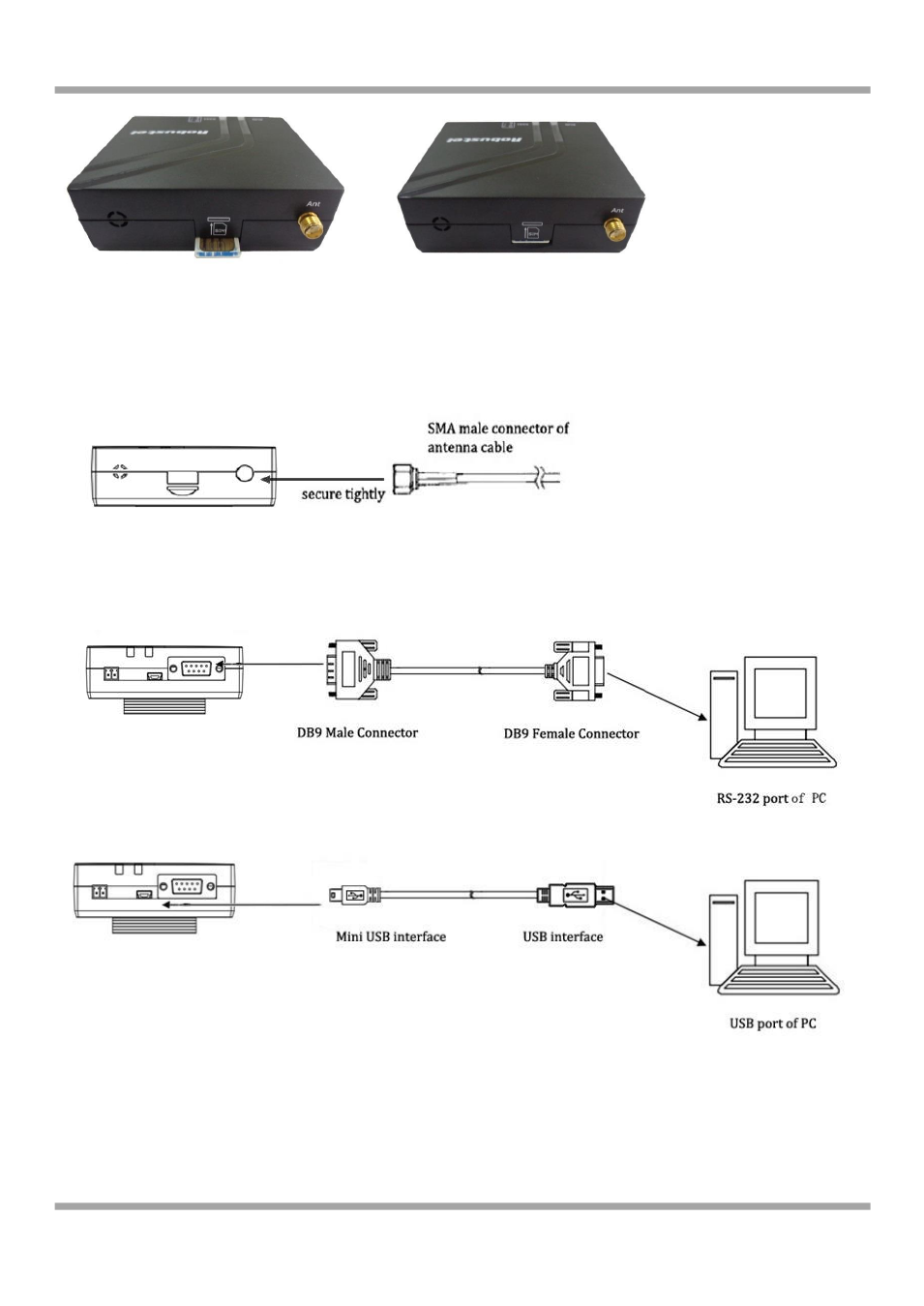

2.2 Connect the External Antenna (SMA Type)
Connect this to an external antenna with SMA male connector. Make sure the antenna is for the correct frequency as
your mobile operator with impedance of 50ohm, and also connector is secured tightly.
2.3 Connect the Modem to External Device
User can use the serial cable to connect the modem’s DB9 female connector to external controller / computer.
User can use the USB cable to connect the modem’s Mini USB Connector to external controller / computer.
2.4 Power On and Connect with PC
