Robustel GoRugged M1000 MP Quick Guide


RT_QG_M1000 MP_v.1.0.0

24.01.2014

2 / 5

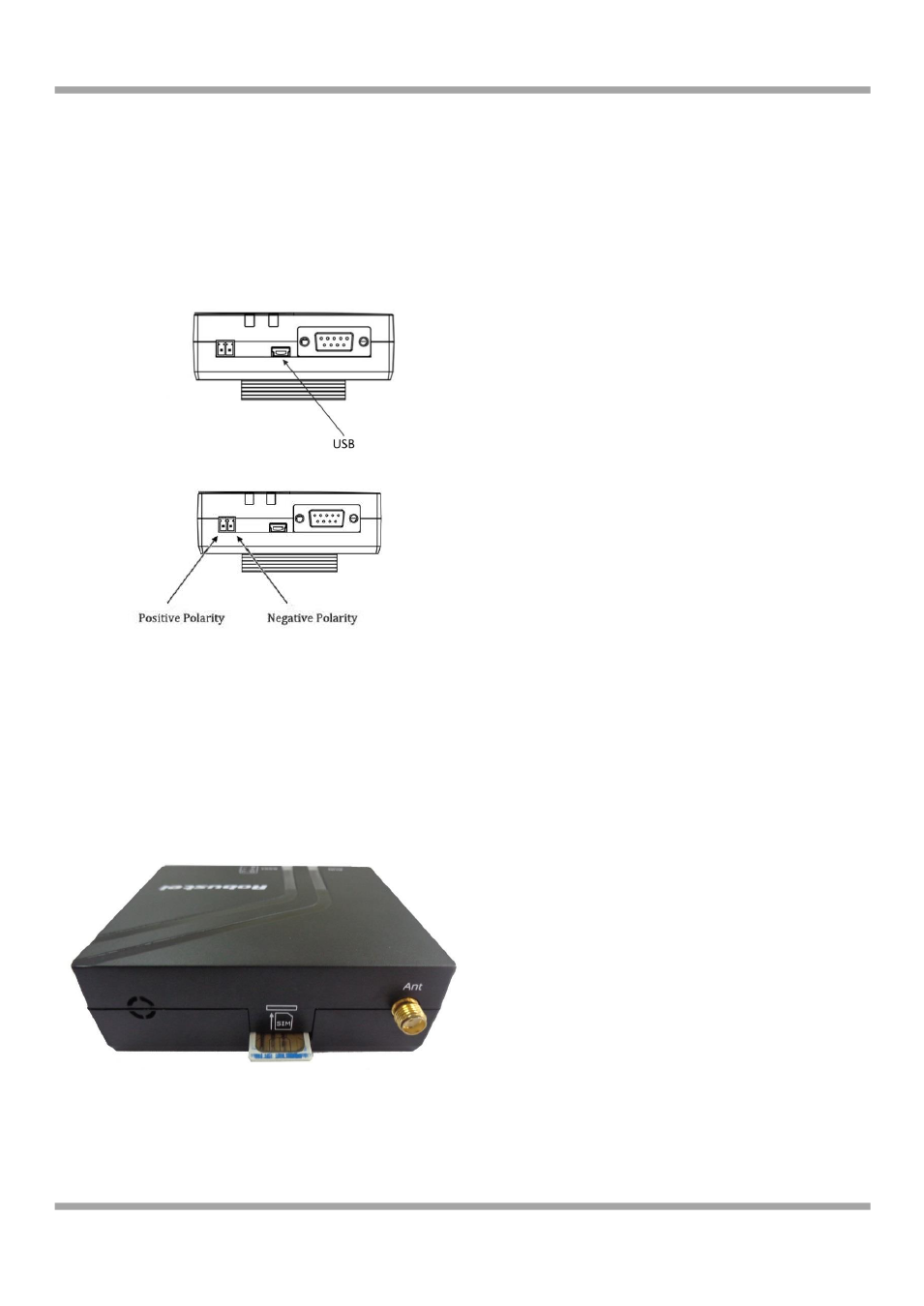

1.4 USB Interface

USB interface can be used for sending/receiving data and power supply. When USB interface of M1000 MP is used
for sending/receiving data as well as power supply, current/voltage output of USB interface which connects to
M1000 MP’s USB interface shall at least reach to 1A/5V.
Note: Normally, current/voltage output of PC’s USB 2.0 interface is only 0.5A/5V. So when you use USB interface for
sending/receiving data, you should use power input interface for power supply (please check section 2.8
Power
Supply
).



1.5 Power Supply






Note: Please take care about the polarity, and do not make reverse connection.

Chapter 2. Hardware Installation

2.1 Insert/Remove SIM Card

SIM card is used for connecting to cellular network, you need buy SIM card from local operators.

Note:
1. Don’t touch the metal surface of the SIM card in case information in the card is lost or destroyed.
2. Don’t bend or scratch your SIM card. Keep the card away from electricity and magnetism.
3. A SIM card set with PIN code cannot be used normally in the gateway without the correct PIN code.
4. Make sure to disconnect the power source from your modem before inserting and removing your SIM card.
