Operation, Maintenance/calibration – RKI Instruments GD-70D4H-XX User Manual
Page 11

Model GD-70D4H-XX Sample Draw Transmitter • 8
Operation
See the GD-70D Operator’s Manual for an operational description of the GD-70D that is
mounted inside the enclosure.
Maintenance/Calibration
GD-70D Maintenance and Calibration
See the GD-70D Operator’s Manual for maintenance and calibration instructions. Use the
inlet fitting on the NEMA 4X enclosure to apply gas instead of the fittings inside the
enclosure on the GD-70D.
Adjusting Horn/Strobe Volume
The horn volume on the horn/strobe can be adjusted by doing the following:
1.
Turn off the GD-70D. See the GD-70D Operator’s Manual for instructions.
2.
Turn off power (100 - 240 VAC) to the GD-70D4H-XX.
3.
Loosen the captive screw at the bottom front of the horn/strobe.
4.
Grasp the top and bottom of the horn/strobe and push up and out in order to remove
the cover.

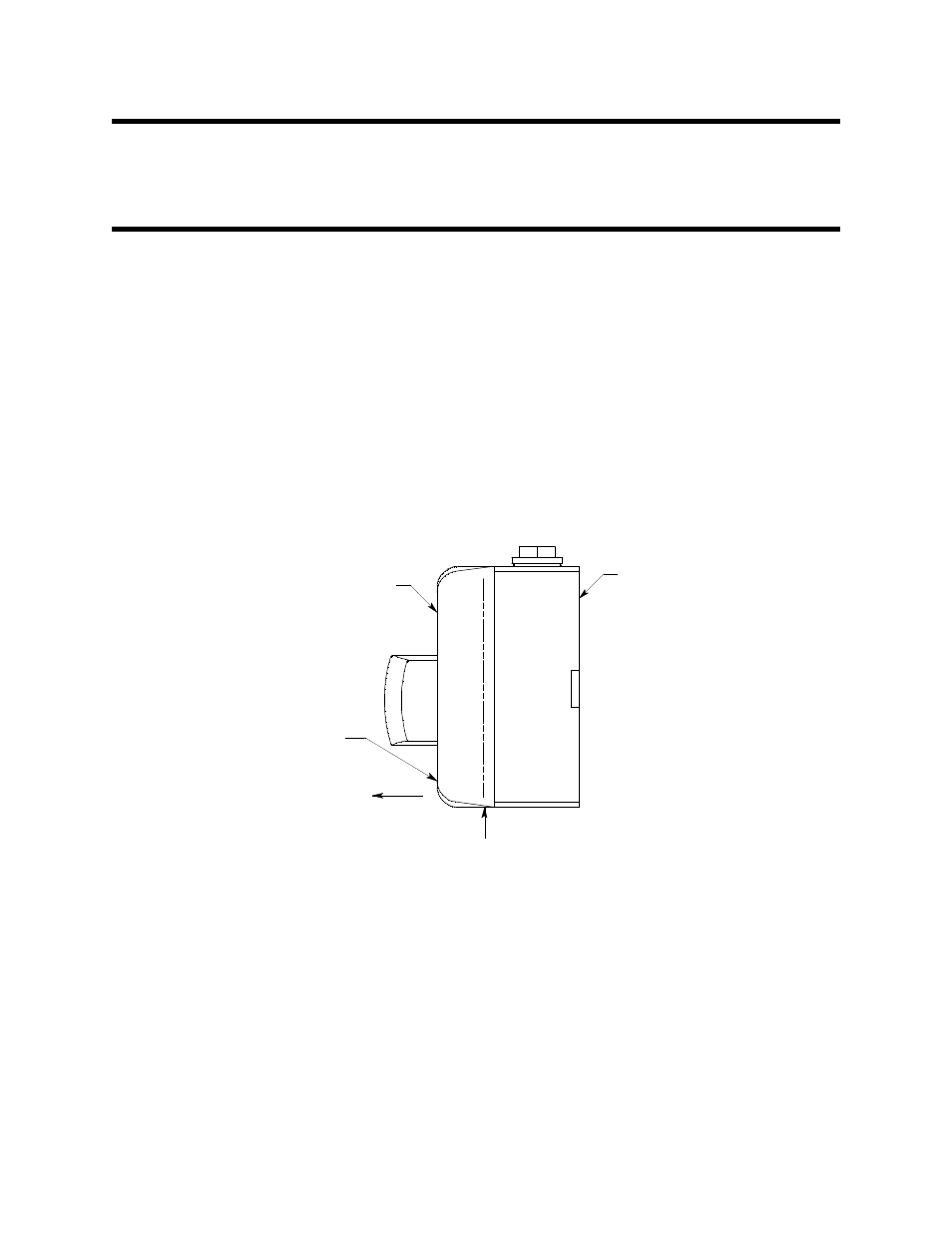

Figure 6: Top Case Removal
Push Up Here
Captive
Screw
Push Out
Top
Base
