Start up – RKI Instruments GD-70D4H-XX User Manual
Page 10

7 • Model GD-70D4H-XX Sample Draw Transmitter
CAUTION:
At the controller, do not route power and GD-70D wiring through the same conduit
hub. The power cable may disrupt the transmission of the GD-70D’s signal to the
controller.
5.
Factory wiring is shown below in Figure 5.

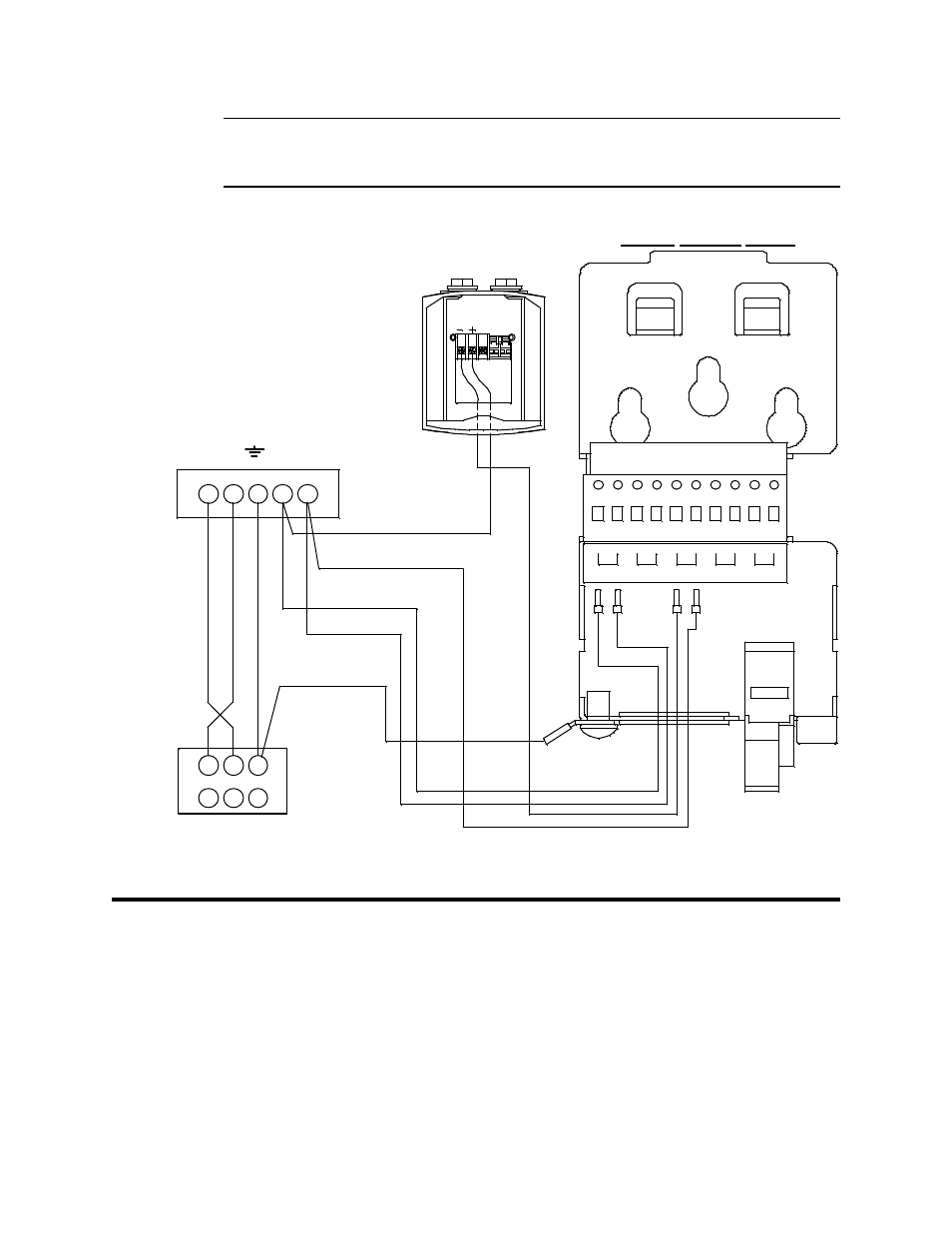

Figure 5: Factory Wiring
Start Up
1.
Turn on power to the controller.
2.
Turn on the controller.
3.
Turn on power (100 - 240 VAC) to the GD-70D4H-XX.
4.
Turn on the GD-70D. See the GD-70D Operator’s Manual for GD-70D startup
instructions.
GD-70D mounting bracket
BLK
RED
N L
+V -V
Power
Supply
Terminal
(AC)
FAULT
ALM 2
ALM 1
4-20mA
DC 24V
-
- +
+
GRN
WH
T
BL
K
GR
N
H N G
AC in
Terminal
RED
Horn/Strobe
BLK
BL
K
