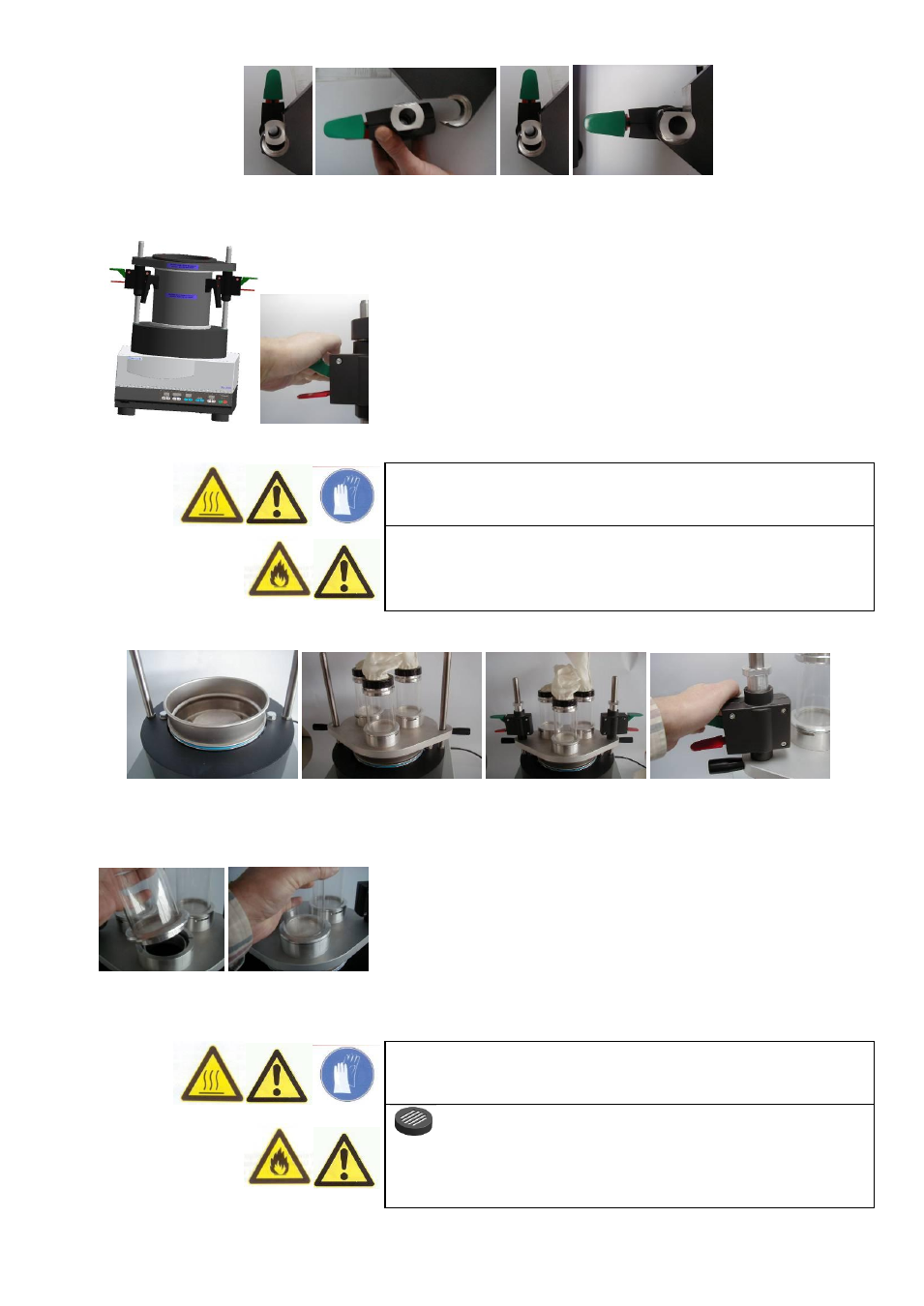

Inserting the clamping lid with filter element
10. 11. 12. 13.
14. 15.
The quick clamping lid with replaceable filter element is not
included in the items supplied with the TG200. It is available as a
separate accessory.
Art. No 72.643.0001 – quick clamping lid with replaceable filter
element
10. Turn clamping elements backwards
11. Remove clamping elements
12. Insert clamping elements in the quick clamping lid
13. Turn clamping elements to locking position
14. Place quick clamping lid with clamping elements in position
and tighten
15. Press green lever downwards several times
We recommend that protective gloves are worn when removing the
vessel and clamping lid at the end of the drying process.
Risk of burns.
When using the clamping lid with filter element the
TG200 may be operated only up to a temperature of
max. +90°C/+194°F.
Otherwise the filter fabric will burn. Risk of
burns.
Attachment with 3 x 300 ml glass vessels
16. 17. 18. 19.
20. 21.
The glass drying vessels, of 3 x 300 ml capactiy, are not included in
the items supplied with the TG200. They are available as a
separate accessory.
Art. No 72.002.0005 – glass vessels 3x 300ml
16. Insert intermediate ring
17. Place clamping lid in position
18. Position clamping elements and tighten
19. Press green lever downwards several times
20. Fill glass vessels and place in position
21. Clamp tightly by turning clockwise
We recommend that protective gloves are worn when removing the
vessel and clamping lid after the drying process.
Risk of burns.
When using the lid with filter element the
TG200 may be operated only up to a temperature of
max. +90°C/+194°F.
Otherwise the filter fabric will burn. Risk of
fire.
