Operation

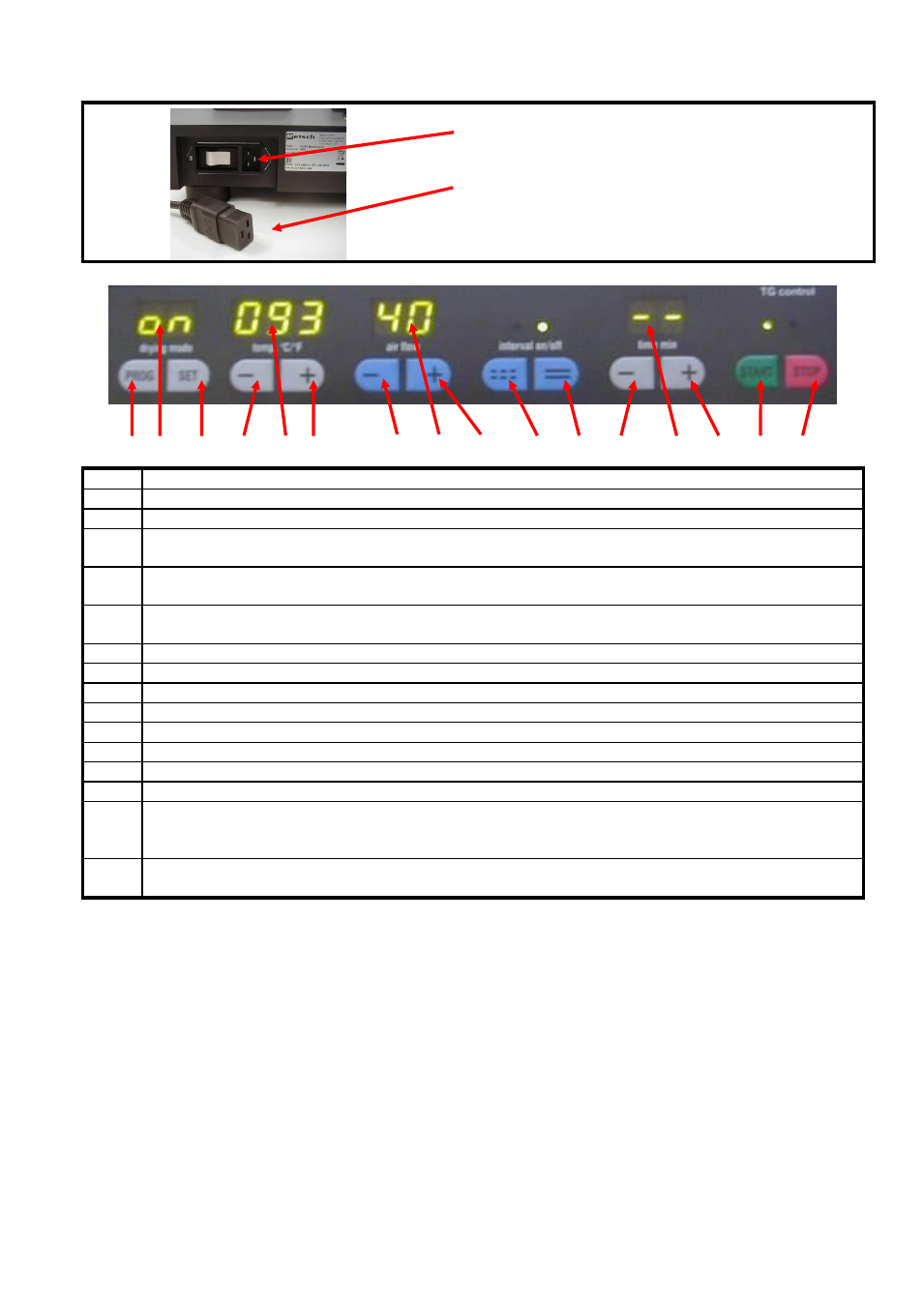

Operating elements and operation
A Cold machine plug combination with on-off
switch
B Power supply cable
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 Key for recalling preselected drying parameters P1-P9 and on
2 The selected programme P1-P9 / on is displayed here.
3 Key for activating the setting mode for the preselected programme locations P1-P9
4 This key reduces the temperature 000-150°C or 032-302°F
For switching over from °C to °F or vice-versa press keys “4+6” simultaneously.
5 Display shows preselected temperature and, after starting the TG200, the actual
measured temperature.
6 This key increases the temperature 000-150°C or 032-302°F
For switching over from °C to °F or vice vice-versa press keys “4+6” simultaneously.
7 This key reduces the fan power, 99 – 10
8 Display shows preselected fan power 10 – 99
9 This key increases the fan power, 10 – 99
10 This key switches ON interval operation, left LED lights up. 10 sec pause-10 sec operation
11 This key switches OFF interval operation, right LED lights up
12 This key reduces the drying period, 99 – 01min. or - - continuous operation
13 Display shows the preselected drying period 01 – 99min. or - - continuous operation
14 This key increases the drying period, 01 – 99min. or - - continuous operation
15 START key, starts the drying process and the green LED lights up
Press START key twice for quick start with max. heating power + max. fan power; green
LED lights up.
16 1x STOP key, heater is switched off Red LED over key 16 flashes
2x STOP key, stops and ends the drying process and the red LED lights up.
