Operating the machine
23
Pos : 8. 30 /00005 Ü berschrif ten/ 1. 1. 1 Ü bersc hrift en/ 111 D ec kel 1000ml @ 3\ mod_1279716204123_9. doc @ 21445 @ @ 1
5.9.1 Lid 1000ml
Pos : 8. 31 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ GM2 00 (2010)/ 0015 GM200N Bedienung/ 1594 GM 200_2010_keinT ext _D ec kel_H andling @ 5\ mod_1355839207125_0.doc @ 37020 @ @ 1
Pos : 8. 32 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ GM200 (2010)/ 0015 GM200N Bedienung/ 1540 GM 200_2010 Modul Dec kel 1000 ml @ 3\ mod_1279721704627_9. doc @ 21595 @ @ 1
The 1000ml lid is used for larger quantities of small-piece material. The feed
quantity ranges between 300 and a maximum of 700ml.

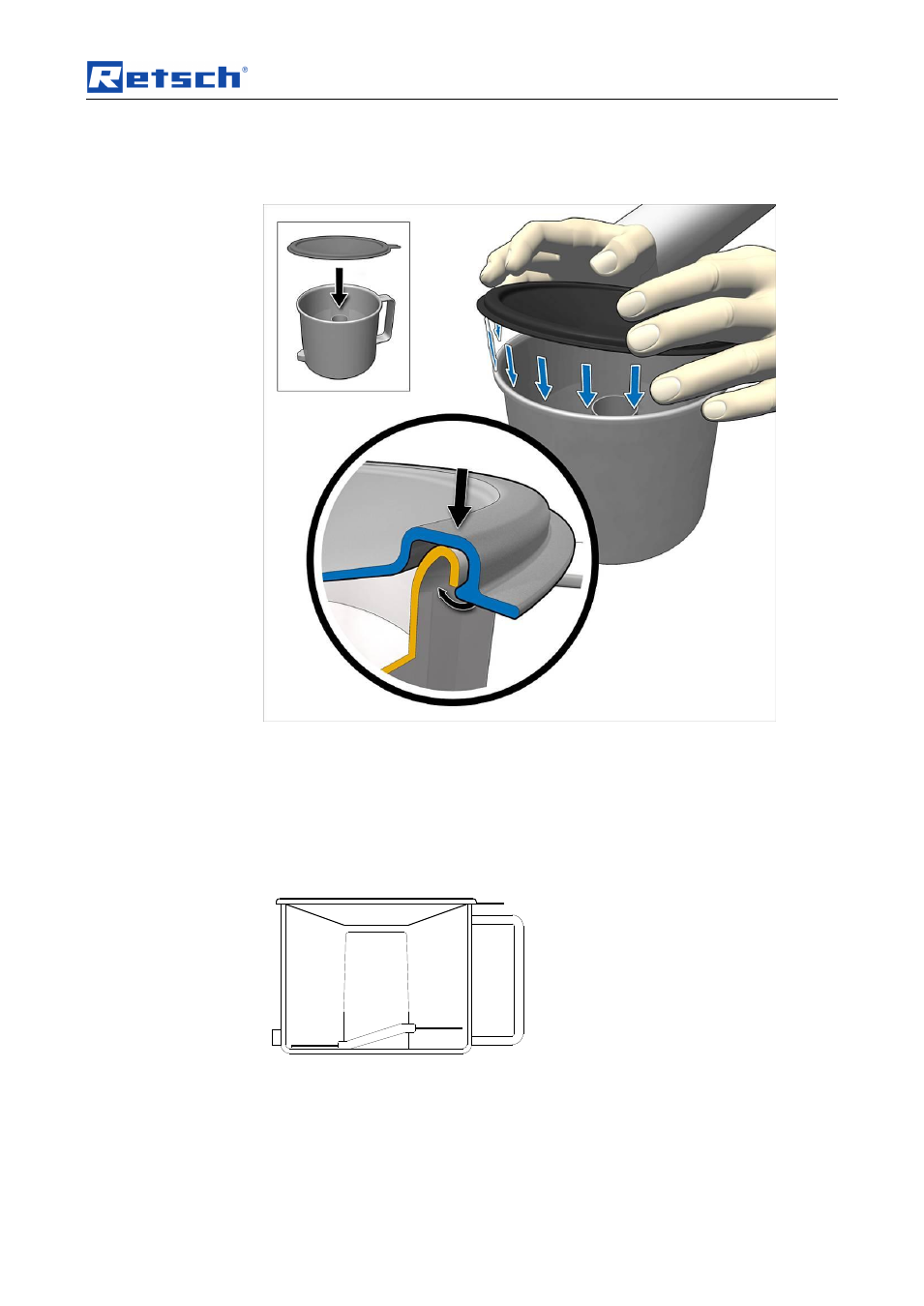

The lid is snapped on to the edge of the jug and can be released again by pulling
up the flap.
NOTE
The 1000ml lid may be used both on the plastic and on the glass jug.
Fig. 2: 1000ml lid
