Black Box AC1132A User Manual
Page 4
Page 4
724-746-5500 | blackbox.com
Wireless Video Presentation System III Quick Installation Guide
4. Installation

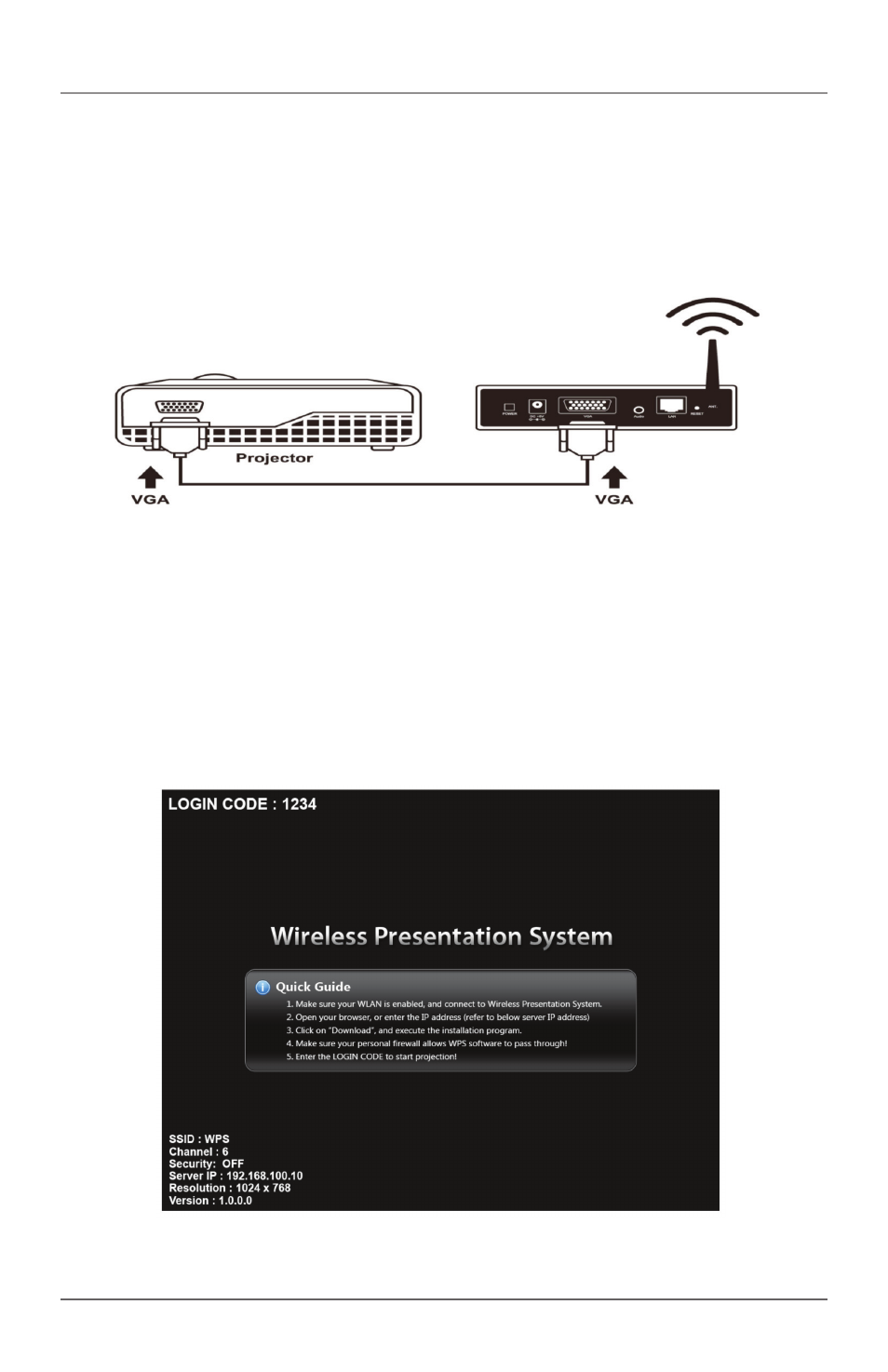

1. Connect the projector VGA cable to the AC1132A unit’s VGA connector and
turn on the projector power.
Figure 4-1. Connect the AC1132A to the projector.
2. Power on the AC1132A unit.
The unit is ready when the projector shows the default menu in Figure 4-2.
Figure 4-2. Default menu.
