Users Guide: iMFD Sensor Module
Version 1.0 May 1, 2008
www.plxdevices.com
(408)745-7591
Recommend Accessories:

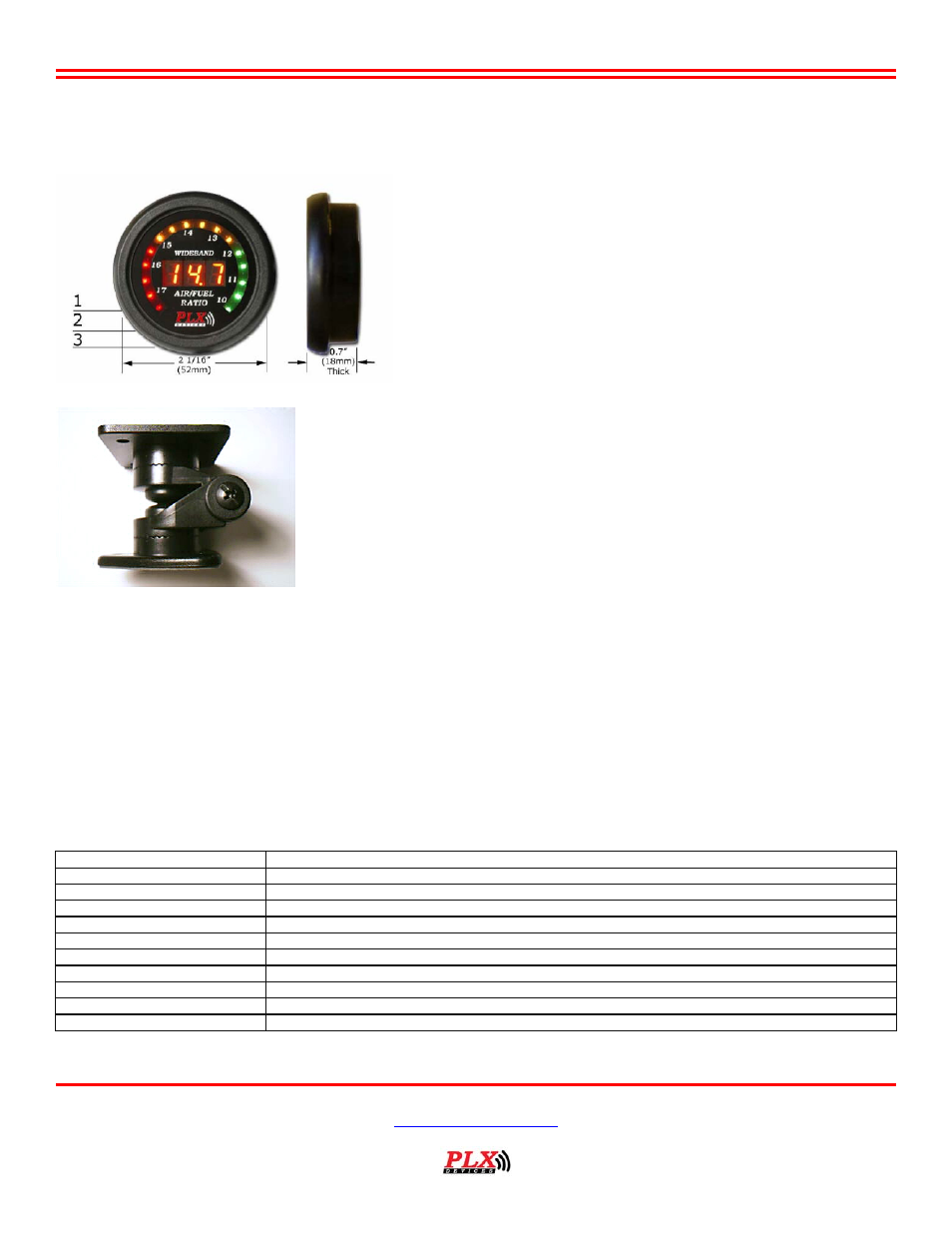

DM-5 AFR 52mm Gauge. Ideal for Gauge type Display from your M-300TE
Mounting Stand is INCLUDED for your M-300TE
Included Items:
1. M-300TE main unit
2. Bosch LSU 4.2 wideband sensor
3. O2 sensor harness 10ft
4. 4ft power wire with 2.1mm connector
5. 4ft Analog wires and connector with 4 terminals
6. 1ft Serial Cable
7. Termination jumper
8. 0.1uF 50V ceramic capacitor QTY2
9. Users guide
Specifications:
Physical Dimensions 2" x 2.875" x 1.125" (52mm x 75mm x 28mm) L x W x H
Technology PLX Critical Response Technology, Fast Response PID
Accuracy < 0.1AFR (Gasoline) Wideband, < 0.2AFR (Gasoline) Narrowband
Measurement Range 10-20AFR, 0.68 lambda - 1.36 lambda
Analog Outputs Wideband Linear 0-5V, Narrowband 0-1V (Driving Current 20mA)
Operating Voltage 8V-18V
Power Consumption 30 Watts (Max), 18 Watts (Typical)
Power Supply Technology High Efficiency Switching
Operating Temperature 30 – 1562 Deg F (0 - 85 Deg C)
Sensor One Bosch LSU 4.2
Enclosure Extruded Aluminum
