Users Guide: iMFD Sensor Module
Version 1.0 May 1, 2008
www.plxdevices.com
(408)745-7591

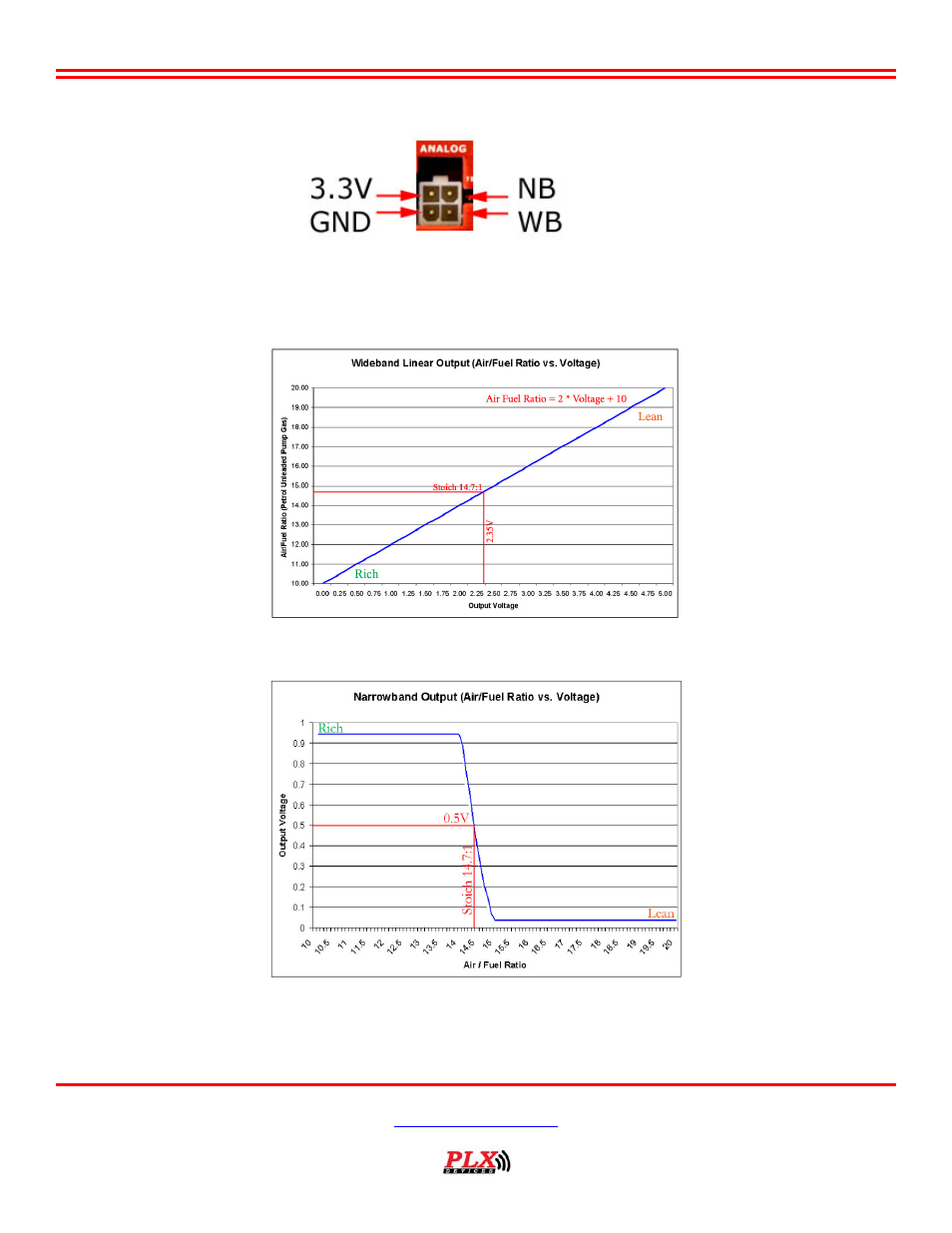

Using the Sensor Module Analog Outputs:
(Figure 5)
Wideband Linear Analog Output (0-5V)
0V=10AFR (Gasoline) 0.68 Lambda, 5V = 20AFR (Gasoline) 1.36 Lambda
Narrowband Analog Output (0-1V)
*If you plan to integrate the M-300TE with stand alone engine management systems, piggy back systems, data loggers or any other
devices that utilize the two analog outputs, noise filtering capacitors must be installed near the application. The included capacitors
filter out unwanted electrical noise produced from your vehicle’s ignition and other onboard systems. This provides added signal
integrity for more accurate, reliable, and consistent measurements. Any 0.1uF 50V ceramic capacitor will work.
