Omnitron Systems Technology OmniRepeater 400FTD - Manual (Page 2)

Trademarks are owned by their respective companies
OmniMux, OmniStar, OmniRepeater are trademarks of
Omnitron Systems Technology, Inc.
Specifications subject to change without notice.
©2009 Omnitron Systems Technology, Inc.
091-02900-002D 3/09
Standard 5250
5250 Express Description
2900-1 2940-1 Multimode fiber, 110 VAC
2900-2 2940-2 Multimode fiber, 110/230 VAC
Models Discontinued as of January 2009
2910-1 2950-1 Single-Mode fiber, 110 VAC
2910-2 2950-2 Single-Mode fiber, 110/230 VAC
140 Technology Dr., Suite 500, Irvine, CA 92618
Tel: (949) 250-6510 Fax: (949) 250-6514
Email: [email protected]
http://www.omnitron-systems.com

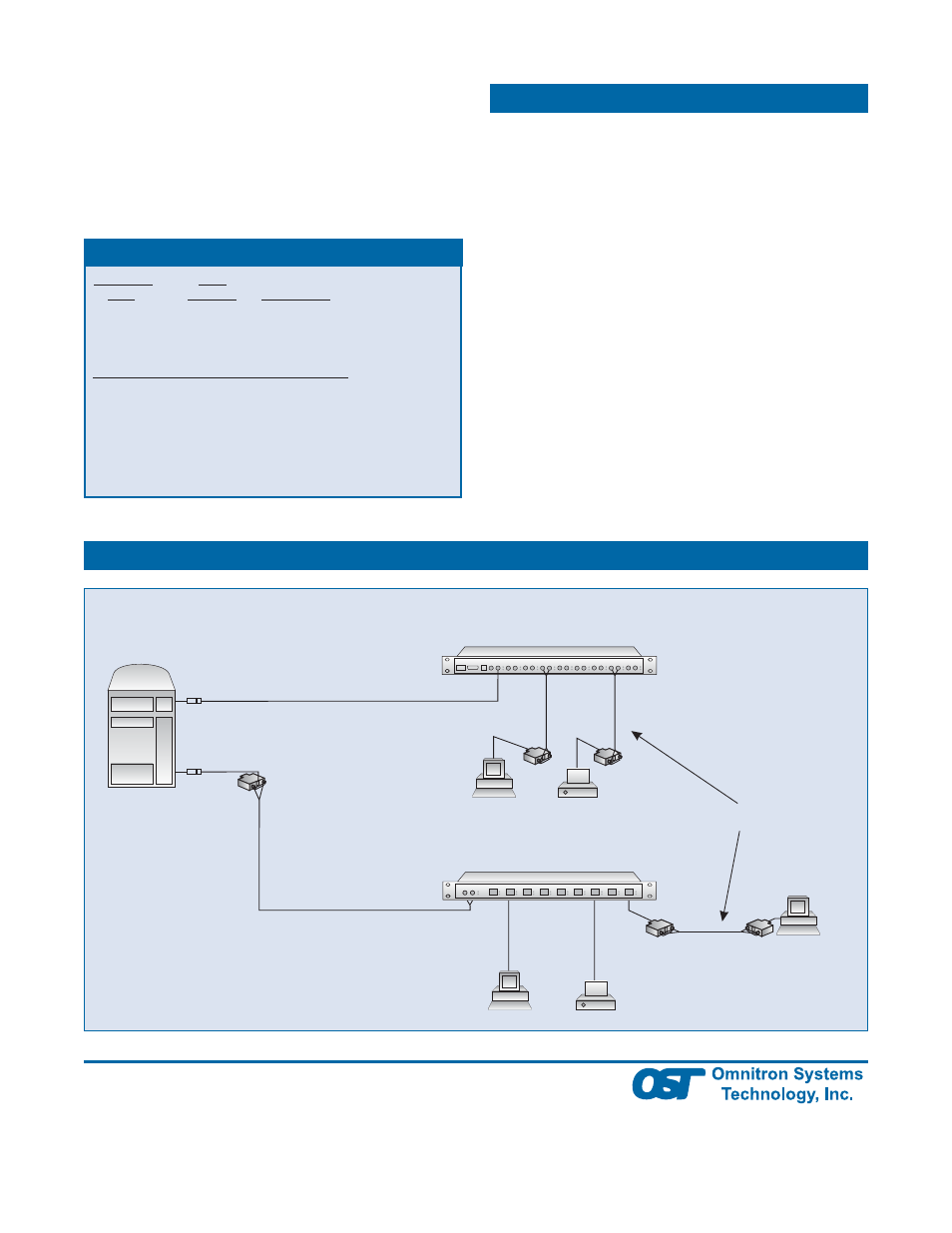

SAMPLE APPLICATION
Protocol: IBM 5250 and 5250 Express for
Systems AS/400 and 3X
Devices Supported: All twinax IBM compatible devices
Interface:
Fiber: MM--50/125, 62.5/125, 100/140 µm
UTP: Categories 3, 4, 5 (EIA/TIA 568) or
higher
Data Rate:
Standard 5250: 1 Mbps -2%, +4%
5250 Express: 1 or 2 Mbps -2%, +4%
Supported Distances:
UTP: 3,000 ft.
Multimode Fiber: 15,000 ft.
Indicators:
Power: Green LED (1)
Test: Red LED (1)
Activity/Error Green/Red LED (2)
Dimensions: W:3.46”xD:2.83”xH:0.78”
Weight: 6 oz.
Power: 110 or 230 VAC, 80/40 mA
Temperature:
Operating: 0 to 45 degrees C
Storage: -40 to 75 degrees C
Humidity: Up to 90% (non-condensing)
ORDERING INFORMATION
SPECIFICATIONS provide continuous line quality monitoring and early problem
detection.
The Express models operate with both 5250 and 5250 Express
protocols. Each port provides data rates of 1 Mbps for standard
5250 and 2 Mbps for 5250 Express protocol.
Fiber
Fiber
Fiber Fiber
UTP
AS/400
Balun
Balun
OmniMux™ 400XL
OmniMux™ 400
A: Fiber-To-The-Desk
B: Backbone Application
