PG 7 3 – 6,5 5 26 14 1.617.0700.01 1.647.0700.01 1.667.0700.01
PG 9 4 – 8 6 28 17 1.617.0900.01 1.647.0900.01 1.667.0900.01
PG 11 6 – 10 6 29 20 1.617.1100.01 1.647.1100.01 1.667.1100.01
PG 13,5 7 – 12 6,5 33 22 1.617.1300.01 1.647.1300.01 1.667.1300.01
PG 16 10 – 14 6,5 32 24 1.617.1600.01 1.647.1600.01 1.667.1600.01
PG 21 13 – 18 7 35 30 1.617.2100.01 1.647.2100.01 1.667.2100.01
PG 29 20 – 25 8 41 40 1.617.2900.01 1.647.2900.01 1.667.2900.01
PG 36 24 – 32 8 48 50 1.617.3600.01 1.647.3600.01 1.667.3600.01
PG 42 32 – 38 9 51 57 1.617.4200.01 1.647.4200.01 1.667.4200.01
PG 42 28 – 31 9 51 57 1.617.4200.15 1.647.4200.15 1.667.4200.15
PG 48 37 – 44 10 51 64 1.617.4800.01 1.647.4800.01 1.667.4800.01
PG 48 32 – 35 10 51 64 1.617.4800.15 1.647.4800.15 1.667.4800.15
RoHS
II 2G 1D
For the international certificates
please see page 176 or our homepage
www.hummel.com

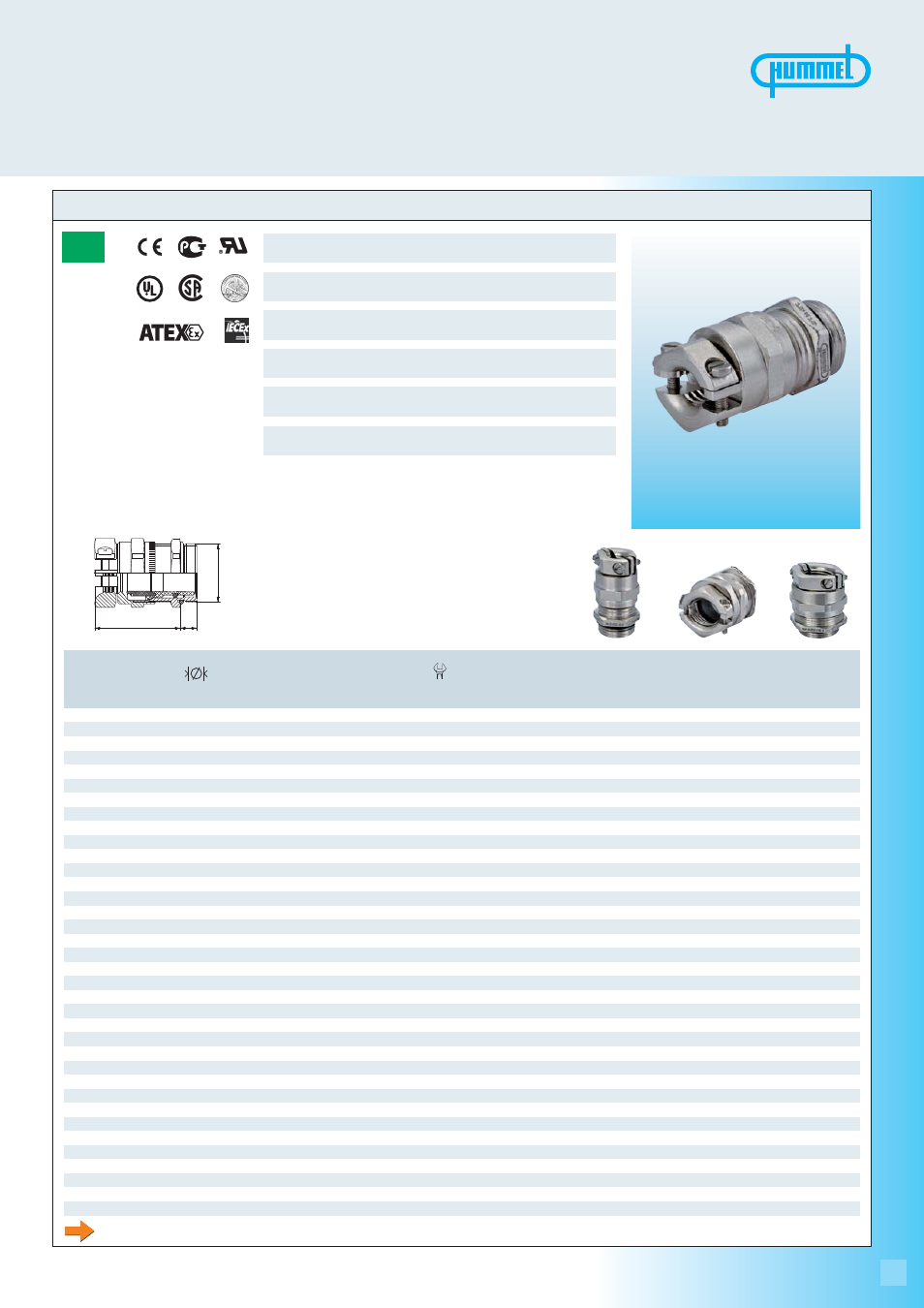

HSK-MZ-EMV-Ex / HSK-MZ-EMV-PVDF-Ex PG
Protection IP 68 – 10 bar / IP 69K (NEMA 6 – 150 PSIG)
within the specified clamping range
O-Ring Buna-N / FPM
Seal Buna-N / FPM
Clamping insert Polyamide / PVDF
Material Nickel plated brass
Number Number Number
AG GL H HSK-MZ-EMV-Ex HSK-MZ-EMV-Ex HSK-MZ-EMV-PVDF-Ex
mm mm mm mm - 20 °C – 95 °C - 60 °C – 95 °C - 20 °C – 130 °C
(- 4 °F – 203 °F) (- 76 °F – 203 °F) (- 4 °F – 266 °F)
Advice:
- Elongated threads on request
Accessories see page 73 and 143
Operating Temperature - 20°C – 95 °C (- 4°F – 203°F)/- 60°C – 95 °C
(- 76°F – 203°F)/ - 20°C – 130°C (- 4°F – 266°F) (PVDF)
Dimensions and specifications may be changed without prior notice
HSK-EMC-Ex-e cable glands
