Northern Connectors Hummel Cable Glands - EMC-Ex-e for Hazardous Areas - Manual (Page 2)

124
AG
GL H
M
RoHS
II 2G 1D
AG
GL H
M
RoHS
II 2G 1D
M 16 x 1,5 5 – 10 6 29 20 1.636.1600.50 1.637.1600.50
M 20 x 1,5 10 – 14 6 31 24 1.636.2000.50 1.637.2000.50
M 25 x 1,5 13 – 18 7 38 30 1.636.2500.50 1.637.2500.50
M 32 x 1,5 18 – 25 8 43 40 1.636.3200.50 1.637.3200.50
M 40 x 1,5 24 – 32 8 51 50 1.636.4000.50 1.637.4000.50
M 16 x 1,5 5 – 10 10 29 20 1.636.1600.30 1.637.1600.30
M 20 x 1,5 10 – 14 10 31 24 1.636.2000.30 1.637.2000.30
M 25 x 1,5 13 – 18 12 38 30 1.636.2500.30 1.637.2500.30
M 32 x 1,5 18 – 25 12 43 40 1.636.3200.30 1.637.3200.30
M 40 x 1,5 24 – 32 15 51 50 1.636.4000.30 1.637.4000.30
Operating Temperature - 20°C – 95 °C (-4°F – 203°F)/
- 60°C – 95 °C (- 76°F – 203°F)
Operating Temperature - 20°C – 95 °C (- 4°F – 203°F)/
- 60°C – 95 °C (- 76°F – 203°F)

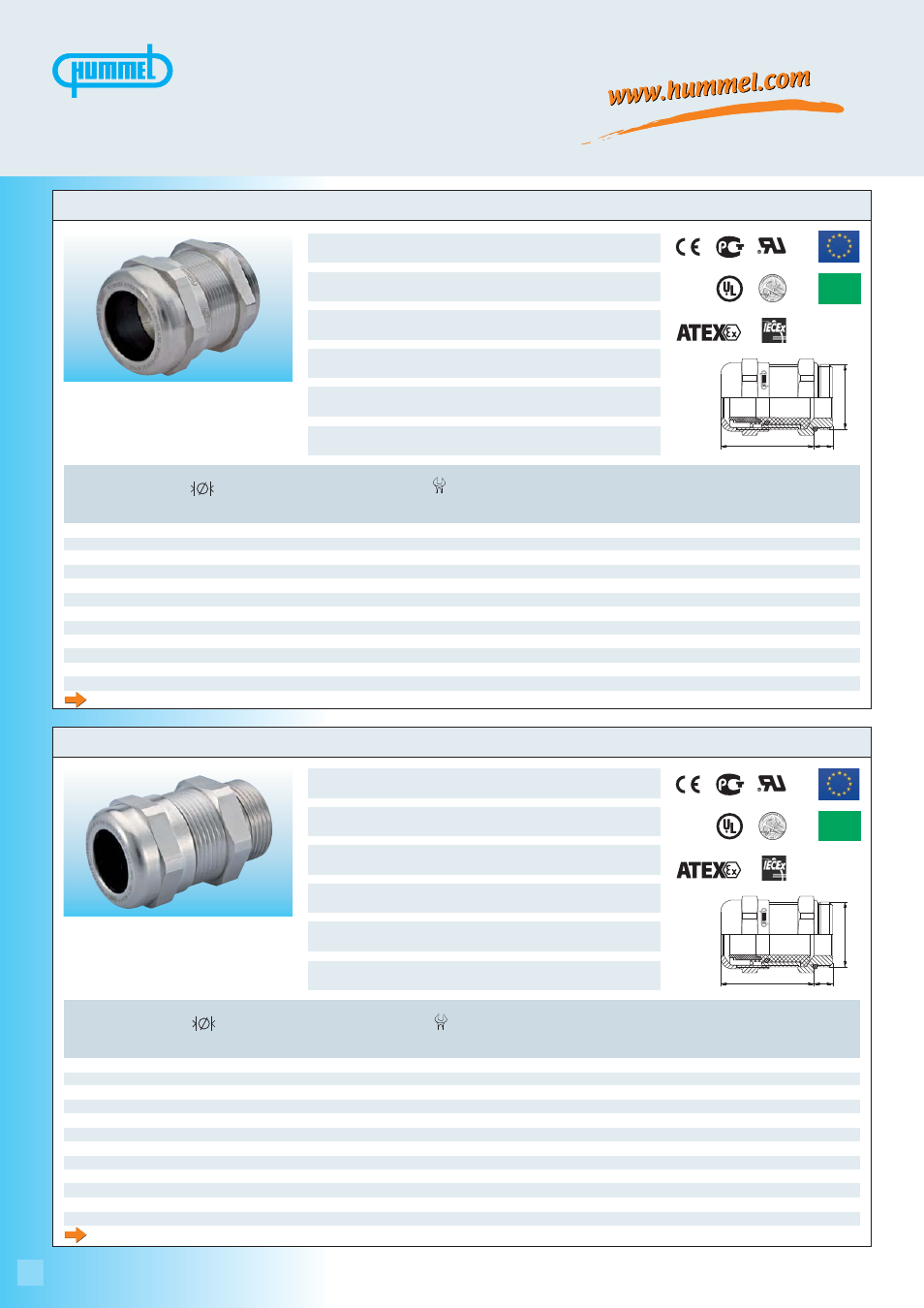

HSK-EMC-Ex-e cable glands
HSK-M-EMV-D-Ex Metr.
HSK-M-EMV-D-Ex Metr.-elongated
Protection IP 68 – 10 bar / IP 69K (NEMA 6 – 150 PSIG)
within the specified clamping range
O-Ring Buna-N
Seal Buna-N
Clamping insert Metalised Polyamide
Material Nickel plated brass
Protection IP 68 – 10 bar / IP 69K (NEMA 6 – 150 PSIG)
within the specified clamping range
O-Ring Buna-N
Seal Buna-N
Clamping insert Metalised Polyamide
Material Nickel plated brass
Number Number
AG GL H HSK-M-EMV-D-Ex HSK-M-EMV-D-Ex
mm mm mm mm - 20 °C – 95 °C - 60 °C – 95 °C
(- 4 °F – 203 °F) (- 76 °F – 203 °F)
Number Number
AG GL H HSK-M-EMV-D-Ex HSK-M-EMV-D-Ex
mm mm mm mm - 20 °C – 95 °C - 60 °C – 95 °C
(- 4 °F – 203 °F) (- 76 °F – 203 °F)
