38
Circular
mixed power/signal

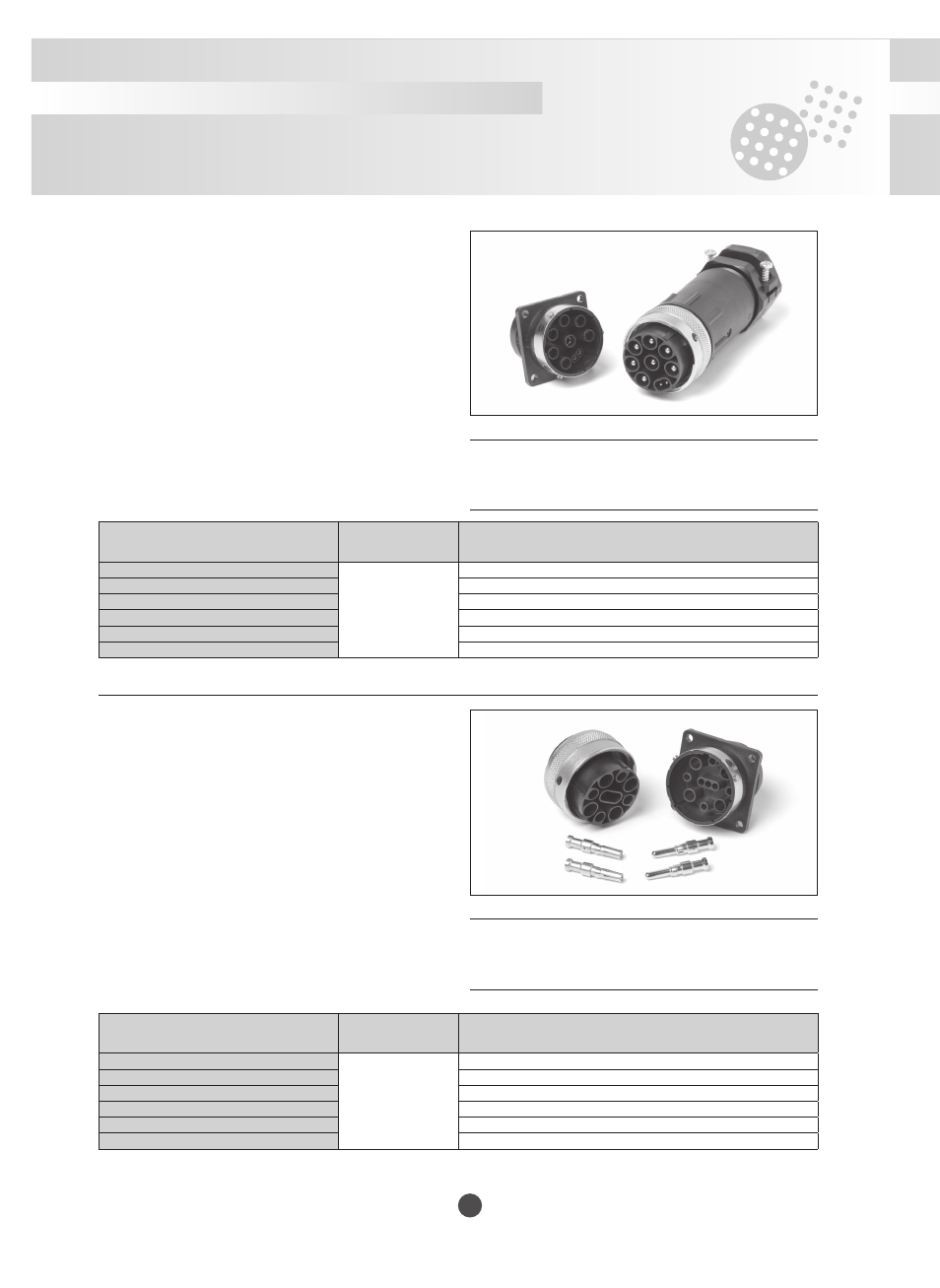

UTG size 24-11 with 4 power &
7 standard TRIM TRIO contacts.
Description
UTG size 24-11 is a standard shell size 24 connector with a
modified insert arrangement to accept
4 power contacts #8 (3.6mm) and
7 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #12 (2.4mm) for up to 26 Amp
• Per VDE 0110 (refer to technical drawings)
• For furtur characteristics, refer to UTG series and power contacts
8291 series..
Available part numbers:
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Part number Shell size Description
UTG02411P
24
Panel mount receptacle for pin contacts.
UTG02411PH Panel mount receptacle for pin contacts – IP65 waterprotection
UTG02411S (consult factory) Panel mount receptacle for socket contacts.
UTG02411SH (consult factory) Panel mount receptacle for socket contacts – IP65 waterprotection
UTG62411SN Cable plug connector for socket contacts.
UTG62411PN (consult factory) Cable plug connector for pin contacts.
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
UTG size 24-7 with 7 power &
2 standard TRIM TRIO contacts.
Description
UTG size 24-7 is a standard shell size 24 connector with a
modified insert arrangement to accept
7 power contacts #8 (3.6mm) and
2 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #8 (3.6mm) for up to 44 Amp
• VDE 0110 Group C – 660V.
• UL recognized file Nr.: E238675
• Central power cavity is advanced for grounding purposes.
• For furtur characteristics, refer to UTG series and power contacts
8291 series.
Available part numbers:
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Part number Shell size Description
UTG0247P
24
Panel mount receptacle for pin contacts.
UTG0247PH Panel mount receptacle for pin contacts – IP65 waterprotection
UTG0247S Panel mount receptacle for socket contacts.
UTG0247SH Panel mount receptacle for socket contacts – IP65 waterprotection
UTG6247PN Cable plug connector for pin contacts.
UTG6247SN Cable plug connector for socket contacts.
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
