37
Circular
mixed power/signal

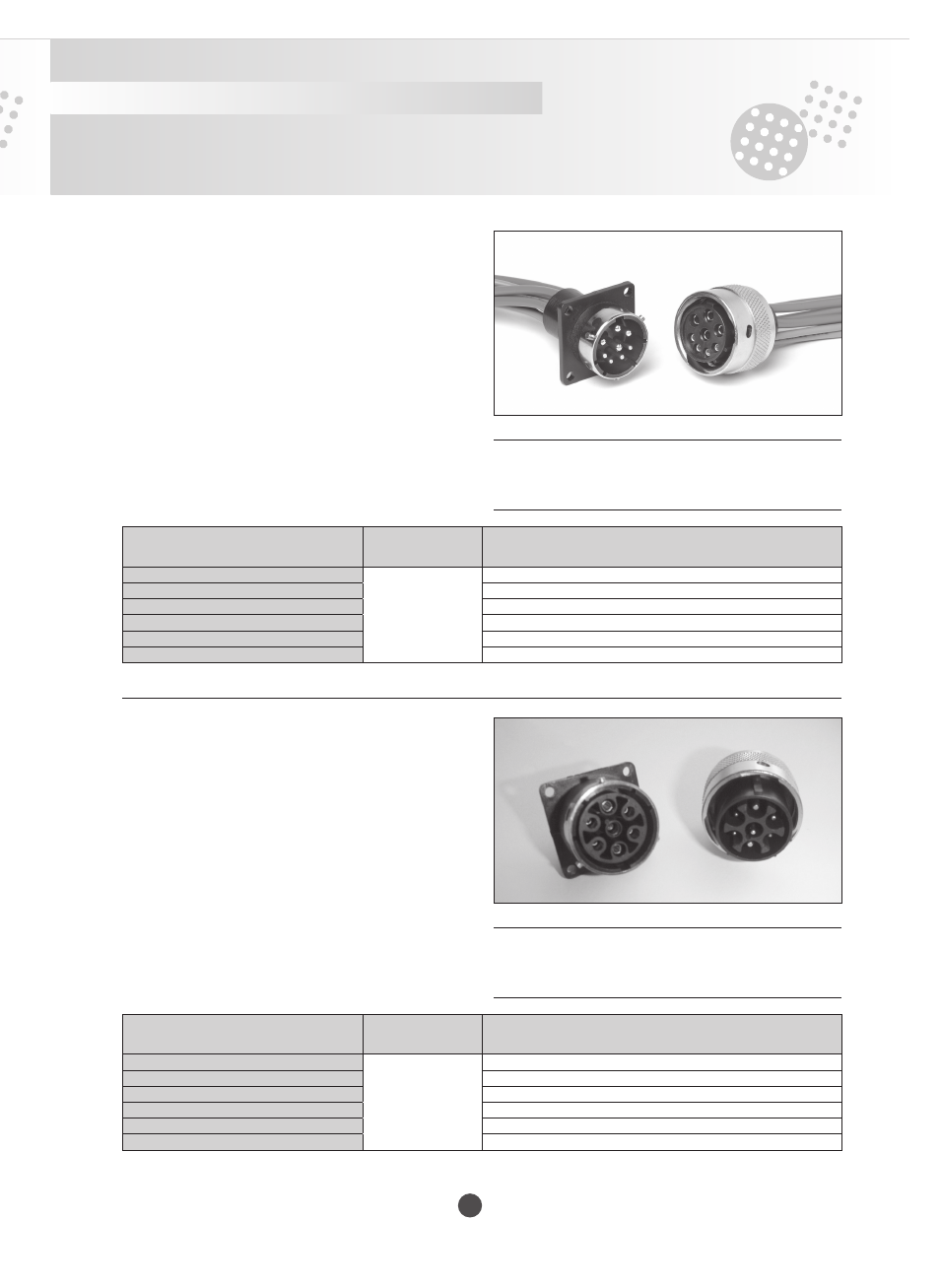

UTG size 14-8 with 4 power &
4 standard TRIM TRIO contacts.
Description
UTG size 14-8 is a standard shell size 14 connector with a modified
insert arrangement to accept
4 power contacts #12 (2.4mm) and
4 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #12 (2.4mm) for up to 26 Amp
• Per VDE 0110 (refer to technical drawings)
• For furtur characteristics, refer to UTG series and power contacts
8291 series.
Available part numbers:
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Part number Shell size Description
UTG0148P24PVDE
14
Panel mount receptacle for pin contacts.
UTG0148P24PHVDE Panel mount receptacle for pin contacts – IP65 waterprotection
UTG0148P24SVDE (consult factory) Panel mount receptacle for socket contacts.
UTG0148P24SHVDE (consult factory) Panel mount receptacle for socket contacts – IP65 waterprotection
UTG6148P24SNVDE Cable plug connector for socket contacts.
UTG6148P24PNVDE (consult factory) Cable plug connector for pin contacts.
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
UTG size 18-7 with 2 power &
5 standard TRIM TRIO contacts.
Description
UTG size 18-7 is a standard shell size 18 connector with a
modified insert arrangement to accept
2 power contacts #12 (2.4mm) and
5 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #12 (2.4mm) for up to 26 Amp
• Per VDE 0110 Group C – 380V.
• 2 mating levels.
• For furtur characteristics, refer to UTG series and power contacts
8291 series.
Available part numbers:
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Part number Shell size Description
UTG0187PVDE34
18
Panel mount receptacle for pin contacts.
UTG0187PHVDE34 Panel mount receptacle for pin contacts – IP65 waterprotection
UTG0187SVDE34 Panel mount receptacle for socket contacts.
UTG0187SHVDE34 Panel mount receptacle for socket contacts – IP65 waterprotection
UTG6187PNVDE34 Cable plug connector for pin contacts.
UTG6187SNVDE34 Cable plug connector for socket contacts.
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
