Circular
mixed power/signal

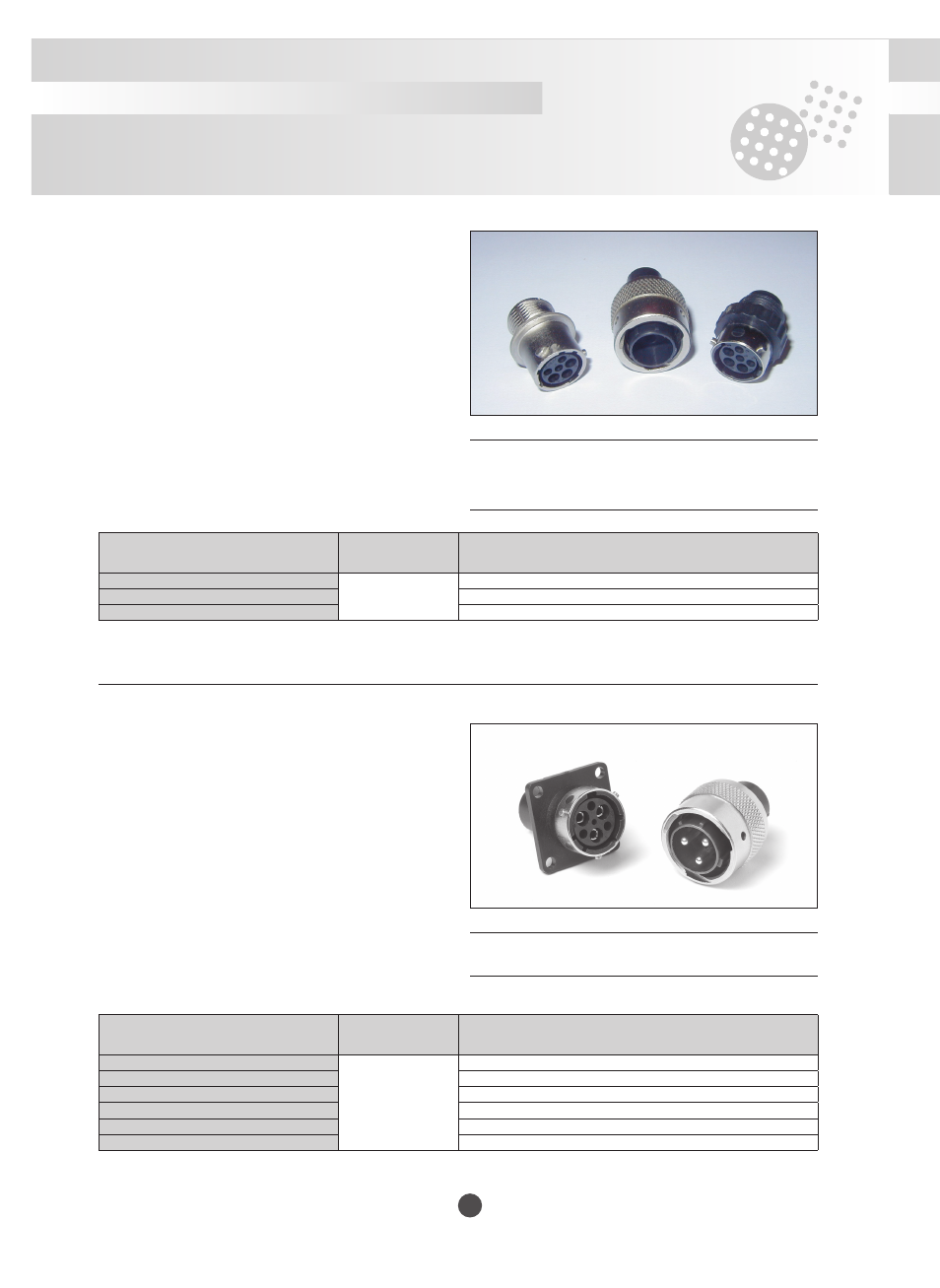

UT0/UTG size 10-3W3 with:
3 contacts #20 (1.0mm)
3 standard TRIM TRIO contacts
Description
UT0/UTG size 10-3W3 is a standard shell size 10 connector with a
modified insert arrangement to accept:
3 TRIM TRIO #20 (1.0mm) contacts
3 TRIM TRIO #16 (1.6mm) contacts
Typical performance characteristics
• For characteristics, refer to UTG/UT0 series and Contact sections
Available part numbers:
Contact accommodation
• #20 cavities accept the #20 TRIM TRIO size 16 crimptype
removable snap-lock contacts (see contacts section)
• #16 cavities accept the #16 TRIM TRIO crimptype removable
snap-lock contacts (see contacts section)
• Contacts to be ordered seperately.
Part number Shell size Description
UTG1103W3S
10
Free hanging receptacle for socket contacts
UTG6103W3PN Cable plug connector for pin contacts
UT01103W3SH6 Metal free hanging receptacle for socket contacts
For dimensions or others characteristics, refer to section UTG/UT0 with corresponding shell size or refer to the technical drawings
UTG size 12-3 with 3 power
contacts.
Description
UTG size 12-3 is a standard shell size 12 connector with a modified
insert arrangement to accept
3 power contacts #12 (2.4mm).
It also offers 3 extra discrimination cavities that accept the
SMSPKE3 discrimination pins.
Typical performance characteristics
• Power contacts #12 (2.4mm) for up to 26 Amp
• For furtur characteristics, refer to UTG series and power contacts
8291 series.
Available part numbers:
Contact accommodation
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Part number Shell size Description
UTG0123S
12
Panel mount receptacle for socket contacts.
UTG0123SH Panel mount receptacle for socket contacts – IP65 waterprotection
UTG0123P (consult factory) Panel mount receptacle for pin contacts.
UTG0123PH (consult factory) Panel mount receptacle for pin contacts – IP65 waterprotection
UTG6123SN (consult factory Cable plug connector for socket contacts.
UTG6123PN Cable plug connector for pin contacts.
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
