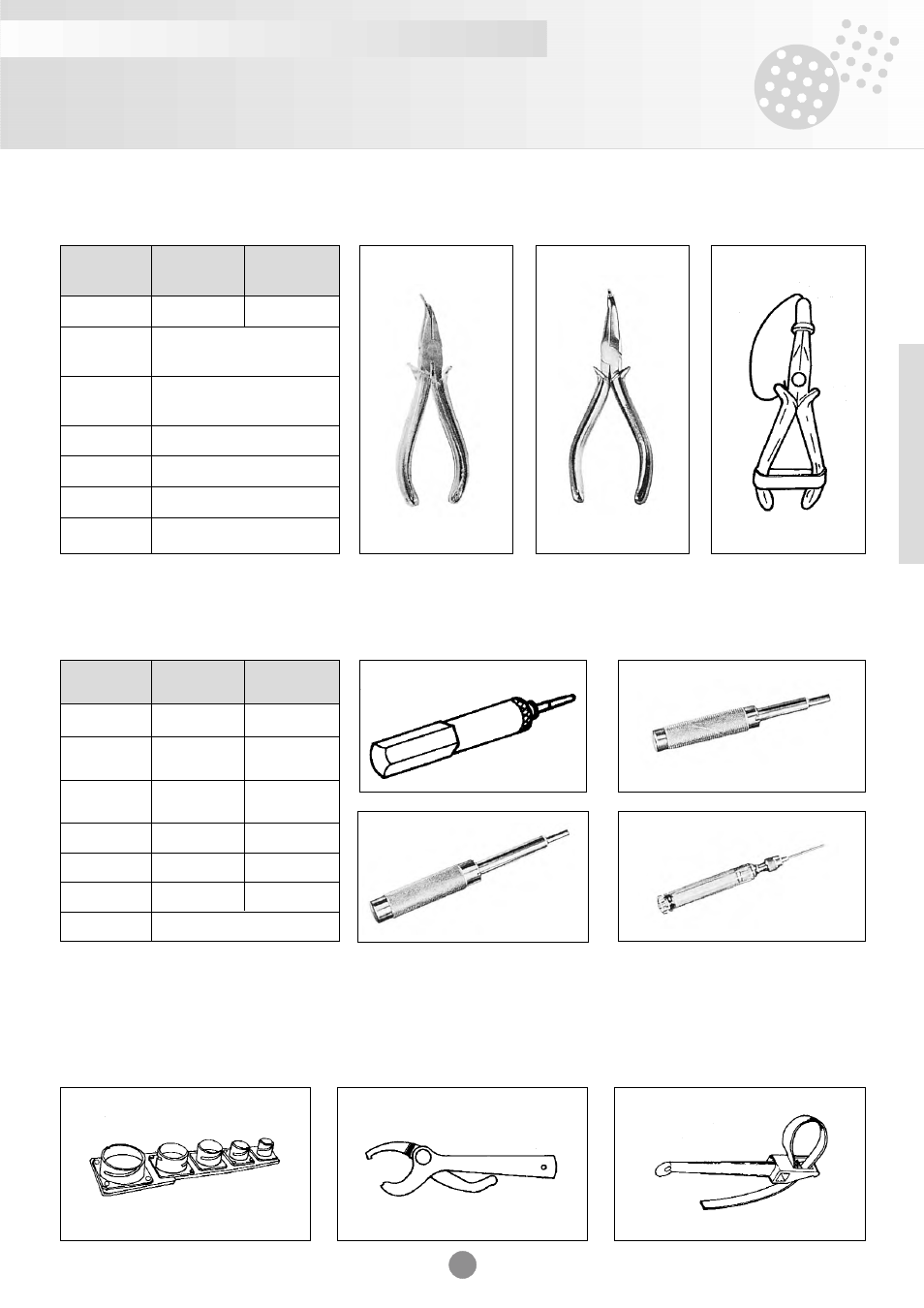

Page 10: Tightening support backshell spanner strap clamp

840 Series

Tightening support

Backshell spanner

Strap clamp

Contacts

Ш 1

Ш 1,5

small barrel

Ø 1,5

large barrel

Ш 2,5

Ш 3,5

Ш 5

Ш 10

Male

contacts

8500-31

8400-448

Female

contacts

8500-31

8400-446

8400-322

8400-980 A

manual extraction

Extraction tools

Note : for Ø 1 contact extraction from shell sizes 5 and 6 use tool part number 8310-31

Insertion tools

Contacts

Ш 1

Ш1,5

small barrel

Ø1,5

large barrel

Ш 2,5

Ш 3,5

Ш 5

Ш 10

Shells

5 and 6

8400-2071

Shells

1, 2, 3 and 4

8500-93 B

8400-482 A

8400-2129

To insert contact :

push in with wire

Ref. 8400-2071

Ref. 8400-482 A

Ref. 8500-93 A

Ref. 8400-446

Ref. 8400-322
Ref. 8400-980 A

Ref. 8500-31

Ref. 8400-448

Ref. 8400-52

Ref. 8400-447

Ref. 8498-04
