Technical characteristics

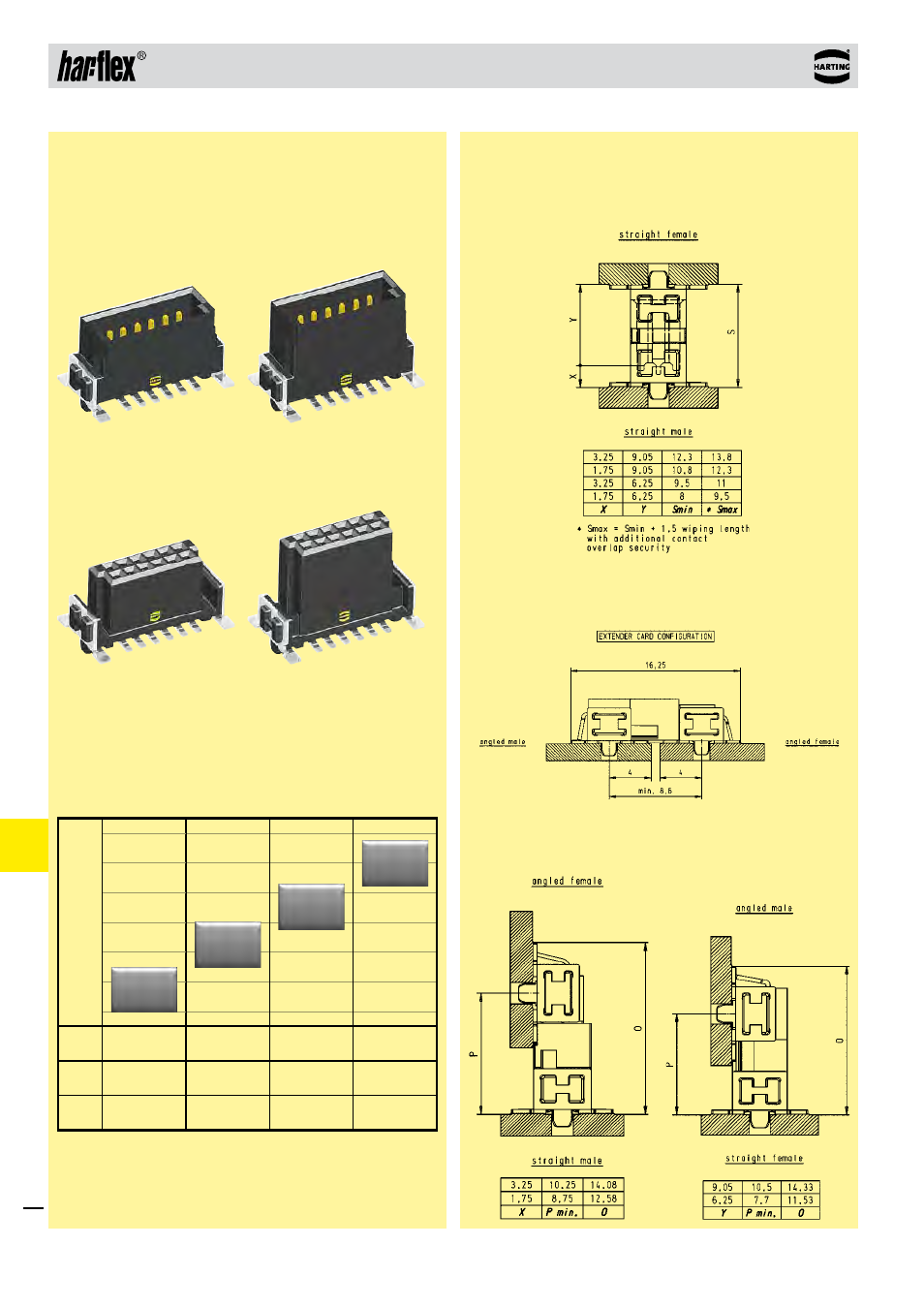

Stacking heights of straight connector versions
The
har-flex ® connectors cover mezzanine applications with a
range of straight versions for four different stacking heights that
can be used to interconnect PCBs arranged in parallel stacks
with spacing between 8.0 mm and 13.8 mm.
Male 1.75 mm Male 3.25 mm
Female 6.25 mm Female 9.05 mm
Due to the wiping lengths of 1.5 mm, these four connectors
cover the distance of 8 mm to 13.8 mm continuously.
Mating options
Mezzanine connection
Extender Card connection
Mother-to-Daughtercard connection
14 mm
13 mm
12 mm
11 mm
10 mm
9 mm
8 mm
stacking
heights
male 1.75 mm
female 6.25 mm
male 3.25 mm
female 6.25 mm
male 1.75 mm
female 9.05 mm
male 3.25 mm
female 9.05 mm
PCB
distance
8 mm -
9.5 mm 9.5 mm -
11 mm
10.8 mm -
12.3 mm 12.3 mm -
13.8 mm
part
numbers
15 11 …
15 21 …
15 12 …
15 21 … 15 11 …
15 22 …
15 12 …
15 22 …
