DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 55

1

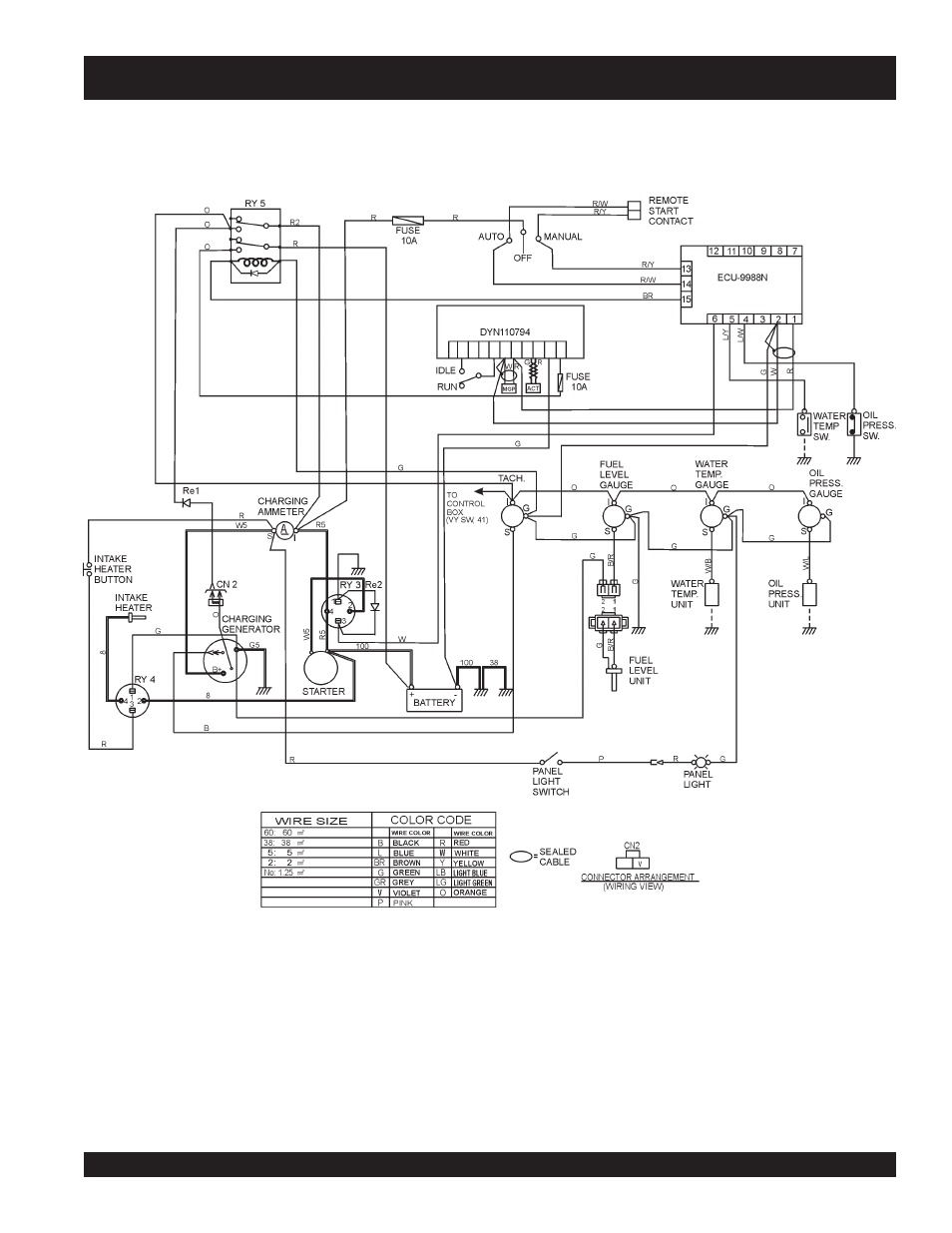

DCA-70SSJU SERIES — ENGINE WIRING DIAGRAM (WITH CONTROLLER)

Figure 81. Engine Wiring Diagram (Controller)
