DCa45SSIU4 60 hz generator • operatIon anD partS manUal — rev. #1 (10/24/13) — page 13

DiMensiOns

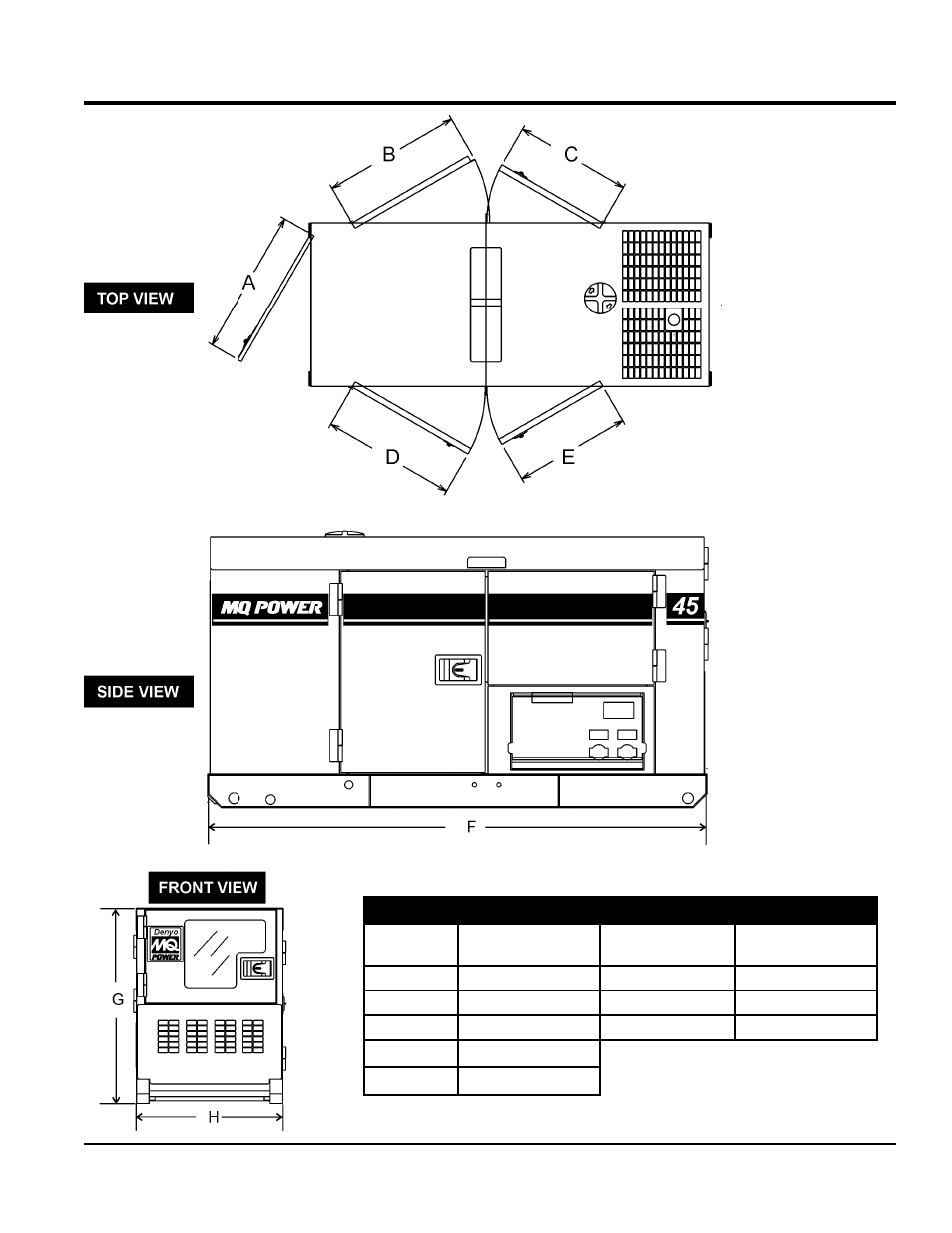

Figure 1. Dimensions

table 3. Dimensions

reference

letter

Dimension in. (mm)

reference letter

Dimension in. (mm)

A

30.31 in. (770 mm.)

F

76.38 in. (1,940 mm.)

B

25.00 in. (635 mm.)

G

49.21 in. (1,250 mm.)

C

29.05 in. (738 mm.)

H

35.43 in. (900 mm.)

D

24.21 in. (615 mm.)

E

29.05 in. (945 mm.)
