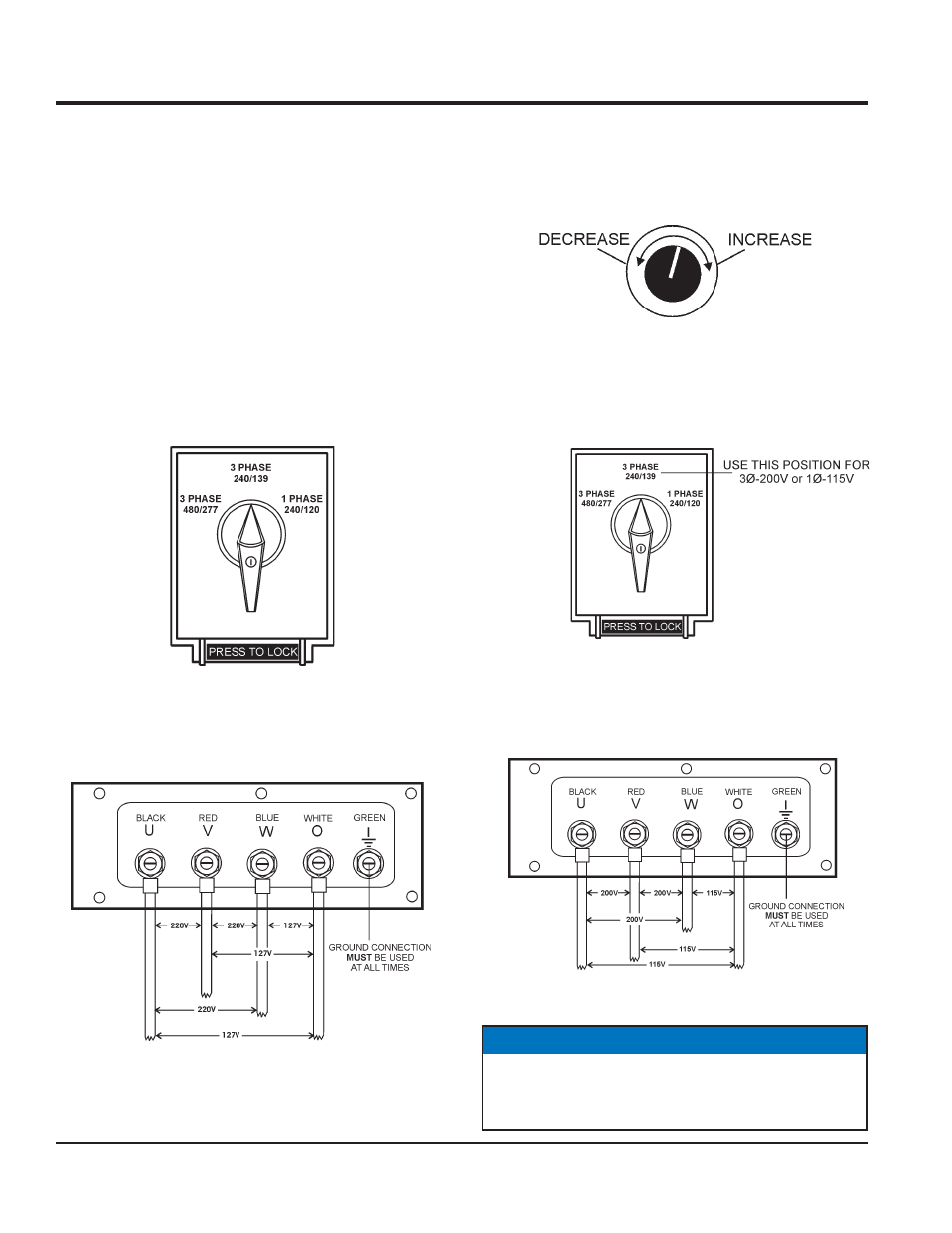

OUTPUT TERMINAL PANEL CONNECTIONS
UVWO TERMINAL OUTPUT VOLTAGES
Various output voltages can be obtained using the UVWO
output terminal lugs. The voltages at the terminals are
dependent on the position of the Voltage Selector Switch
and the adjustment of the Voltage Regulator Control
Knob.
Remember the voltage selector switch determines the
range of the output voltage. The voltage regulator (VR)
allows the user to increase or decrease the selected
voltage.
3Ø-220/127 UVWO Terminal Output Voltages
Place the voltage selector switch in the 3Ø 240/139 1.
position as shown in Figure 18..
Voltage Selector Switch Figure 18.
3Ø-240/139V Position
Connect the load wires to the UVWO terminals as 2.
shown in Figure 19.
UVWO Terminal Lugs Figure 19.
3Ø-220/127V Connections
Turn the voltage regulator knob (Figure 20) clockwise 3.
to increase voltage output, turn counterclockwise to
decrease voltage output. Use voltage regulator
adjustment knob whenever fi ne tuning of the output
voltage is required.
Voltage Regulator Knob Figure 20.
3Ø-200V/1Ø-115V UVWO Terminal Output Voltages
Place the voltage selector switch in the 3Ø 240/139 1.
position as shown in Figure 21.
Voltage Selector Switch Figure 21.
3Ø-240/139V Position
Connect the load wires to the UVWO terminals as 2.
shown in Figure 22.
UVWO Terminal Lugs Figure 22.
3Ш-200/1Ш-115V Connections Connections
NOTICE
To achieve a 3Ø 200V output the voltage selector switch
must be in the 3Ø-240/139 position and the voltage
regulator must be adjusted to 200V..
