DCa40sskU/kU4i 60 hz generaTor • operaTion anD parTs manUal — rev. #1 (03/11/13) — page 13

diMensiOns

40

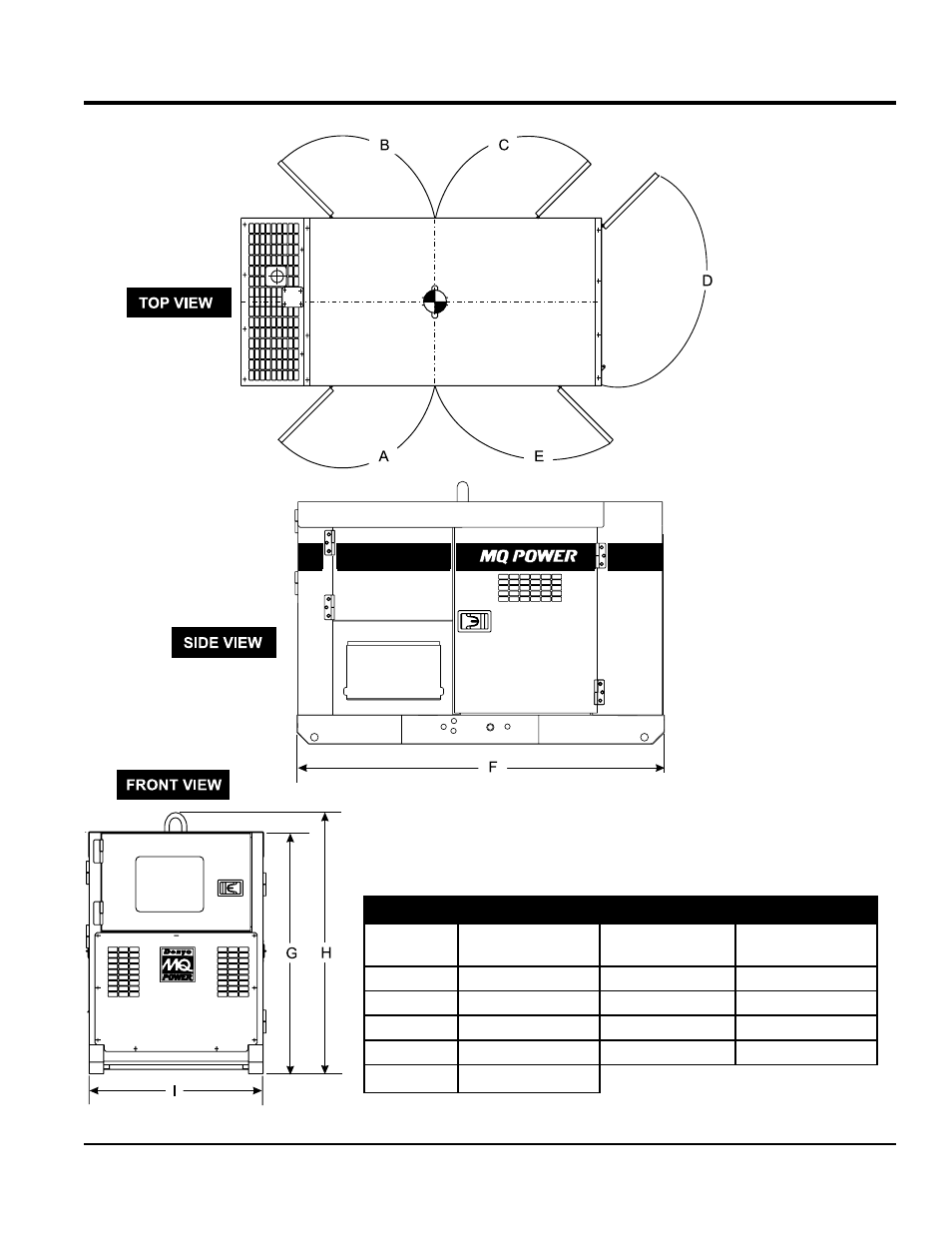

Figure 1. Dimensions

Table 3. Dimensions

reference

letter

Dimension in. (mm)

reference letter

Dimension in. (mm)

A

25.19 in. (640 mm.)

F

76.37 in. (1,940 mm.)

B

25.19 in. (640 mm.)

G

49.21 in. (1,250 mm.)

C

24.60 in. (625mm.)

H

52.91 in. (1,344 mm.)

D

32.28 in. (820 mm.)

I

37.40 in. (950 mm.)

E

24.60 in. (625 mm.)
