DCa45usi2 60 hz generator • operation anD parts manual — rev. #1 (06/12/14) — page 17
MaJOr cOMpOnEntS
1
2
3
4
5
45
45
1000 2000
3000 0 R P M
AUTO MANUAL OFF/RESET LOW OIL PRESSURE HIGH COOLANT TEMPERATURE OVERCRANK
OVERSPEED
ENGINE RUNNING
MOOOOO-20001Q
8
7
6

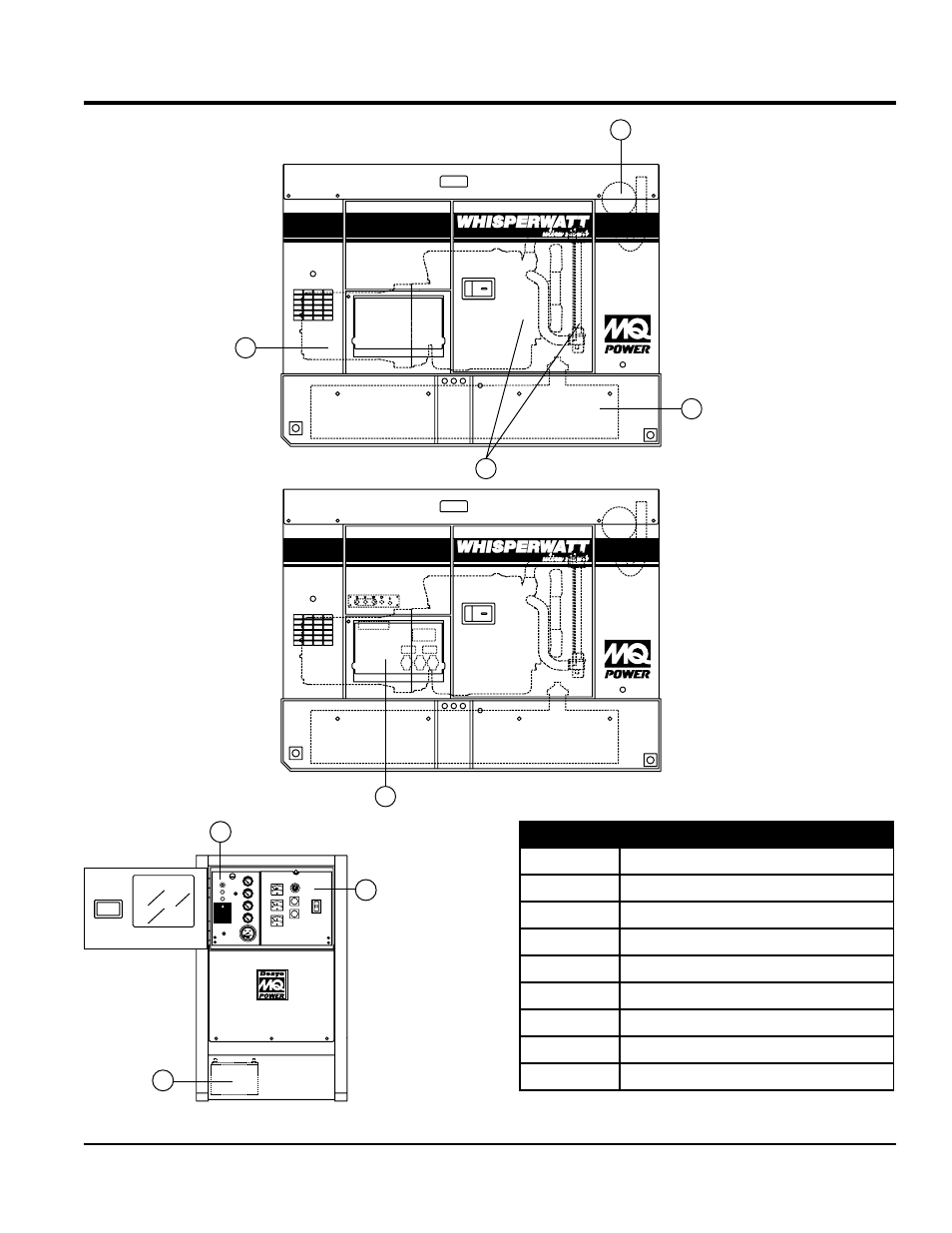

Figure 3. Major Components
table 4. generator major Components
item no. DESCRIPTION
1 Muffler Assembly
2 Fuel Tank Assembly
3 Engine and Radiator Assembly
4 Generator Assembly
5 Output Terminal Assembly
6 Engine Operating Panel Assembly
7 Generator Control Panel Assembly
8 Battery Assembly
