DCa45usi2 60 hz generator • operation anD parts manual — rev. #1 (06/12/14) — page 13
DIMEnSIOnS
45
F
G
FRONT VIEW
SIDE VIEW
TOP VIEW
H
A
B
C
D
E

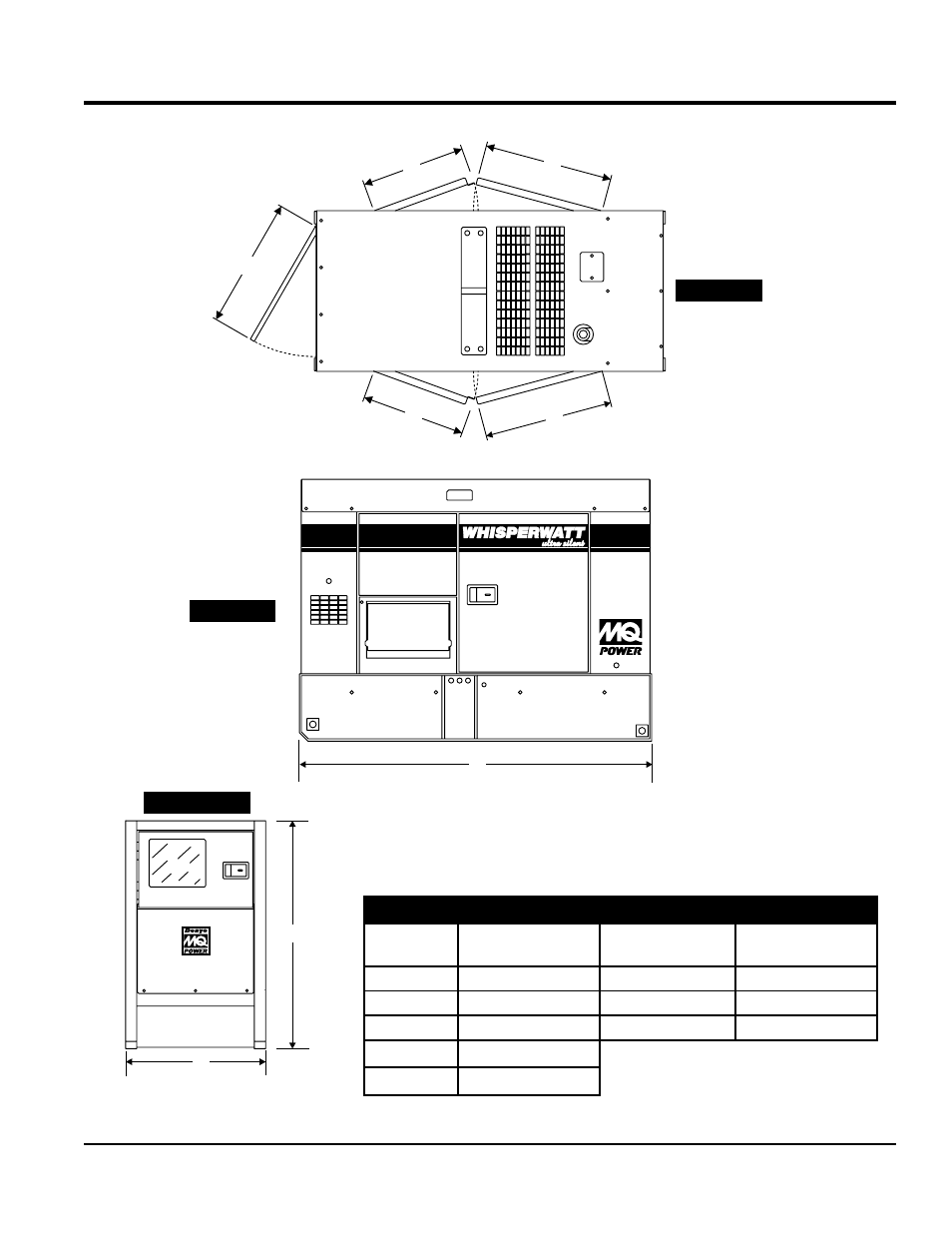

Figure 1. Dimensions
table 3. Dimensions
Reference
letter
Dimension in. (mm) reference letter Dimension in. (mm)
A 30.55 in. (776 mm.) F 83.07 in. (2,130 mm.)
B 24.37 in. (619 mm.) G 61.00 in. (1,550 mm.)
C 30.16 in. (766 mm.) H 37.40 in. (950 mm.)
D 30.16 in. (766 mm.)
E 24.37 in. (619 mm.)
