PAGE 30 — SP 1 SAW CE— OPERATION AND PARTS MANUAL — REV. #3 (06/09/08)

MQ STREET PRO 1 CE SAW — OPTIONAL WATER TANK

Place the Water Tank (with the hose assembled), onto the
Tank Shelf so the valve and hose are resting in the notch of
the top of the Tank Shelf. (Figure 27)

10. Place the Bungee Cord (item 4) over the Water Tank (item 14)

so it securely holds the tank onto the Shelf.

11. Disconnect the existing water hose from the saw blade guard

and connect instead, the new hose using the Swivel Connec-
tor. (item 5)

Remove the pre-existing water hose entirely or fasten it away
from any contact or interference with the blade or any moving
part.

CAUTION

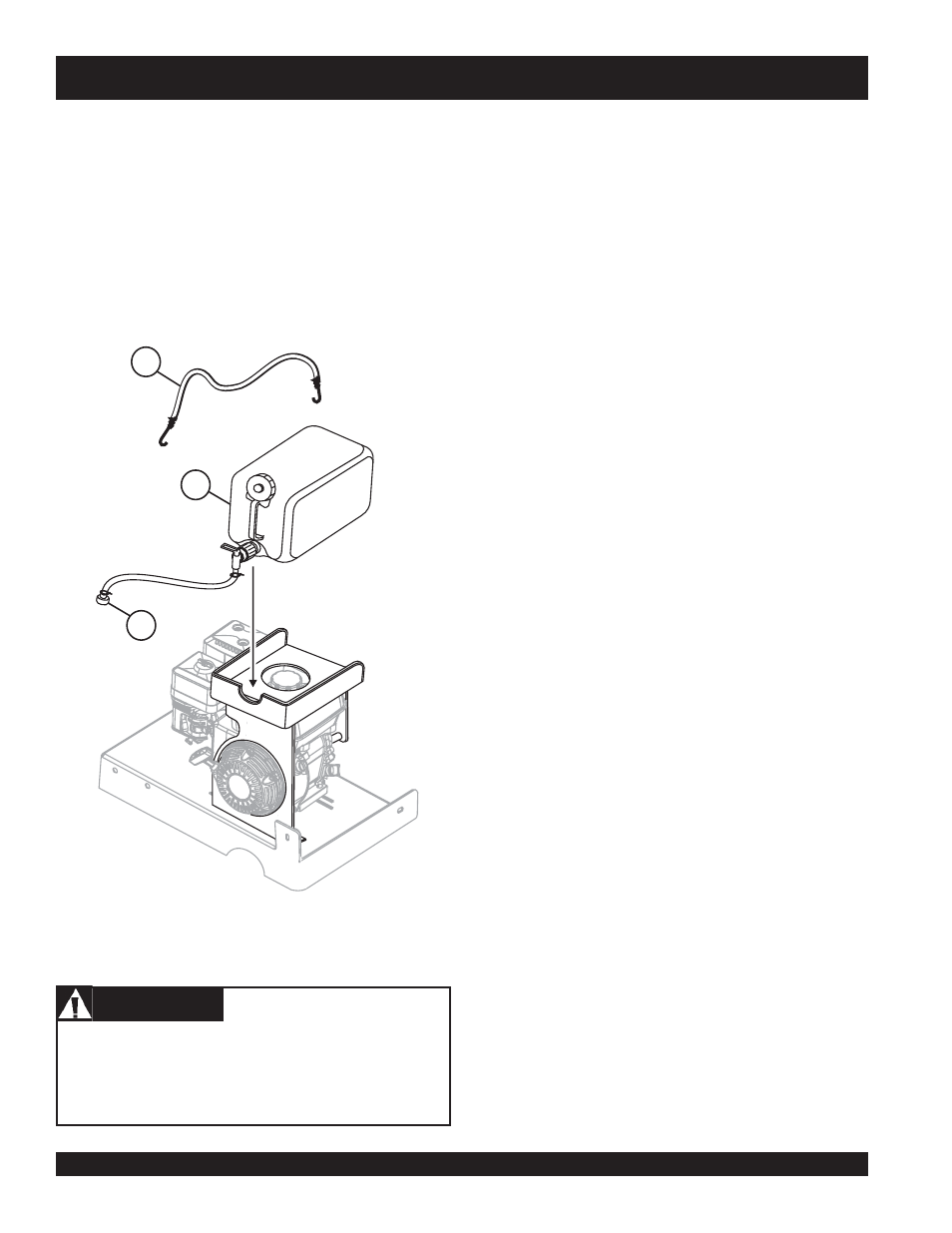

Figure 27. Water Tank Position
