PAGE 22 — SP 1 SAW CE— OPERATION AND PARTS MANUAL — REV. #3 (06/09/08)
MQ STREET PRO 1 CE SAW — RAISE/LOWER AND DEPTH STOP
Raise/Lower and Depth Stop
The saw is equipped with a Raise/Lower and Depth Stop
Assembly that is supported by the following components. (Figure
14)

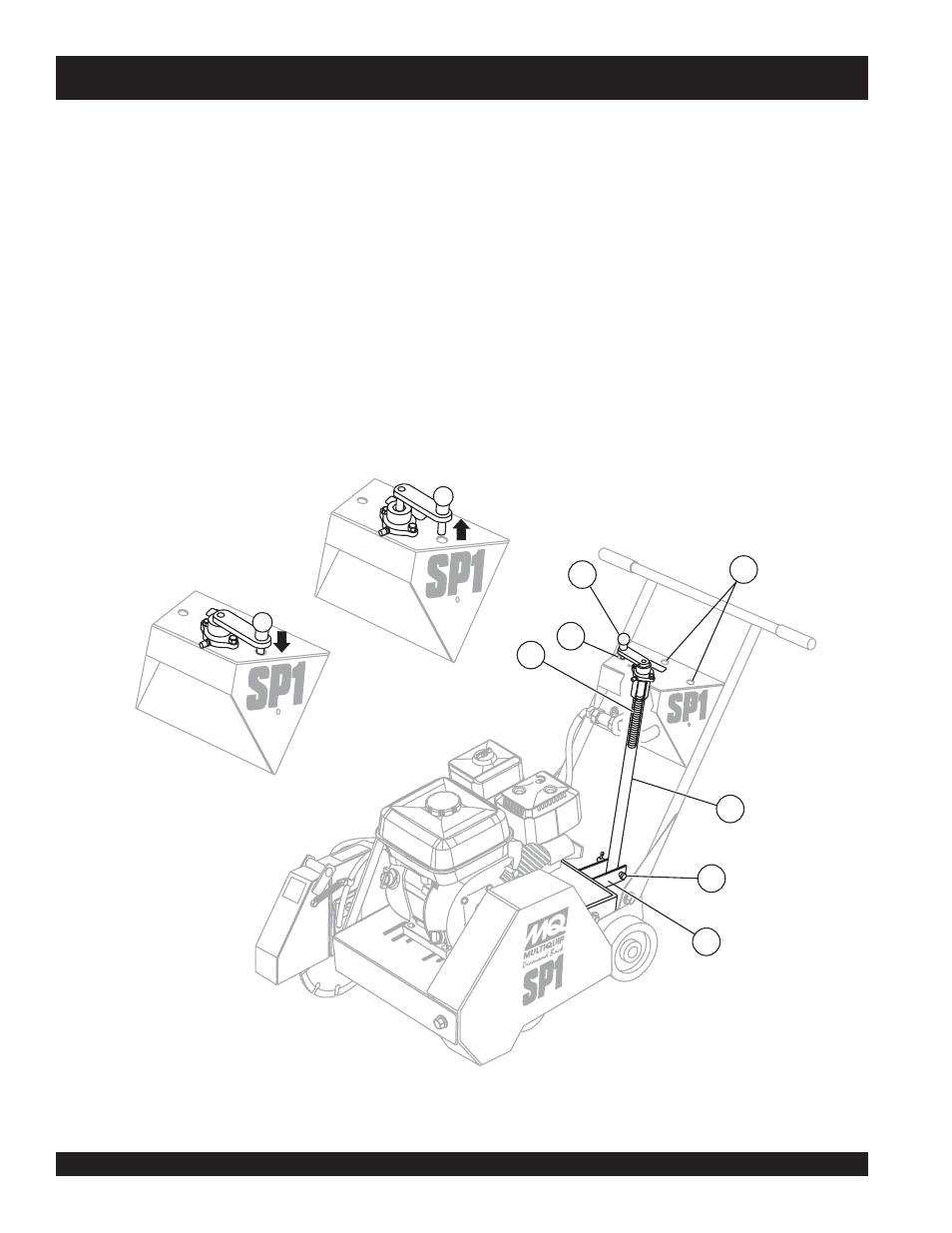

Figure 14. Cutting Depth - Raise/Lower System
1. Adjusting Hand Crank Assembly
2. Raise/Lower Acme Screw
3. Jack Arm
4. Wheel Base Assembly
5. Jackshaft Pin
6. Lock Positions
Setting the Depth Stop
1. Lift the Adjusting Hand Crank to unlock (disengage) the
Depth Stop.
2. Rotate the crank to raise or lower the blade to the desired
depth.
3. Lower the crank into one of the lock position holes (Item 6).
1
6
Locked
Position
Unlocked
Position
6
2
3
5
4
