PAGE 24 — HS62A CUT-OFF SAW — OPERATION & PARTS MANUAL — REV. #1 (07/26/10)

Reverse the

cutting arm

180 degrees as shown in the Figure

23, and re-tension the V-belt by turning the

belt tensioning

cam



. The V-belt should remain in tension.

Fully tighten the three nuts



that lock the V-belt into the proper

tensioning position.

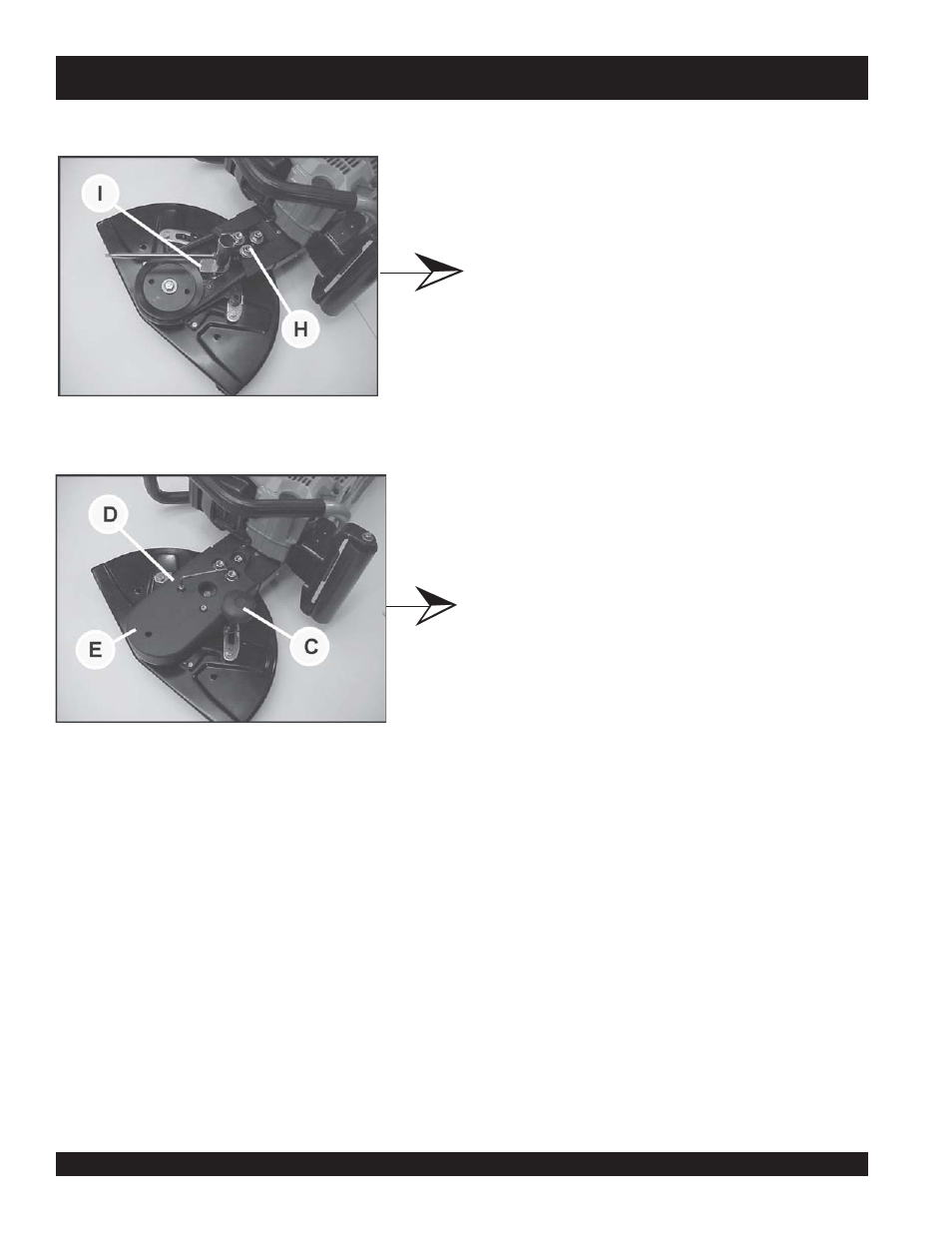

Figure 23. Reversing the Cutting Arm

Figure 24. Re-attaching Cover Guard

Re-attach the

cover guard



with the 2 cap screws



and reconnect the

guard adjustment knob



HS62A CUT-OFF SAW — MAINTENANCE

Reversing the Cutting Arm Procedure (continued)
