HS62A CUT-OFF SAW — OPERATION & PARTS MANUAL — REV. #1 (07/26/10) — PAGE 17
HS62A CUT-OFF SAW — WATER KIT INSTALLATION INSTRUCTIONS

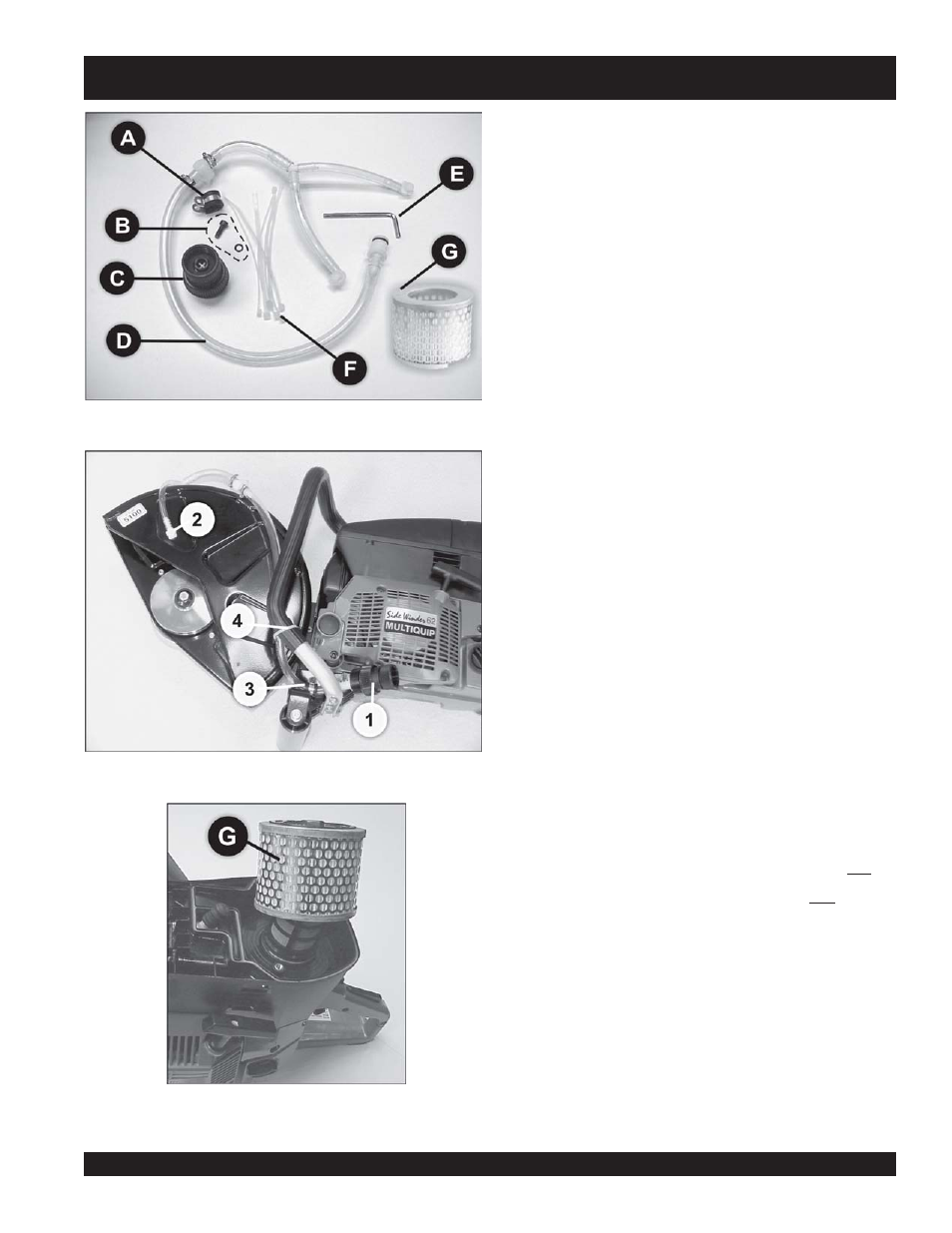

Figure 9. Water Kit Parts
Figure 10. Water Kit Assembly Points
Figure 11. Wet Air Filter Canister
Water Kit Installation Procedure
Connect the
Quick Disconnect Fitting
to the
single end of the
Water Hose
.
Snap fit the
Water Hose
Outlets
to the
Holes
in the
Blade Guard
. Orient the
Water Hose
through the
Front Handle.
Loop the
Hose Clamp
around the
Water Hose
and fasten the clamp to the
Roller Bar Support Arm
using the Socket Head Cap Screw w/ Washer
, and
Hex Key Tool
.
Use the
Plastic Ties
as preferred to further secure
the hose fittings and water hose to the saw.
When using the Water Kit option for your saw, the Dry
Air
Filter Canister
MUST be replaced with the Wet
Air Filter
Canister
(See Air Filter Kit Assembly in Parts
Section of this manual).
Contents of Water Kit
The contents of the Water Kit cannot be purchased seperately.
See Water Kit Assembly in Parts Section of this manual for
Water Kit part number.
Hose Clamp
Socket Head Cap Screw w/ Washer
Quick Disconnect Fitting
Water Hose
Hex Key Tool
(Included with Tool Kit)
Plastic Ties
Wet
Air Filter Canister
(Sold Seperately)
