Maintenance Instructions
To receive trouble-free service from your G-55H gasoline
vibrator, follow these instructions, as well as the instructions
contained in the engine operating manual, flexible shaft
operations manual and the vibrator head operations manual.
The 382V flexible shafting requires cleaning and lubrication
every 100 hours of operation. Refer to the flexible shaft
operation and parts manual for maintenance instructions.
Vibrator heads should be inspected and relubricated every
100 hours of operation.Refer to the vibrator head operation
and parts manual for maintenance instructions.
G-55H GASOLINE VIBRATOR — MAINTENANCE
Whenever assembling, lubricating, or adjusting any part
of the gasoline vibrator make certain to stop the engine,
disconnect the spark plug wire and secure it away from
the spark plug.
WARNING WARNING WARNING WARNING WARNING
Disabling the Engine
for Maintenance
Daily
■
Thoroughly remove dirt and oil from the engine and
control area. Clean or replace the air cleaner elements
as necessary. Check and retighten all fasteners as
necessary. Check the gearbox for oil leaks. Repair or
replace as needed.
Weekly
■ Remove the fuel filter cap and clean the inside of the
fuel tank.
■ Remove or clean the filter at the bottom of the tank.
Engine Oil
1. Drain the engine oil when the oil is warm as shown in
Figure 25.
2. Remove the oil drain bolt and sealing washer and allow
the oil to drain into a suitable container.
3. Replace engine oil with recommended type oil as listed
in Table 3. For engine oil capacity, see Table 2 (engine
specifications). DO NOT overfill.
4. Install drain bolt with sealing washer and tighten securely.

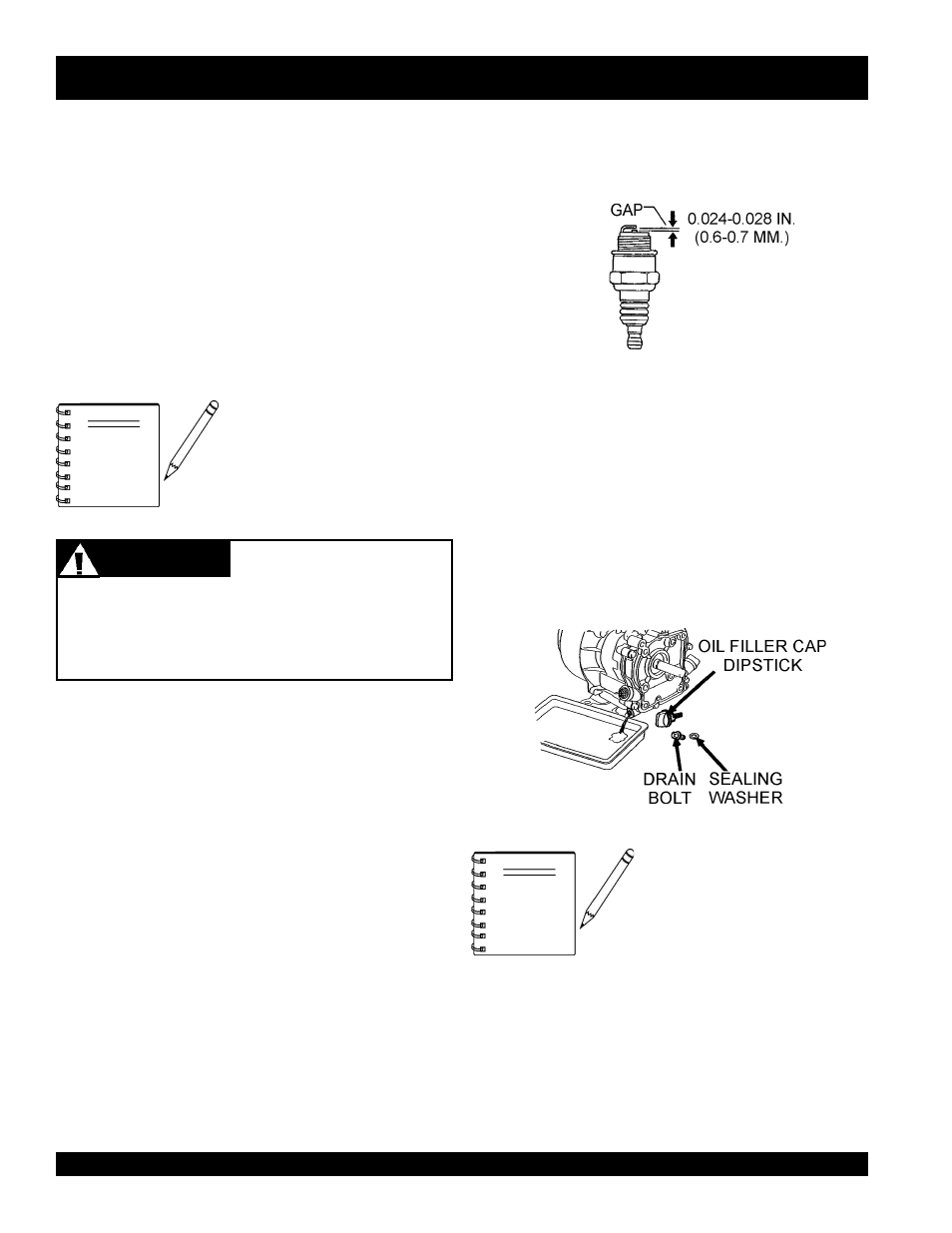

Figure 15. Spark Plug Gap
Figure 16. Engine Oil (Draining)
Dispose of used oil properly. DO
NOT pour used oil on the ground,
down a drain, or throw in the
trash.
Used oil can generally be taken to your local recycling center
or service station for reclamation. Follow all required
environmental rules and regulations required in your area
concerning the disposal of hazardous waste such as used
oil and oil filters.
NOTE
Heat should be used to break down
the loctite while you unthread the
head from the shaft. This will
prevent possible damage to the
threads from the loctite.
NOTE
■
Remove and clean the spark plug (Figure 24), then adjust
the spark gap to 0.024 ~0.028 inch (0.6~0.7 mm). This
unit has electronic ignition, which requires no
adjustments.
