diMensiOns

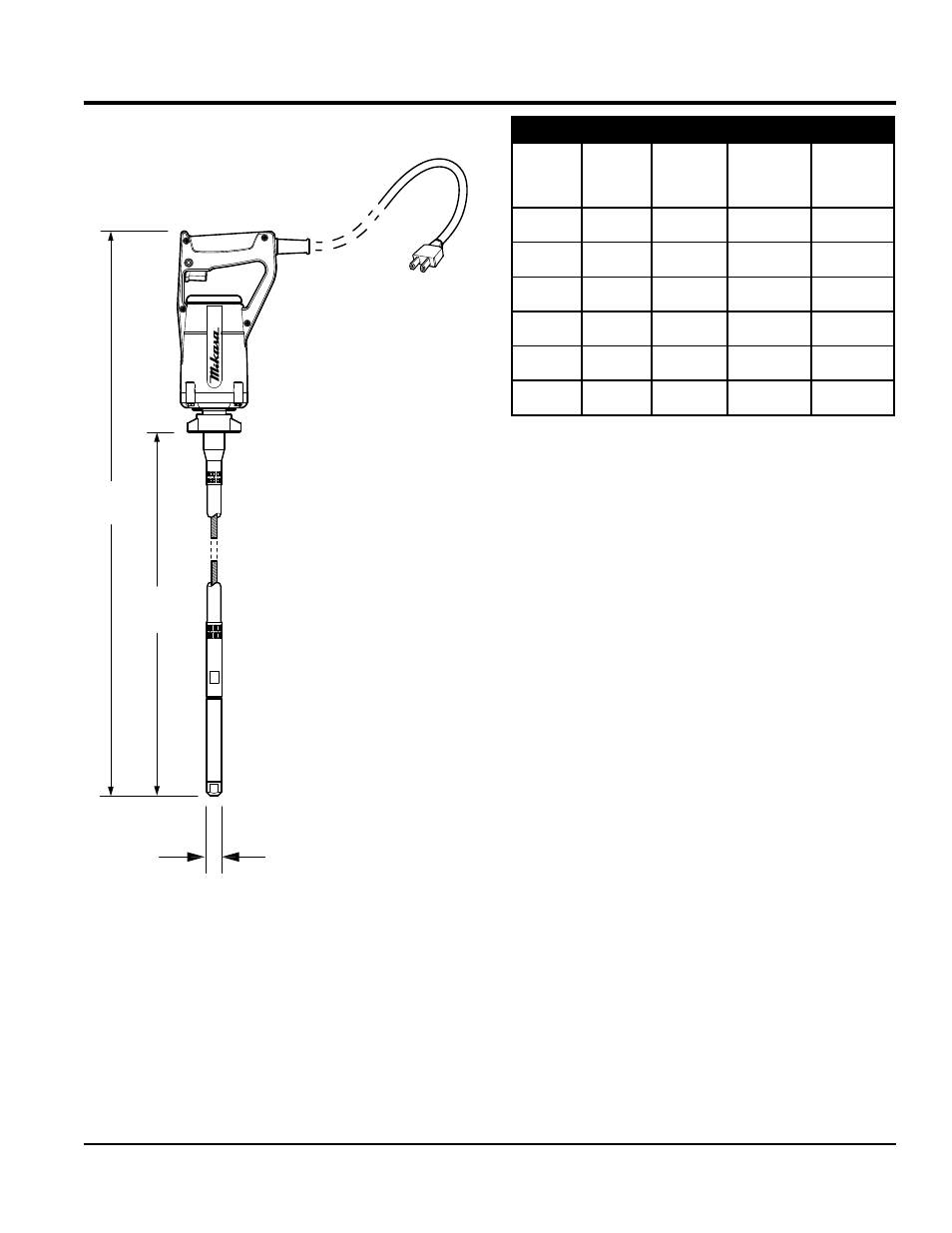

Figure 1. MGX Vibrator Dimensions
B
C
A
Table 3. dimensions
120 volt
Models
240 volt
Models
Head (a)
in. (mm)
Shaft
length (B)
ft. (m)
overall
length (C)
ft. (m)
MGX12325 MGX22325
.905
(23)
8.2
(2.5)
9.5
(2.9)
MGX12810 MGX22810
1.10
(28)
3.2
(1.0)
4.7
(1.4)
MGX12825 MGX22825
1.10
(28)
8.2
(2.5)
9.5
(2.9)
MGX13225 MGX23225
1.25
(32)
8.2
(2.5)
9.5
(2.9)
MGX13810 MGX23810
1.5
(38)
3.2
(1.0)
4.7
(1.4)
MGX13825 MGX23825
1.5
(38)
8.2
(2.5)
9.5
(2.9)
