J-SERIES TROWEL — MAINTENANCE
Trowel Arm Flatness Test
1. Using a piece of 3/4 inch thick steel plate or any surface which
is true and flat , check all six sides of each trowel arm for
flatness.
2. Check each of the six sides of the trowel arm (hex section
only) using a ten thousands of an inch (max.) feeler gauge
(Figure 46) between the flat of the trowel arm and an
ex -
tremely flat test surface.
3. If the trowel arm is found to be uneven or bent , replace the
trowel arm. A bent trowel will not allow the trowel to operate
in a smooth fluid rotation.
4. Next, check each of the six sides of the round machined shaft
section of the trowel arm. Each section should have the same
clearance between the round of the trowel arm shaft and the
test surface.

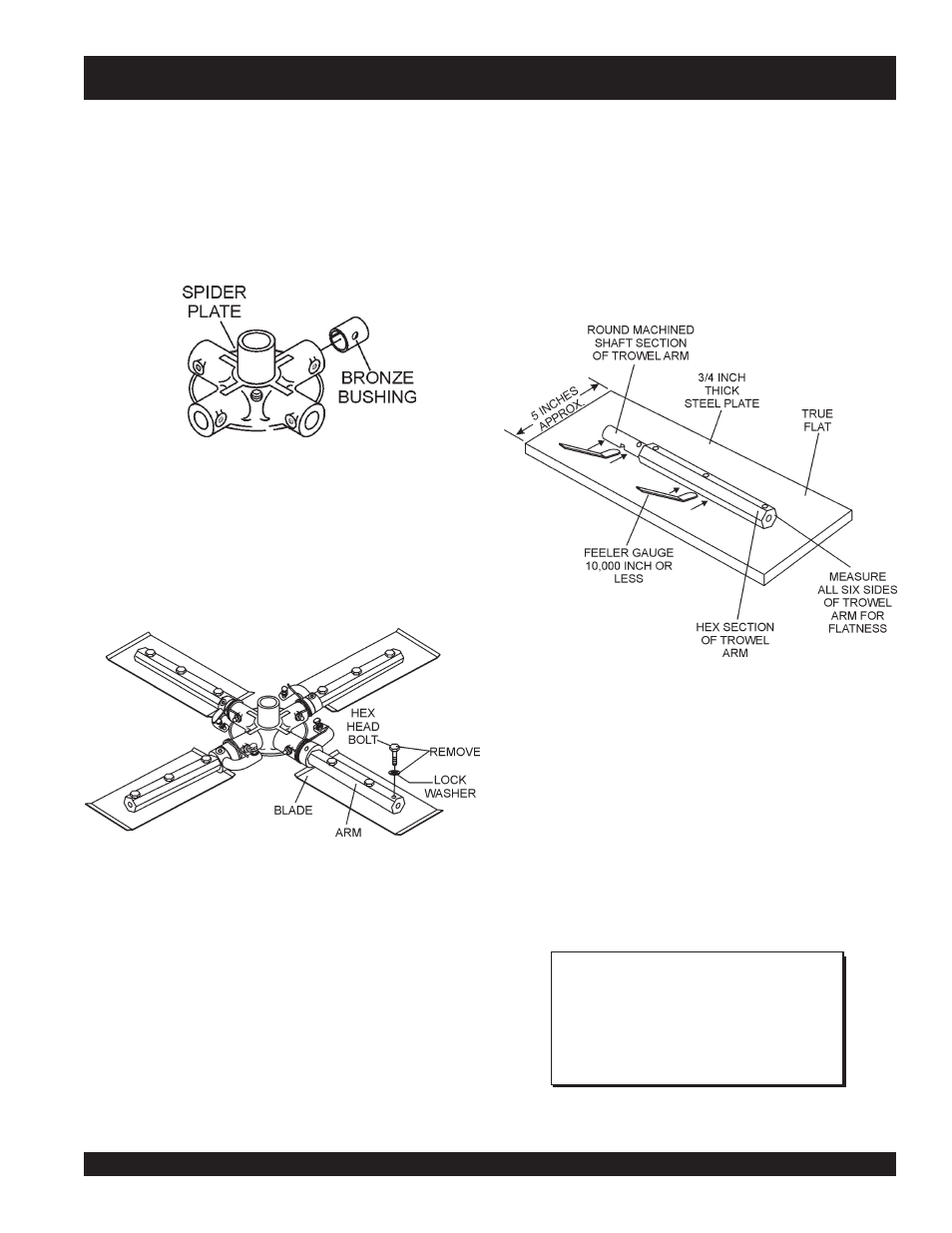

Figure 46. Trowel Arm Flatness Test
3. Should the trowel arm inserts (bronze bushing ) come out
with the trowel arm, remove the bushing from the trowel arm
and set aside in a safe place. If the bushing is retained inside
the spider plate, carefully remove the bushing.
4. Examine the bronze trowel arm bushing insert (Figure 44),
clean if necessary. Replace bushing if out of round or worn.
Figure 44. Bronze Bushings
Trowel Blade Removal
1. Remove the trowel blades from the trowel arm by removing
the three hex head bolts (Figure 45) from the trowel arm. Set
blades aside.
Figure 45. Trowel Blades
2. Wire brush any build-up of concrete from all six sides of the
trowel arm. Repeat this for the remaining three arms.
Trowel arms can be damaged by rough
handling or by striking exposed plumbing or
forms while in operation.
ALWAYS look-out
for objects which might cause damage to the
trowel arms.
