J-SERIES WALK-BEHIND POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #6 (09/30/10) — PAGE 21
J-SERIES TROWEL — ASSEMBLY AND INSTALLATION
2. On ROBIN engines, the hook-on the engine end of the
throttle wire must be removed. Make the cut as shown in
Figure 11. The
HONDA engine will not require this
modification to the throttle cable.

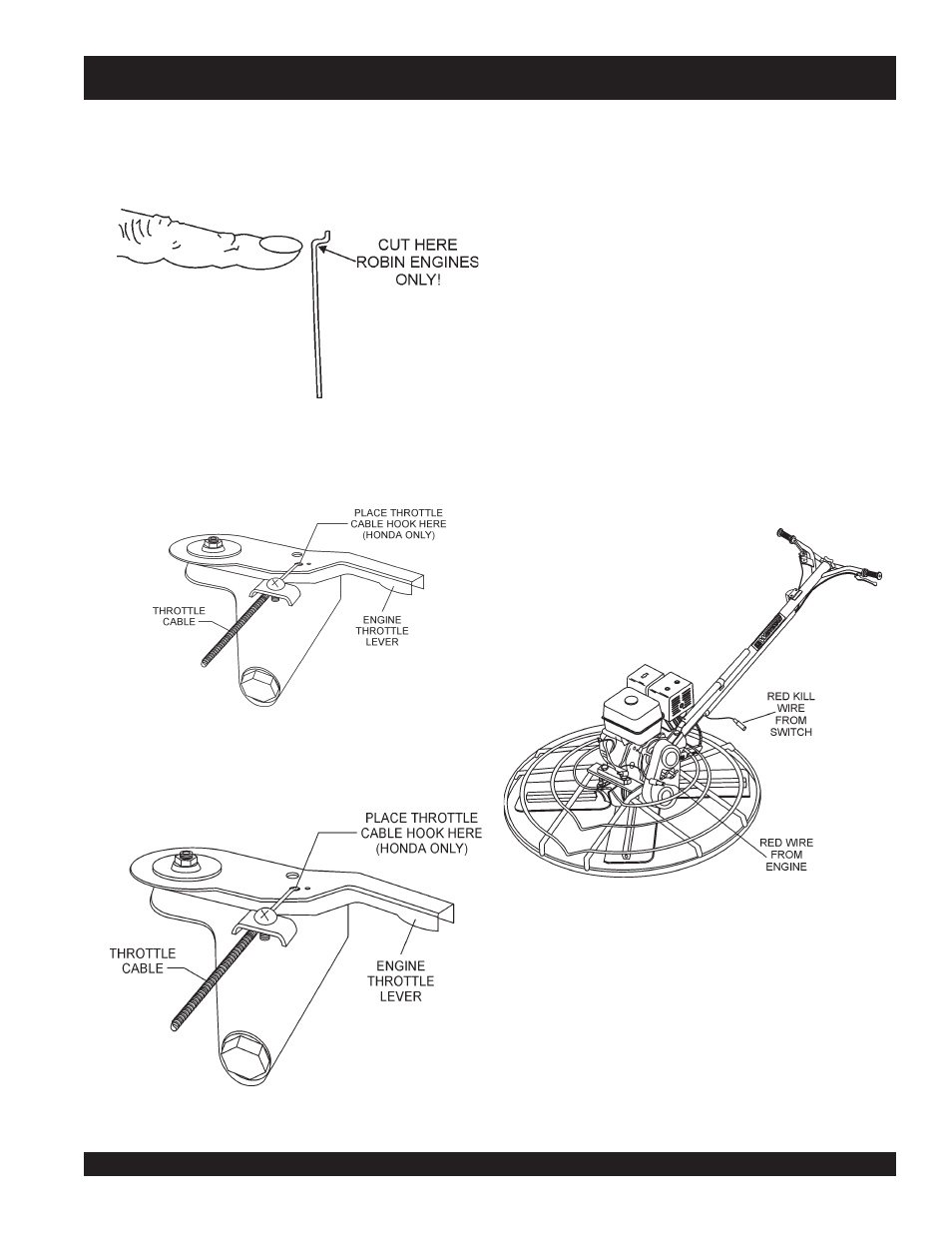

Figure 11. Throttle Wire Hook
4. Connect the throttle cable hook-on wire to the ROBIN engine
throttle lever as shown in Figure 13.
Figure 12. Throttle Cable Connection (HONDA)
Figure 13. Throttle Cable Connection (ROBIN)
3. Connect the throttle cable hook-on wire to the HONDA
engine throttle lever as shown in Figure 12.
Safety Kill Wire
Locate the RED wire protruding from the handle tube (Figure14)
and connect it to the RED tail wire on the engine. Test the kill
switch to insure proper operation.
Figure 14. Engine Kill Wire Connection
Handle Height Adjustment
If handle height adjustment is desired, a handle wedge kit can be
purchased for your trowel by ordering Part Number 2576 from
your Multiquip dealer. These wedges are placed between the
handle and the gearbox to adjust the operating height of the
handle. This kit comes complete with wedges, new bolts and
installation instructions. This will move your operating handle
position up or down approximately 3” (76mm).
5. Connect the throttle cable to the engine. Keep in mind there
should be a piece of wire installed on the trowel to show you
where to route the throttle cable. When connecting the cable
housing, make sure that no more than
1/4" (6.4mm) of the
cable housing protrudes past the housing clamp on the
engine (Step 4).
6. After the cable has been installed on the engine, tighten the
clamp on the throttle control, operator position of the handle
to lock the throttle cable at the proper length.
7. These are general instructions. Installation of the throttle
cable may vary for different engine configurations. Please
look for more detailed instructions inside the box containing
the handle. These more detailed instructions should provide
adequate guidance for installing.
