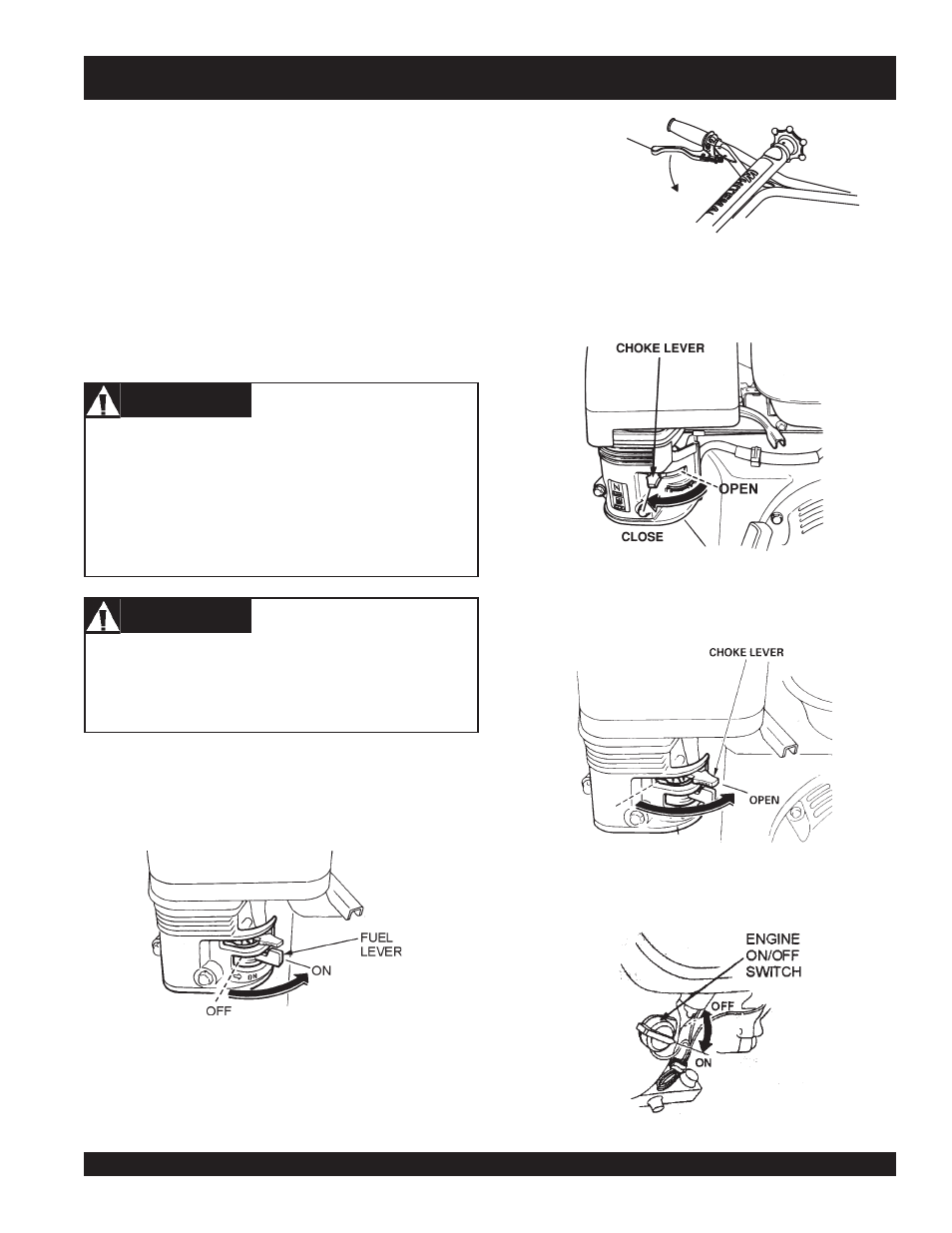

CA4HC WALK-BEHIND TROWEL — OPERATION MANUAL — REV. #0 (09/29/06) — PAGE 23
3. Place the choke lever (Figure 18) in the " CLOSED " position
if starting a cold engine.
CA4HC TROWEL — INITIAL START-UP
This section is intended to assist the operator with the initial
start-up of the walk-behind trowel. It is extremely important that
this section be read carefully before attempting to use the trowel
in the field.
DO NOT use your trowel until this section is thoroughly
understood
Starting the Engine
1. Place the engine fuel valve lever (Figure 16) to the "ON"
position.
Figure 16. Engine Fuel Valve Lever
Lifting the Trowel Onto a Slab
Extra care should be taken when lifting the trowel off the ground.
Serious damage to the machine or personal injury could be
caused by dropping a trowel.
Figure 19. Engine Choke Lever (Open)
Figure 18. Engine Choke Lever
5. Place the engine ON/OFF switch (Figure 20) in the " ON "
position.
Figure 20. Engine ON/OFF Switch
NEVER attempt to lift this machine alone. NEVER lift the
trowel by the guard ring as it may rotate and cause injry.
Use only the manufacturer's approved lifting points. The
trowel may be lifted at the center lifting bale by crane or other
lifting device of adequate capacity.
4. Place the choke lever (Figure 19) in the " OPEN " position if
starting a warm engine or the temperature is warm.
2. Place the trowel's throttle lever (Figure 17) to the "IDLE"
position.
Figure 17. Throttle Lever (Idle Position)
WARNING WARNING WARNING WARNING WARNING
DO NOT attempt to operate the trowel until the Safety,
General Information and Inspection sections of this manual
have been read and thoroughly understood.
CAUTION CAUTION CAUTION CAUTION CAUTION
IDLE
POSITION
THROTTLE
LEVER
