PAGE 20 — CA4HC WALK-BEHIND TROWEL— OPERATION MANUAL — REV. #0 (09/29/06)
4
5
1
3
7
6
2
Quick Pitch™ Handle Assembly
If your CA4HC TROWEL is equipped with a folding upper handle
(Figure 12), you will need to unfold and adjust the trowel handle
to the upright position prior to operation. It was assembled at the
factory and shipped in its folded or stowed position.
Considerable force may be
required when moving the
Quick Pitch
™ handle forward
or backward.
2. When folding the handle assembly, remember to move the
Quick Pitch ™ handle forward first to avoid stretching
the throttle cable.
NOTE
DO NOT operate unless T-Handle Knob is securely in place.
CAUTION CAUTION CAUTION CAUTION CAUTION

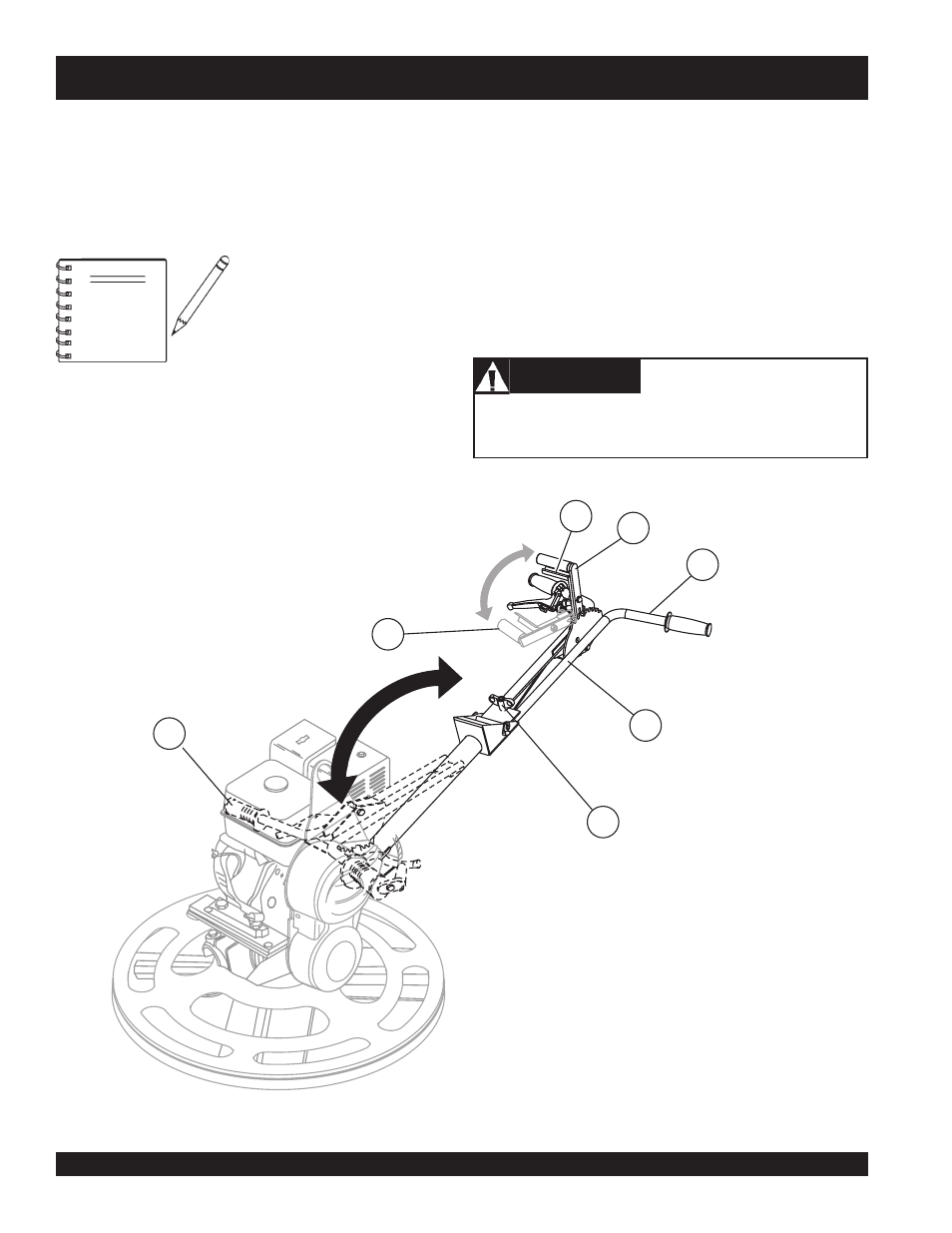

Figure 12. Trowel Folded and Operational Positions
CA4HC TROWEL— HANDLE ASSEMBLIES
Unfolding the Trowel for Operation
1. Make sure that the Quick Pitch™ handle has been
attached to the upper handle bar and the pitch control cable
has slack. Remove the
T-handle knob from the swing bolt
on the top side of the upper handle bar, by rotating the
knob counter-clockwise.
2. Move the Quick Pitch™ handle toward's the operator's
position and unfold the upper handle bar away from the
engine into the
upright position. Re-insert the swing bolt
so that it fits through the slot in the hinge plate. Turn the T-
handle knob counter-clockwise securely to hold upper
handle bar in place.
1 Operational Position
2 Upper Handle
3 T-Handle Knob
4 Quick Pitch Handle forward
when handle in folded position
5 Folded Position
6 Trigger Lock
7 Quick Pitch Handle
