GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 19
This HONDA engine is equipped
with a low oil shutdown capability. A
built in sensor will automatically turn
off the engine should the oil level fall
below a safe operating condition.
Make sure the generators is placed
on level ground. Placing the generators on level ground will
ensure that the low oil sensor will function properly.
NOTE
GA-6HE/GA-6HEA — CONTROLS AND INDICATORS
14. Fuel Cock Lever – Turn this lever downward to start
(down)the flow of fuel into the carburetor. Turn upward to
stop ( up ) the flow of fuel.
15. Spark Plug – Provides spark to the ignition system. Set
spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch) Clean
spark plug once a week.
16. Muffler/Heat Shield – Used to reduce noise and emissions.
NEVER touch this heat shield when the generator/welder
is in use. Always allow time for the generators to cool down
before performing maintenance.
17. Choke Lever – Used for starting the engine. Close the
choke lever when starting a cold engine or in cold weather
conditions. The choke enriches the fuel mixture.
Open the
choke lever if starting a warm engine or in warm weather
conditions.
18. Recoil Starter (pull rope) – Manual-starting method. Pull
the starter grip until resistance is felt, then pull briskly and
smoothly.
19. Engine Oil Filler Cap – Remove this cap/dipstick when
the adding of engine oil is required. See Table 5 for
recommended type engine oil.

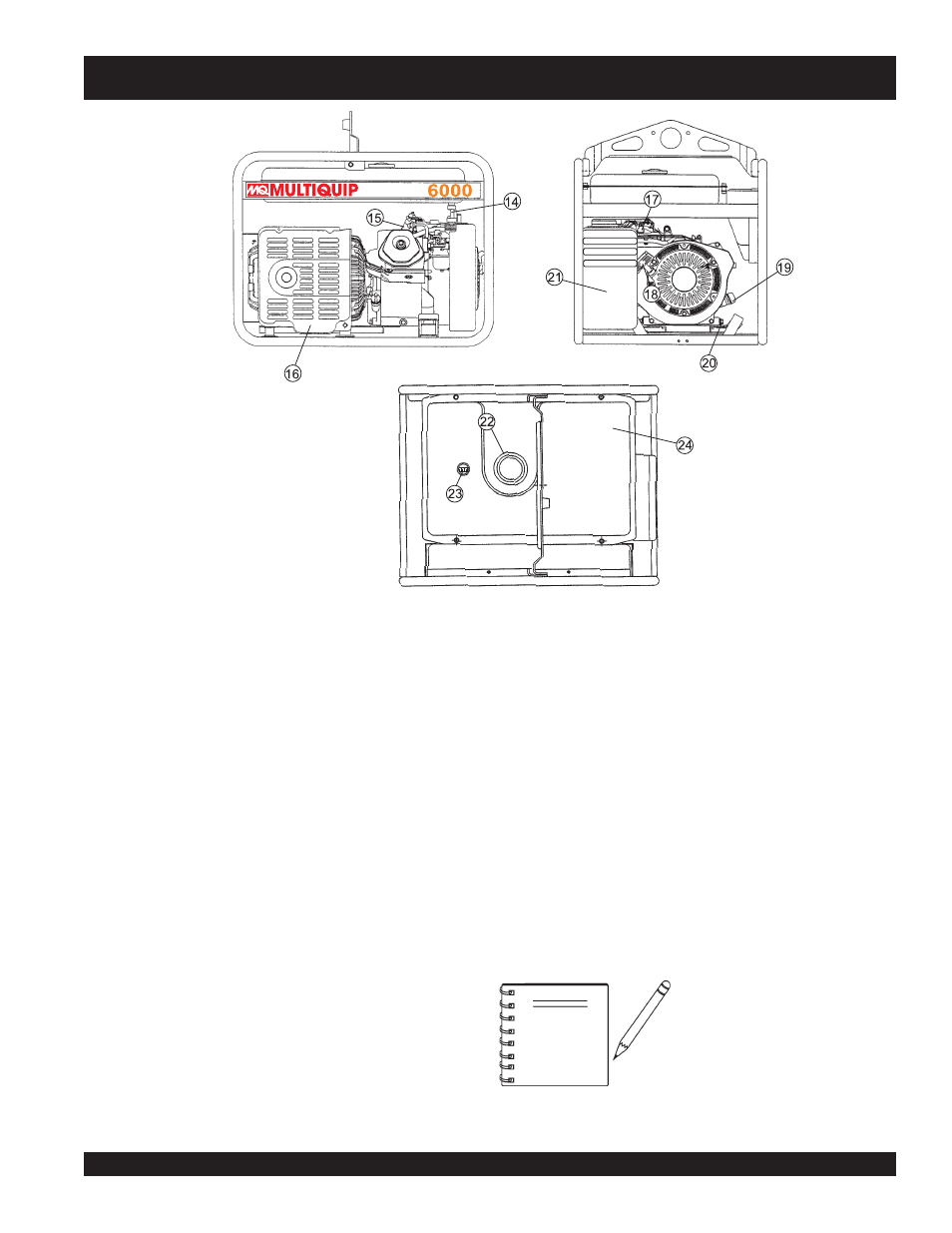

Figure 3E. Generator Components
20. Engine Oil Drain Plug – Remove this drain plug when
draining of the oil from the engine crankcase is required.
Fill with recommeded type oil as listed in Table 5.
21. Air Cleaner – Prevents dirt and other debris from entering
the fuel system. Remove wing-nut on top of air filter
cannister to gain access to filter element. NEVER run the
engine without an air cleaner.
22. Fuel Tank Cap – Remove this cap to add unleaded
gasoline to the fuel tank. Replenish with clean unleaded
gasoline. Make sure cap is tightened securely. DO NOT
over fill.
23. Fuel Gauge – This gauge is located on top of the fuel tank.
Read this gauge to determine when fuel is low .
24. Fuel Tank – Fuel tank capacity is 5 gallons (19 liters).
